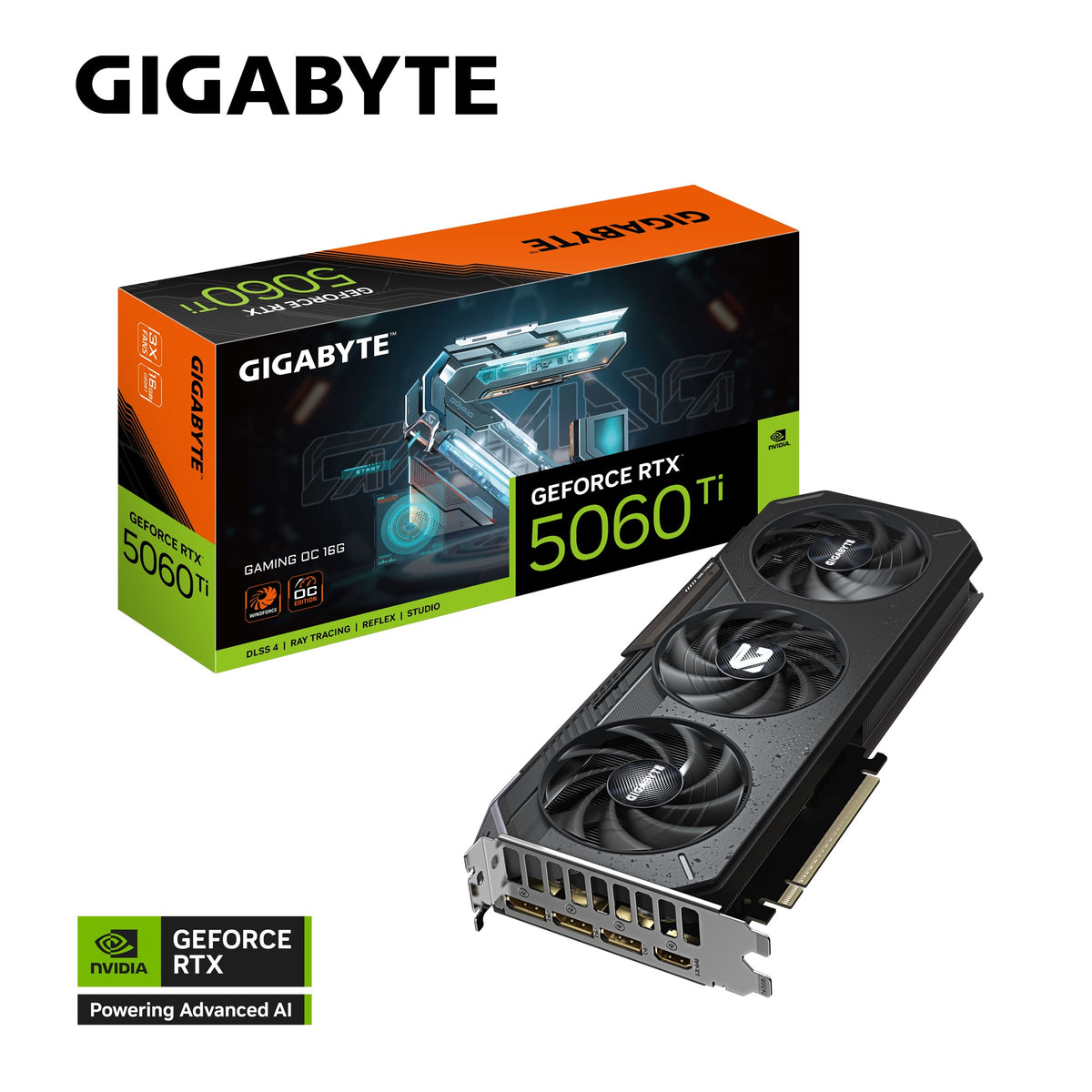

Gigabyte GeForce RTX 5060 Ti GAMING OC 16GB
Gigabyte GeForce RTX 5060 Ti GAMING OC 16GB
SKU:VCG-N506TGAMINGOC-16GD
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Video/Graphics Cards |
| SKU | VCG-N506TGAMINGOC-16GD |
| Availability | In Stock |
Overview
- The Gigabyte GeForce RTX 5060 Ti GAMING OC 16GB is a premium graphics card engineered for gamers and creative professionals who demand high performance and reliability. Powered by NVIDIA's Blackwell architecture, it delivers exceptional gaming performance and AI-enhanced features through DLSS 4, whilst the advanced WINDFORCE cooling system maintains optimal temperatures under sustained workloads.
With 16GB of GDDR7 memory and PCI-E 5.0 support, this card handles demanding games, 3D applications, and creative workflows with ease. The reinforced metal backplate, server-grade thermal materials, and dual BIOS modes ensure durability and flexibility for different use cases. Customisable RGB lighting and a striking armour-inspired design make it a standout component in any build.
The card requires a minimum 650W power supply and connects via a single 8-pin power connector. Multiple display outputs (three DisplayPort 2.1b and one HDMI 2.1b) support advanced multi-monitor configurations, making it suitable for both gaming and professional creative workstations.
Specifications
| Graphics Processor | NVIDIA GeForce RTX 5060 Ti |
|---|---|
| Memory Capacity | 16 GB |
| Memory Type | GDDR7 |
| Memory Interface | 128-bit |
| Memory Clock | 28 Gbps |
| Core Clock | 2647 MHz |
| Reference Core Clock | 2572 MHz |
| GPU Architecture | NVIDIA Blackwell |
| Card Bus Interface | PCI-E 5.0 |
| Maximum Resolution | 7680×4320 |
| Multi-View Support | 4 |
| DirectX Version | DirectX 12 |
| OpenGL Version | 4.6 |
| Output Connectors | DisplayPort 2.1b ×3, HDMI 2.1b ×1 |
| Power Connector | 8-pin ×1 |
| Recommended PSU | 650W |
| Card Dimensions | 281 mm (L) × 119 mm (W) × 40 mm (H) |
| Form Factor | ATX |
| Cooling System | WINDFORCE with Hawk fans and thermal conductive gel |
| Additional Features | Dual BIOS, RGB lighting, reinforced metal backplate |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What is DLSS 4 and how does it improve performance?
DLSS 4 is NVIDIA's deep learning technology that uses AI to upscale lower-resolution images to higher resolutions whilst maintaining visual quality. It significantly improves frame rates in supported games, allowing for better performance at higher resolutions and quality settings.
What power supply capacity do I need for this graphics card?
Gigabyte recommends a minimum 650W power supply. The card draws power via a single 8-pin connector. Your total system power requirements depend on your CPU and other components.
Can I use this card with older motherboards?
Yes, the RTX 5060 Ti is backward compatible with PCI-E 4.0 and earlier slots. However, you'll benefit from PCI-E 5.0's increased bandwidth if your motherboard supports it.
What is Dual BIOS and when should I use it?
Dual BIOS provides two firmware profiles: Performance mode for maximum GPU clock speeds, and Silent mode for quieter operation with lower thermals. You can switch between them using a physical switch or software.
How many monitors can I connect to this card?
You can connect up to 4 monitors simultaneously using the three DisplayPort 2.1b and one HDMI 2.1b outputs. Actual support depends on your operating system and driver configuration.
Is this card suitable for content creation and 3D rendering?
Yes, the RTX 5060 Ti supports CUDA and is compatible with professional rendering and creative applications including Adobe software, DaVinci Resolve, and industry-standard 3D tools.
What warranty coverage is included?
The card includes a 36-month manufacturer's warranty covering hardware defects and failures under normal use conditions.
