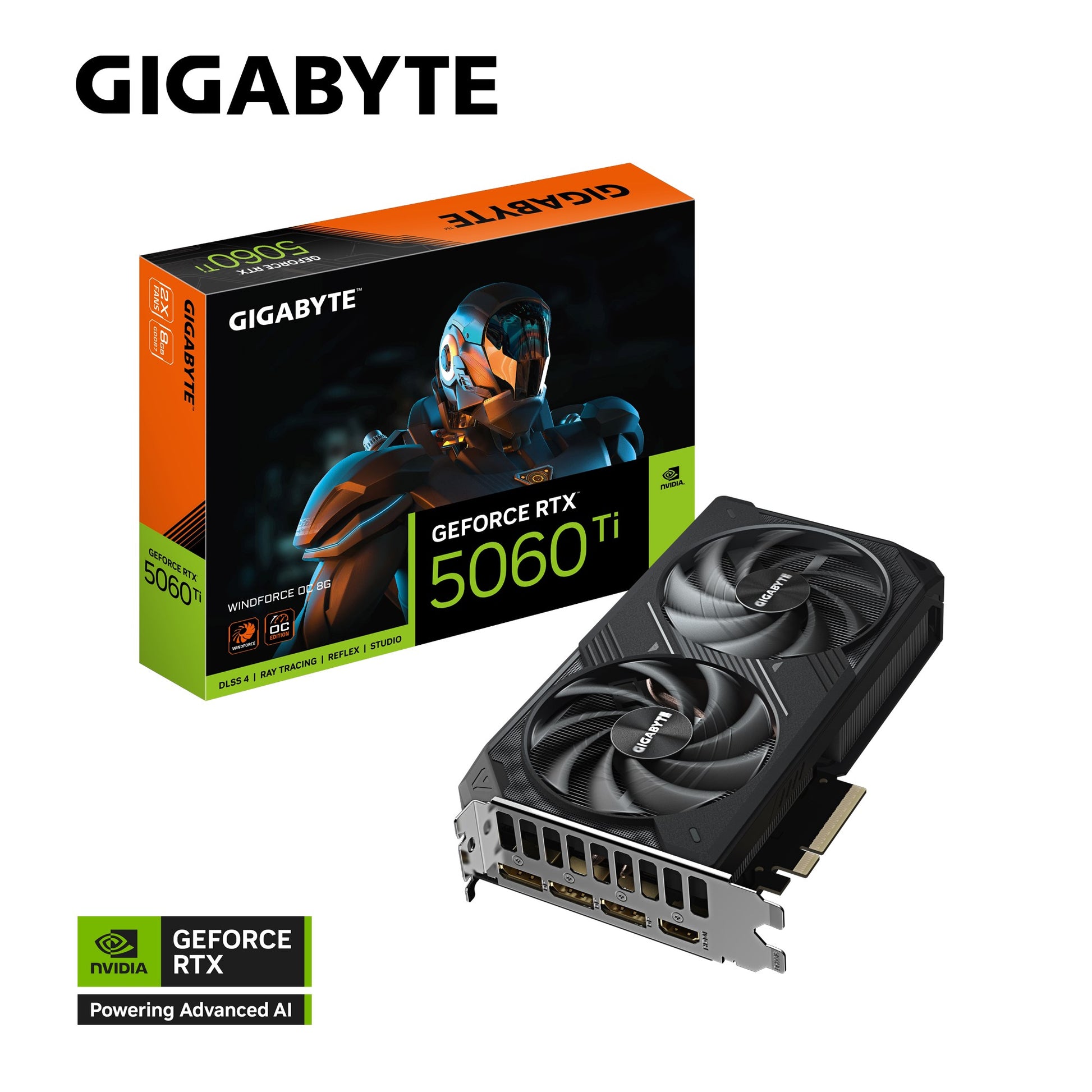

Gigabyte GeForce RTX 5060 Ti WINDFORCE OC 8G
Gigabyte GeForce RTX 5060 Ti WINDFORCE OC 8G
SKU:VCG-N506TWF2OC-8GD
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Video/Graphics Cards |
| SKU | VCG-N506TWF2OC-8GD |
| Availability | In Stock |
Overview
- The Gigabyte GeForce RTX 5060 Ti WINDFORCE OC 8G harnesses NVIDIA's latest Blackwell GPU architecture to deliver strong performance for gaming and professional applications. Built with 4608 CUDA cores and 8GB of GDDR7 memory, this card is engineered for smooth 1440p gaming and capable 4K performance, especially when paired with DLSS 4 for optimised frame rates.
The WINDFORCE cooling system is engineered for consistent thermal performance and quiet operation. Hawk fans use a unique blade geometry inspired by eagle-wing aerodynamics, reducing noise while maintaining high airflow pressure. Server-grade thermal conductive gel protects critical components like VRAM and power modules, ensuring long-term stability even under sustained loads.
With support for the latest ray-tracing and AI features, including Fifth-Gen Tensor Cores and neural shader optimisation, this card is suitable for both gaming enthusiasts and creative professionals. The reinforced backplate and robust construction provide confidence in reliability, backed by a 36-month warranty.
Specifications
| GPU | NVIDIA GeForce RTX 5060 Ti |
|---|---|
| GPU Architecture | Blackwell |
| CUDA Cores | 4608 |
| Core Clock | 2587 MHz |
| Memory | 8 GB GDDR7 |
| Memory Interface | 128-bit |
| Memory Speed | 28 Gbps |
| Bus Interface | PCI-E 5.0 |
| Max Digital Resolution | 7680×4320 |
| Multi-Display Support | 4 displays |
| Tensor Cores | Fifth-Generation |
| Ray Tracing Cores | Fourth-Generation |
| DirectX Support | DirectX 12 |
| OpenGL Support | 4.6 |
| Video Outputs | DisplayPort 2.1b (×3), HDMI 2.1b (×1) |
| Power Connectors | 8-pin (×1) |
| Recommended PSU | 650W |
| Card Dimensions | 208mm (L) × 120mm (W) × 40mm (H) |
| PCB Form Factor | ATX |
| Cooling System | WINDFORCE (Hawk fans, copper heat pipes, thermal gel) |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What is the power requirement for the RTX 5060 Ti WINDFORCE?
A 650W PSU is recommended. The card uses a single 8-pin power connector and is designed for efficient power delivery through PCI-E 5.0.
Does this card support DLSS technology?
Yes, the RTX 5060 Ti includes DLSS 4 support with Fifth-Generation Tensor Cores, enabling AI-assisted upscaling and frame generation for improved gaming performance.
What cooling technology does the WINDFORCE system use?
The WINDFORCE system combines Hawk fans with aerodynamic blade design, server-grade thermal gel on memory and power components, composite copper heat pipes, and 3D active semi-passive cooling that powers down fans during low-load scenarios.
What outputs does this card provide?
The card includes three DisplayPort 2.1b outputs and one HDMI 2.1b output, supporting up to 4 displays simultaneously at resolutions up to 7680×4320.
Is this card suitable for 4K gaming?
Yes, with 8GB GDDR7 memory and DLSS 4 support, it is capable of 4K gaming, particularly with image upscaling and frame generation enabled for smoother frame rates.
What is the warranty period?
The card includes a 36-month (3-year) manufacturer's warranty.
Can this card be used in creative and professional applications?
Yes, the Fifth-Generation Tensor Cores and Fourth-Generation Ray Tracing Cores support professional workflows including content creation, video editing, and rendering applications.
