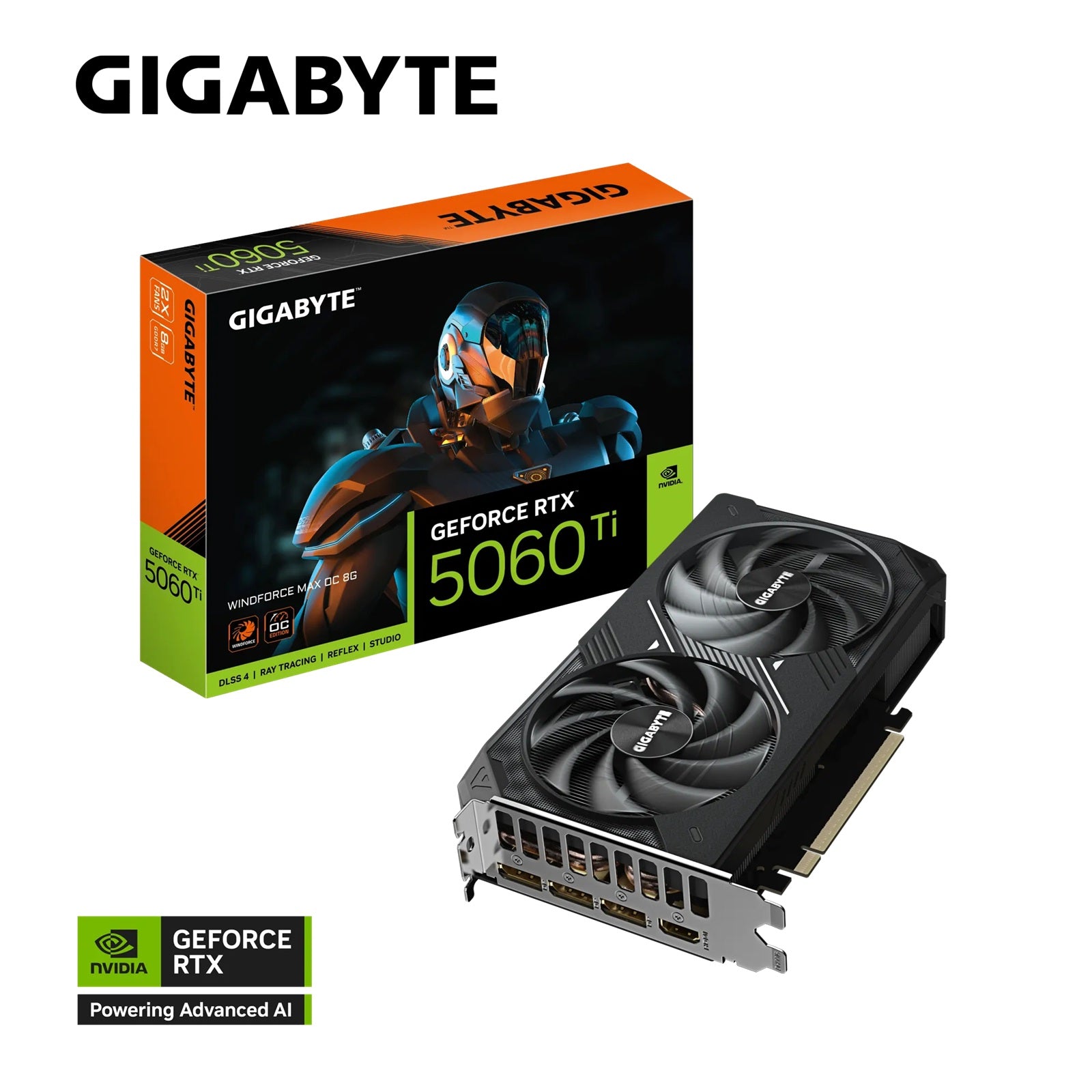

Gigabyte GeForce RTX 5060 Ti WINDFORCE MAX OC 8G
Gigabyte GeForce RTX 5060 Ti WINDFORCE MAX OC 8G
SKU:VCG-N506TWF2MAXOC-8GD
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Video/Graphics Cards |
| SKU | VCG-N506TWF2MAXOC-8GD |
| Availability | Out of Stock |
Overview
- The Gigabyte GeForce RTX 5060 Ti WINDFORCE MAX OC is a high-performance graphics card built on NVIDIA's Blackwell architecture. With 8GB of GDDR7 memory and factory-overclocked to 2587 MHz, it delivers exceptional performance for gaming, content creation, and professional workloads.
The card features Gigabyte's proven WINDFORCE cooling solution, incorporating a Hawk fan design and server-grade thermal conductive gel to maintain optimal temperatures under load. The reinforced structure ensures durability and longevity, while PCI-E 5.0 support provides maximum bandwidth for modern systems.
With support for DLSS 4, DirectX 12, and OpenGL 4.6, this card handles demanding applications with ease. The triple DisplayPort 2.1b and single HDMI 2.1b connectivity provide flexible multi-display options. A 650W PSU is recommended for stable operation.
Specifications
| GPU | NVIDIA GeForce RTX 5060 Ti |
|---|---|
| Architecture | NVIDIA Blackwell |
| CUDA Cores | 4608 |
| Boost Clock | 2587 MHz |
| Base Clock | 2572 MHz |
| Memory Size | 8 GB |
| Memory Type | GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Bus | 128-bit |
| Memory Bandwidth | 448 GB/s |
| PCI Express | PCI-E 5.0 |
| Max Digital Resolution | 7680x4320 |
| Multi-View Support | 4 displays |
| Display Outputs | DisplayPort 2.1b x3, HDMI 2.1b x1 |
| Power Connector | 8-pin x1 |
| Recommended PSU | 650W |
| Card Dimensions | 208mm (L) x 120mm (W) x 40mm (H) |
| Form Factor | ATX |
| DirectX Support | DirectX 12 |
| OpenGL Support | OpenGL 4.6 |
| Cooling Solution | WINDFORCE with Hawk fan |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What PSU do I need for the RTX 5060 Ti WINDFORCE MAX OC?
Gigabyte recommends a 650W power supply unit. Ensure your PSU is reliable and from a reputable manufacturer to guarantee stable operation.
How many displays can this card support?
The RTX 5060 Ti can support up to 4 displays simultaneously via its triple DisplayPort 2.1b and single HDMI 2.1b outputs.
What cooling technology does the WINDFORCE system use?
The WINDFORCE cooling system features a Hawk fan design combined with server-grade thermal conductive gel to efficiently manage heat and maintain optimal temperatures.
Is this card suitable for 4K gaming?
Yes, the RTX 5060 Ti can handle 4K gaming. It supports resolutions up to 7680x4320 and includes DLSS 4 technology for improved performance and visual quality.
What is included in the box?
The package includes the graphics card and a quick start guide.
Does it support DLSS 4?
Yes, the RTX 5060 Ti is powered by NVIDIA Blackwell architecture and includes DLSS 4 support for enhanced gaming performance and ray tracing capabilities.
What warranty does Gigabyte provide?
This card comes with a 36-month (3-year) manufacturer's warranty, providing comprehensive coverage and peace of mind.
