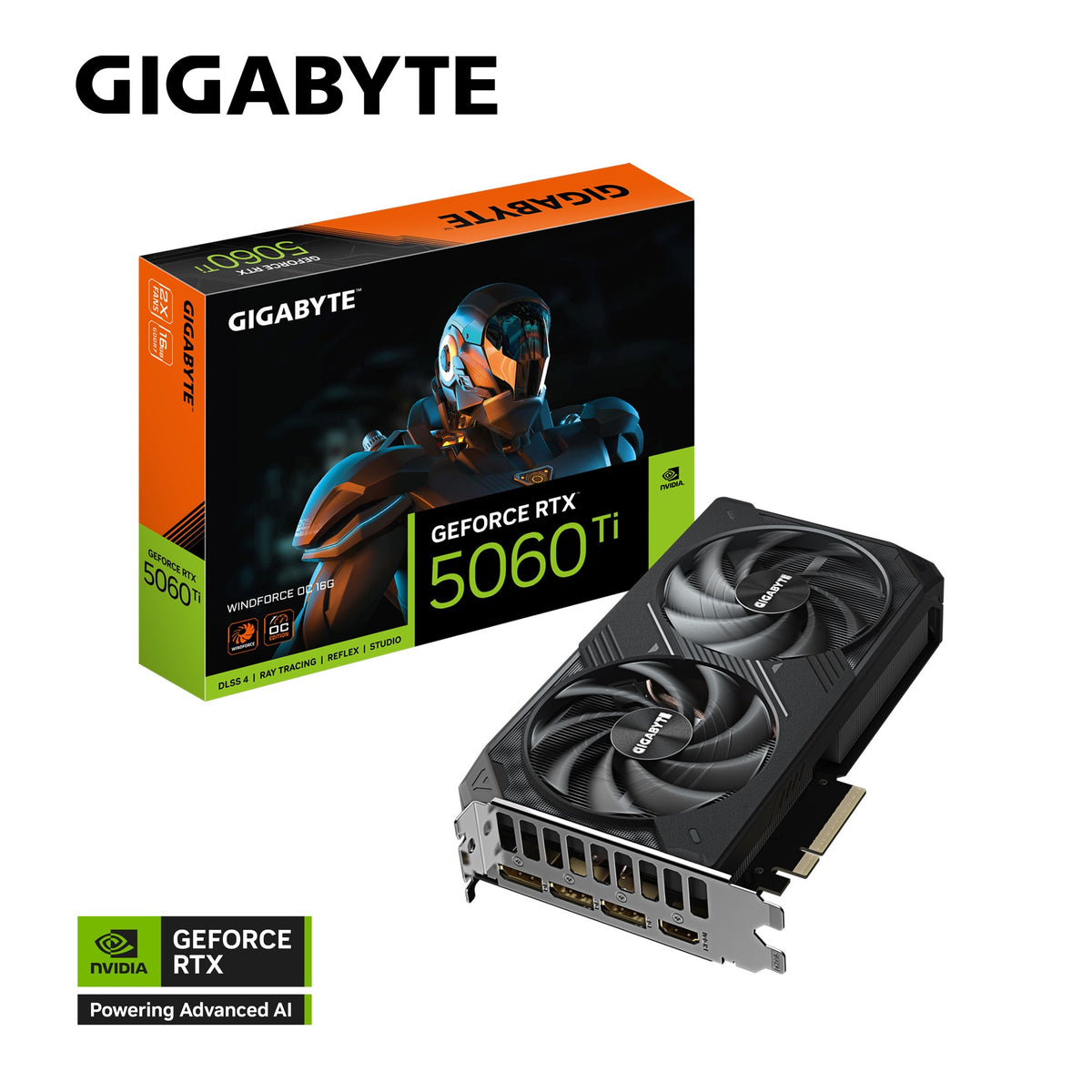

Gigabyte GeForce RTX 5060 Ti WINDFORCE OC 16G
Gigabyte GeForce RTX 5060 Ti WINDFORCE OC 16G
SKU:VCG-N506TWF2OC-16GD
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Video/Graphics Cards |
| SKU | VCG-N506TWF2OC-16GD |
| Availability | Out of Stock |
Overview
- The Gigabyte GeForce RTX 5060 Ti WINDFORCE OC 16G combines NVIDIA's latest Blackwell architecture with cutting-edge cooling technology to deliver reliable, high-performance graphics processing. With 16GB of GDDR7 memory and PCI-E 5.0 connectivity, it provides the bandwidth and memory capacity needed for demanding games, 3D applications, and AI-accelerated workloads.
The WINDFORCE cooling system is engineered for efficiency and longevity. It features Hawk fans with aerodynamic blade design, server-grade thermal conductive gel on critical components, composite copper heat pipes, and 3D Active Fan technology that reduces power consumption during low-load scenarios. This combination ensures optimal thermal performance without excessive noise.
With support for DLSS 4, fifth-generation Tensor Cores, and fourth-generation Ray Tracing Cores, the RTX 5060 Ti is optimised for modern gaming and creative workflows. Multi-display support via four independent outputs enables flexible workstation setups. The reinforced metal backplate provides structural integrity for reliability in demanding environments.
Specifications
| Graphics Processor | NVIDIA GeForce RTX 5060 Ti |
|---|---|
| GPU Architecture | NVIDIA Blackwell |
| Core Clock | 2587 MHz |
| Memory Size | 16 GB |
| Memory Type | GDDR7 |
| Memory Interface | 128-bit |
| Memory Speed | 28 Gbps |
| PCI-E Generation | PCI-E 5.0 |
| Maximum Digital Resolution | 7680×4320 |
| Multi-view Support | 4 |
| DirectX Support | DirectX 12 |
| OpenGL Support | 4.6 |
| Output Connectors | 3 × DisplayPort 2.1b, 1 × HDMI 2.1b |
| Power Connectors | 1 × 8-Pin |
| Recommended PSU | 650W |
| Card Dimensions | 208 mm (L) × 120 mm (W) × 40 mm (H) |
| Form Factor | ATX |
| Cooling System | WINDFORCE with Hawk fans, server-grade thermal gel, and 3D Active Fan |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What is DLSS 4 and how does it improve gaming performance?
DLSS 4 (Deep Learning Super Sampling) is NVIDIA's AI-powered upscaling technology that renders games at lower resolutions and intelligently upscales to higher resolutions in real time. This increases frame rates while maintaining visual quality, allowing smoother gameplay at high settings.
Is the RTX 5060 Ti suitable for 4K gaming?
The RTX 5060 Ti supports 4K resolution gaming, though performance depends on game settings and complexity. With DLSS 4 enabled, it can deliver solid frame rates at 4K in many modern titles. For competitive gaming or maximum settings, 1440p is often the optimal balance.
What power supply is required?
Gigabyte recommends a 650W PSU. The card has a single 8-pin power connector. Ensure your power supply is 80 Plus Bronze certified or better for reliability and efficiency.
How does the WINDFORCE cooling system keep the card cool?
WINDFORCE uses Hawk fans with optimised blade design, server-grade thermal conductive gel on memory and power components, copper heat pipes, and 3D Active Fan technology that stops the fans during low-load scenarios. This design reduces temperatures while minimising noise.
Can I use multiple monitors with this card?
Yes, the RTX 5060 Ti supports up to 4 independent displays via its 3 × DisplayPort 2.1b and 1 × HDMI 2.1b connectors, making it suitable for multi-monitor workstations.
What is the warranty coverage?
The Gigabyte GeForce RTX 5060 Ti WINDFORCE OC includes a 36-month manufacturer warranty covering defects in materials and workmanship.
Is this card suitable for content creation and 3D rendering?
Yes. With 16GB of GDDR7 memory, Tensor Cores, and Ray Tracing Cores, the RTX 5060 Ti is well-suited for 3D rendering, video editing, and AI-accelerated creative applications.
