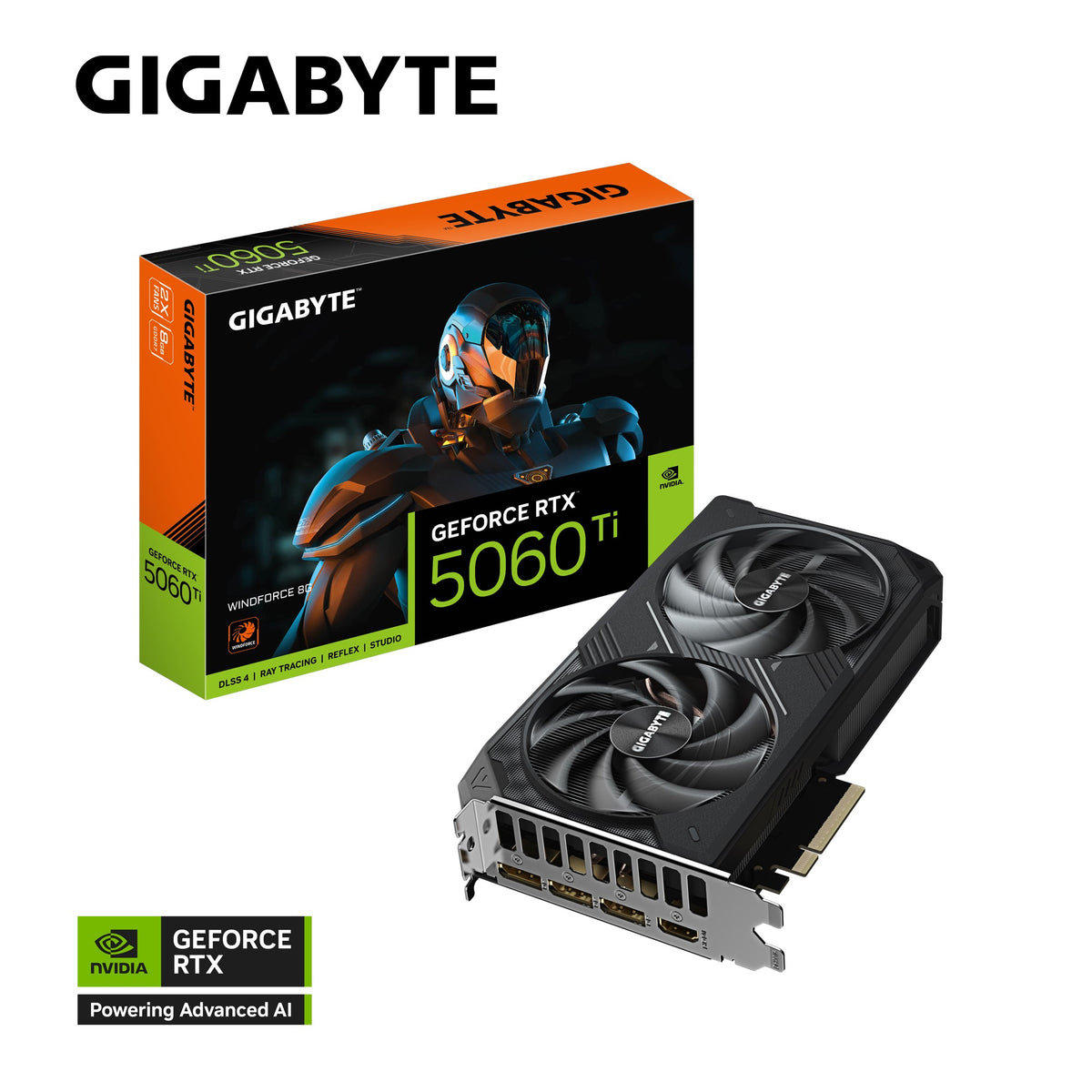

Gigabyte GeForce RTX 5060 Ti WINDFORCE 8G Graphics Card
Gigabyte GeForce RTX 5060 Ti WINDFORCE 8G Graphics Card
SKU:VCG-N506TWF2-8GD
The Gigabyte GeForce RTX 5060 Ti WINDFORCE 8G is a high-performance graphics card powered by NVIDIA Blackwell architecture and DLSS 4. Featuring 8GB GDDR7 memory, PCI-E 5.0 support, and advanced WINDFORCE cooling, it delivers excellent thermal performance for gaming and creative workloads.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Video/Graphics Cards |
| SKU | VCG-N506TWF2-8GD |
| Availability | In Stock |
Overview
- The Gigabyte GeForce RTX 5060 Ti WINDFORCE 8G is a next-generation graphics card engineered for demanding gaming and professional workloads. Built on NVIDIA's Blackwell architecture, it combines fifth-generation Tensor Cores, fourth-generation ray tracing cores, and DLSS 4 technology to deliver exceptional performance per watt. The card features 8GB of fast GDDR7 memory and connects via PCI-E 5.0, ensuring compatibility with modern systems.
Thermal management is a key strength. The WINDFORCE cooling system uses server-grade thermal conductive gel on critical components like VRAM and MOSFETs, Hawk fans with aerodynamic blade design, and composite copper heat pipes for efficient heat dissipation. The 3D Active Fan technology enables semi-passive cooling during light workloads, reducing noise and power consumption.
With its compact footprint (208mm length) and reinforced backplate, this card suits both custom gaming builds and professional workstations. The inclusion of multiple DisplayPort 2.1b outputs (×3) and HDMI 2.1b (×1) supports multi-monitor setups, while the 650W power requirement makes it practical for many existing systems.
Specifications
| GPU | NVIDIA GeForce RTX 5060 Ti |
|---|---|
| GPU Architecture | Blackwell |
| Core Clock | 2572 MHz |
| CUDA Cores | TBD |
| Memory Size | 8 GB |
| Memory Type | GDDR7 |
| Memory Bus | 128-bit |
| Memory Clock | 28 Gbps |
| Bus Interface | PCI-E 5.0 |
| Max Digital Resolution | 7680×4320 |
| Multi-View Support | 4 |
| Output Connectors | DisplayPort 2.1b (×3), HDMI 2.1b (×1) |
| Power Connector | 8-pin (×1) |
| Recommended PSU | 650W |
| Cooling System | WINDFORCE with Hawk fans, server-grade thermal gel, composite copper heat pipes |
| Card Dimensions | L 208mm × W 120mm × H 40mm |
| PCB Form Factor | ATX |
| DirectX Support | DirectX 12 |
| OpenGL Support | 4.6 |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What power supply do I need for the RTX 5060 Ti WINDFORCE 8G?
Gigabyte recommends a 650W power supply. The card requires a single 8-pin power connector, making it suitable for most existing systems with adequate power capacity.
Does this card support DLSS 4?
Yes, the RTX 5060 Ti features DLSS 4 support, enabling AI-accelerated upscaling for improved gaming performance and image quality.
What cooling technology does the WINDFORCE system use?
The WINDFORCE system combines Hawk fans with aerodynamic design, server-grade thermal conductive gel on critical components, composite copper heat pipes, and 3D Active Fan technology for semi-passive cooling during low-load scenarios.
Is the RTX 5060 Ti suitable for content creation?
Yes. With fifth-generation Tensor Cores and 8GB GDDR7 memory, this card is well-suited for video editing, 3D rendering, and AI-accelerated creative workflows.
How many displays can this card support?
The card supports up to 4 displays simultaneously via its 3× DisplayPort 2.1b and 1× HDMI 2.1b connectors, accommodating multi-monitor gaming and professional setups.
What is the maximum resolution this card can output?
The RTX 5060 Ti supports a maximum digital resolution of 7680×4320, allowing for ultra-high-resolution single-display or multi-display configurations.
What warranty does the Gigabyte RTX 5060 Ti include?
The card comes with a 36-month (3-year) warranty, providing comprehensive coverage for hardware defects and failures.
