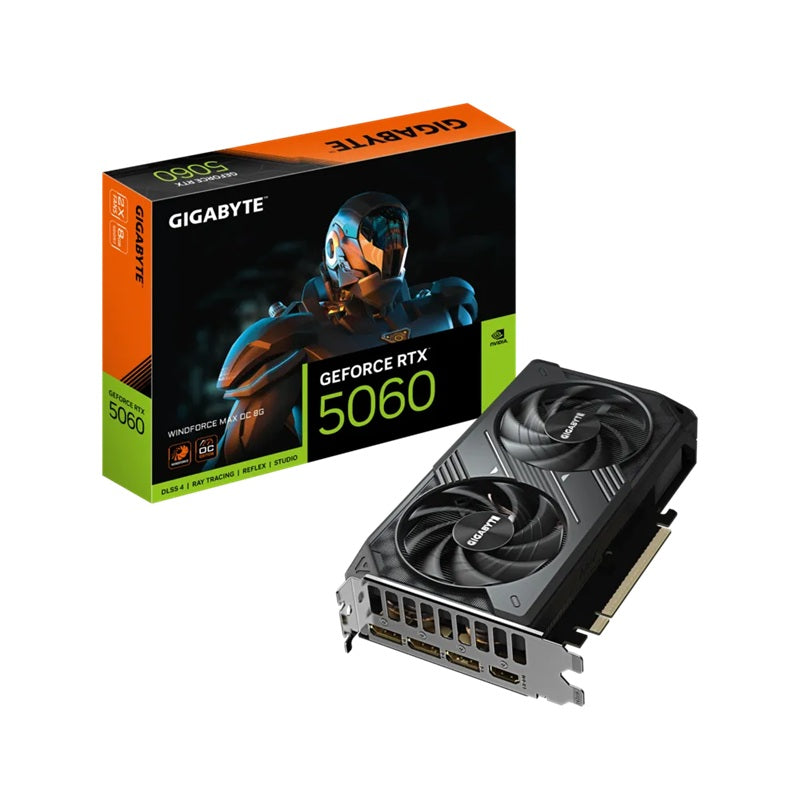

Gigabyte GeForce RTX 5060 WINDFORCE 2 MAX OC 8GB
Gigabyte GeForce RTX 5060 WINDFORCE 2 MAX OC 8GB
SKU:VCG-GV-N5060WF2MAXOC-8GD
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Video/Graphics Cards |
| SKU | VCG-GV-N5060WF2MAXOC-8GD |
| Availability | In Stock |
Overview
- The Gigabyte GeForce RTX 5060 WINDFORCE 2 MAX OC combines NVIDIA's latest Blackwell architecture with robust engineering designed for professional applications. Built with 8GB of GDDR7 memory and 3840 CUDA Cores, it delivers substantial parallel processing power for complex computational tasks.
The WINDFORCE 2 MAX cooling system features Hawk fans and server-grade thermal conductive gel, ensuring stable performance under sustained workloads. PCI-E 5.0 support provides maximum data transfer bandwidth, while the card supports 4K and 8K displays through multiple DisplayPort 2.1b and HDMI 2.1b outputs.
This card operates with a recommended 550W PSU and includes a single 8-pin power connector for straightforward integration. With 36-month warranty coverage, it's engineered for reliability in professional environments requiring consistent performance and thermal stability.
Specifications
| GPU | NVIDIA GeForce RTX 5060 |
|---|---|
| Architecture | NVIDIA Blackwell |
| CUDA Cores | 3840 |
| Core Clock | 2512 MHz |
| Memory Size | 8 GB |
| Memory Type | GDDR7 |
| Memory Clock | 28 Gbps |
| Memory Bus | 128-bit |
| Max Digital Resolution | 7680×4320 |
| Multi-View Support | 4 displays |
| Bus Interface | PCI-E 5.0 |
| PCB Form Factor | ATX |
| Card Dimensions | L: 199 mm, W: 116 mm, H: 40 mm |
| Power Connectors | 8-Pin (×1) |
| Recommended PSU | 550W |
| Display Outputs | DisplayPort 2.1b (×3), HDMI 2.1b (×1) |
| DirectX Support | DirectX 12 |
| OpenGL Support | 4.6 |
| Cooling System | WINDFORCE with Hawk fan and thermal conductive gel |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What is the power requirement for the RTX 5060?
Gigabyte recommends a 550W power supply unit (PSU). The card uses a single 8-pin power connector for straightforward installation.
How many displays can I connect to this card?
The RTX 5060 WINDFORCE 2 MAX OC supports up to 4 displays simultaneously via three DisplayPort 2.1b ports and one HDMI 2.1b port, enabling multi-monitor configurations and 8K display support.
What is DLSS 4 and why is it important?
DLSS 4 is NVIDIA's Deep Learning Super Sampling technology that uses AI to upscale lower-resolution images while maintaining visual quality. This improves performance and frame rates in supported applications.
Is this card suitable for gaming?
Yes. The RTX 5060 is designed for applications requiring strong graphics processing, including gaming, 3D rendering, video editing, and professional visualisation tasks.
What makes the WINDFORCE cooling system effective?
WINDFORCE features Hawk fans optimised for airflow and server-grade thermal conductive gel for efficient heat transfer, maintaining stable temperatures during sustained workloads.
What is PCI-E 5.0 and does it matter?
PCI-E 5.0 is the latest interface standard, providing double the bandwidth of PCI-E 4.0. This ensures maximum data transfer rates between the GPU and system, reducing potential bottlenecks in data-intensive applications.
What warranty does the RTX 5060 include?
The card includes a 36-month manufacturer warranty covering defects in materials and workmanship.
