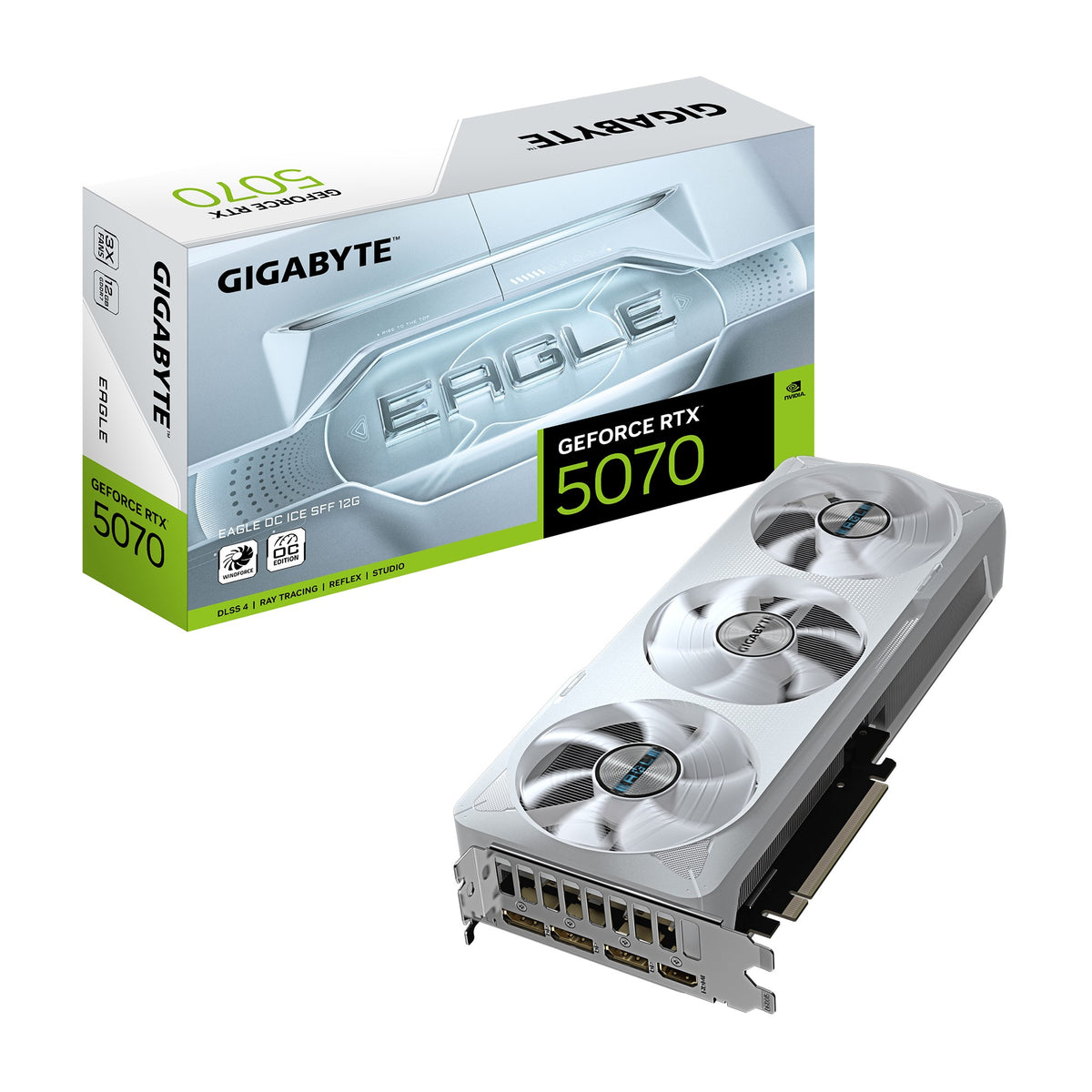

Gigabyte GeForce RTX 5070 EAGLE OC ICE SFF 12G
Gigabyte GeForce RTX 5070 EAGLE OC ICE SFF 12G
SKU:VCG-N5070EAGLEOCICE-12GD
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Video/Graphics Cards |
| SKU | VCG-N5070EAGLEOCICE-12GD |
| Availability | In Stock |
Overview
- The Gigabyte GeForce RTX 5070 EAGLE OC ICE SFF 12G is a high-performance graphics card engineered for compact systems without compromising on power. Built on NVIDIA's Blackwell architecture with DLSS 4 support, it delivers exceptional performance for gaming, content creation, and professional applications. The card features 12GB of GDDR7 memory on a 192-bit interface, enabling smooth 4K gaming and demanding workloads.
Designed as NVIDIA SFF-ready, this compact card fits small form factor cases while maintaining thermal efficiency through the advanced WINDFORCE cooling system. The system combines server-grade thermal conductive gel, Hawk fans with alternate spinning, and composite copper heat pipes to ensure optimal temperatures under load. The reinforced metal backplate provides structural integrity for reliable long-term operation.
Connectivity is comprehensive with three DisplayPort 2.1b outputs and one HDMI 2.1b port, supporting resolutions up to 7680×4320. The card requires a 750W power supply and draws power through a single 16-pin connector. The EAGLE OC design combines aerospace and sci-fi aesthetics with functional engineering, featuring customisable RGB lighting for system personalisation.
Specifications
| GPU | NVIDIA GeForce RTX 5070 |
|---|---|
| Architecture | Blackwell |
| Core Clock | 2587 MHz (Reference: 2512 MHz) |
| CUDA Cores | 6144 |
| Memory Capacity | 12 GB |
| Memory Type | GDDR7 |
| Memory Clock | 28 Gbps |
| Memory Bus | 192-bit |
| Memory Bandwidth | 672 GB/s |
| PCI-E Interface | PCI-E 5.0 |
| DirectX Support | DirectX 12 |
| OpenGL Support | 4.6 |
| DLSS | DLSS 4 |
| Max Digital Resolution | 7680 × 4320 |
| Multi-View Support | 4 displays |
| Display Outputs | 3× DisplayPort 2.1b, 1× HDMI 2.1b |
| Power Connectors | 1× 16-pin |
| Recommended PSU | 750W |
| Card Dimensions | 290 × 120 × 50 mm (L × W × H) |
| Form Factor | ATX, NVIDIA SFF-ready |
| Cooling System | WINDFORCE with Hawk fans, thermal conductive gel, copper heat pipes |
| Backplate | Reinforced metal |
| RGB Lighting | 16.7M customisable colours |
| Warranty | 36 months |
| Included Accessories | Quick guide, 12V-2×6 to 2× PCIe 8-pin adapter |
Key Features
Ideal For
FAQs
Is the Gigabyte RTX 5070 EAGLE OC suitable for small form factor builds?
Yes. At 290 × 120 × 50 mm, this card is NVIDIA SFF-ready and designed specifically for compact PC cases without sacrificing performance or cooling efficiency.
What power supply is required for this graphics card?
A 750W power supply is recommended. The card uses a single 16-pin connector and is designed for systems with adequate power delivery.
How many displays can this card support?
The card supports up to 4 simultaneous displays via 3× DisplayPort 2.1b and 1× HDMI 2.1b output, supporting resolutions up to 7680×4320.
What cooling solution does the EAGLE OC use?
It features the WINDFORCE cooling system with Hawk fans, server-grade thermal conductive gel, composite copper heat pipes, and a large copper plate for optimal thermal performance.
Is RGB lighting included and customisable?
Yes. The card includes RGB lighting with 16.7 million customisable colour options and multiple lighting effects that can be synchronised via GIGABYTE CONTROL CENTER.
What is the warranty period?
The card includes a 36-month manufacturer's warranty.
Does this card support DLSS technology?
Yes. The card supports DLSS 4, which enhances gaming performance and visual quality through AI-driven rendering optimisations.
