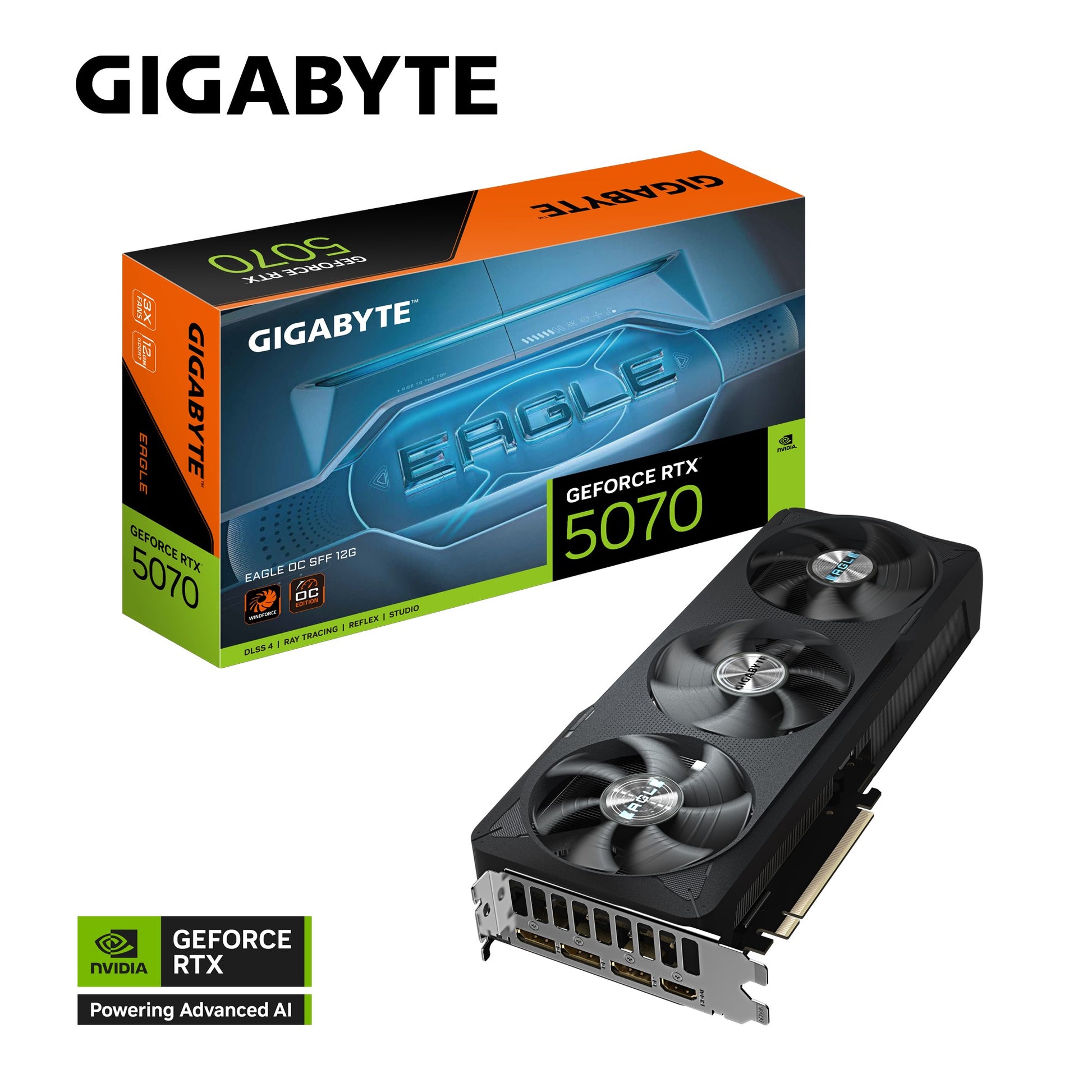

Gigabyte GeForce RTX 5070 EAGLE OC SFF 12G
Gigabyte GeForce RTX 5070 EAGLE OC SFF 12G
SKU:VCG-GV-N5070EAGLEOC-12GD
The Gigabyte GeForce RTX 5070 EAGLE OC SFF is a high-performance graphics card featuring 12GB GDDR7 memory, NVIDIA Blackwell architecture, and WINDFORCE cooling. Designed for small form factor systems, it delivers exceptional gaming and creative performance for demanding workloads.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Video/Graphics Cards |
| SKU | VCG-GV-N5070EAGLEOC-12GD |
| Availability | In Stock |
Overview
- The Gigabyte GeForce RTX 5070 EAGLE OC SFF 12G is a compact yet powerful graphics card built on NVIDIA's latest Blackwell architecture. With 6144 CUDA cores and 12GB GDDR7 memory, it delivers exceptional performance for gaming, content creation, and AI workloads whilst maintaining a small form factor design that fits even the most space-constrained builds.
The WINDFORCE cooling system ensures thermal efficiency through server-grade materials and innovative fan design, keeping the card cool under sustained load. DLSS 4 support with tensor cores and ray tracing technology enables cutting-edge graphics quality and AI-driven performance optimisations.
NVIDIA SFF-ready certification guarantees compatibility with compact cases, making this card ideal for enthusiasts who refuse to compromise on performance due to size limitations. The card supports up to 7680x4320 resolution across four displays, providing flexibility for professional and gaming setups.
Specifications
| Graphics Processing Unit | GeForce RTX 5070 |
|---|---|
| GPU Architecture | NVIDIA Blackwell |
| Core Clock | 2587 MHz (Reference: 2512 MHz) |
| CUDA Cores | 6144 |
| Tensor Cores | Fifth-generation |
| Ray Tracing Cores | Fourth-generation |
| Memory Size | 12 GB |
| Memory Type | GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Bus | 192 bit |
| Memory Bandwidth | 672 GB/s |
| PCI-E Interface | PCI-E 5.0 |
| Form Factor | ATX (SFF-ready) |
| Card Dimensions | 290 mm (L) × 120 mm (W) × 50 mm (H) |
| Maximum Resolution | 7680 × 4320 |
| Multi-view Support | 4 displays |
| DirectX Support | DirectX 12 |
| OpenGL Support | 4.6 |
| Cooling System | WINDFORCE with Hawk fans and thermal conductive gel |
| Power Connectors | 1 × 16-pin |
| Recommended PSU | 750W |
| Display Outputs | 3 × DisplayPort 2.1b, 1 × HDMI 2.1b |
| Lighting | RGB with 16.7M colour options |
| Warranty | 36 months |
| Included Accessories | Quick guide, 12V-2×6 to 2×PCIe 8-pin adapter |
Key Features
Ideal For
FAQs
What is NVIDIA Blackwell architecture?
Blackwell is NVIDIA's latest GPU architecture featuring improved performance per watt, new streaming multiprocessors optimised for neural shaders, fifth-gen tensor cores for AI tasks, and fourth-gen ray tracing cores. These advancements deliver significant performance gains for gaming, creative work, and AI applications.
What does SFF-ready mean?
SFF-ready means the card complies with NVIDIA's small form factor specification, allowing powerful performance in compact cases. Despite its smaller dimensions (290×120×50mm), it delivers full-performance capabilities without the bulk of larger graphics cards.
What PSU wattage do I need?
Gigabyte recommends a 750W power supply for this card. Your actual requirement may vary based on your CPU and system configuration, but 750W provides adequate headroom for stable operation.
Does this card support DLSS 4?
Yes, the RTX 5070 EAGLE OC fully supports DLSS 4, which uses fifth-generation tensor cores to deliver improved AI-driven performance and visual quality in compatible games and applications.
What cooling system does it use?
The card features WINDFORCE cooling with Hawk fans, server-grade thermal conductive gel, composite copper heat pipes, and a large copper plate. This system is designed to maintain optimal temperatures during sustained gaming or creative workloads.
How many displays can I connect?
The card supports up to four displays with a maximum resolution of 7680×4320. Connectivity is via 3 × DisplayPort 2.1b and 1 × HDMI 2.1b, offering flexibility for multi-display professional and gaming setups.
Is RGB lighting synchronisable with other devices?
Yes, the RGB lighting (16.7M colour options) can be customised and synchronised with other GIGABYTE devices using GIGABYTE CONTROL CENTER software.
What memory bandwidth does this card offer?
With 12GB GDDR7 memory on a 192-bit interface running at 28 Gbps, the card delivers 672 GB/s of memory bandwidth, ensuring excellent performance for high-resolution gaming and creative tasks.
