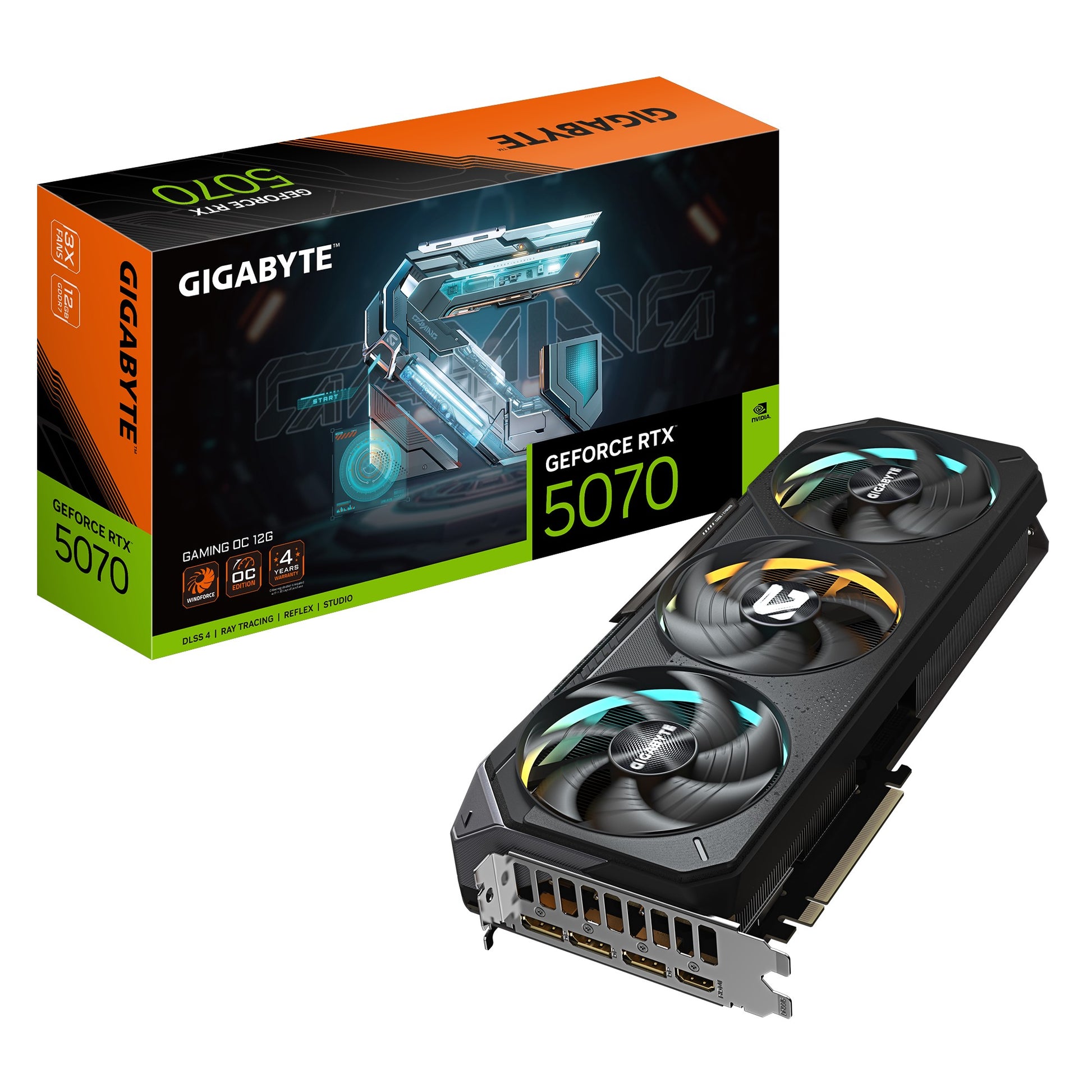

Gigabyte GeForce RTX 5070 GAMING OC 12GB Graphics Card
Gigabyte GeForce RTX 5070 GAMING OC 12GB Graphics Card
SKU:VCG-GV-N5070GAMINGOC-12GD
Couldn't load pickup availability
- See our return policy
- 36 months (online registration required) Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Video/Graphics Cards |
| SKU | VCG-GV-N5070GAMINGOC-12GD |
| Availability | In Stock |
Overview
- The Gigabyte GeForce RTX 5070 GAMING OC 12G leverages NVIDIA's latest Blackwell architecture to deliver outstanding performance for gaming and creative workflows. With 6144 CUDA cores, fifth-generation Tensor cores, and fourth-generation ray tracing cores, it provides substantial GPU acceleration across professional and consumer applications.
The WINDFORCE cooling system ensures reliable thermal management through server-grade thermal conductive gel, composite copper heat pipes, and innovative Hawk fans. Dual BIOS modes allow users to switch between Performance and Silent profiles based on workload requirements.
Built for modern systems, the card supports PCI-E 5.0, DisplayPort 2.1b, and HDMI 2.1b, enabling seamless integration with next-generation displays and peripherals. The reinforced metal backplate and included VGA holder provide structural integrity and installation stability. A three-year warranty (online registration required) protects your investment.
Specifications
| GPU | GeForce RTX 5070 |
|---|---|
| Architecture | NVIDIA Blackwell |
| CUDA Cores | 6144 |
| Core Clock | 2625 MHz (Reference: 2512 MHz) |
| Memory Size | 12 GB |
| Memory Type | GDDR7 |
| Memory Clock | 28 Gbps |
| Memory Bus | 192-bit |
| Card Bus | PCI-E 5.0 |
| Maximum Resolution | 7680 x 4320 |
| Multi-view | 4 displays |
| Card Dimensions | 327 x 132 x 56 mm (L x W x H) |
| Card Form Factor | ATX |
| Power Connectors | 16-pin x 1 |
| Recommended PSU | 750W |
| Display Outputs | DisplayPort 2.1b x 3, HDMI 2.1b x 1 |
| DirectX Support | DirectX 12 |
| OpenGL Support | 4.6 |
| Cooling System | WINDFORCE with server-grade thermal gel and Hawk fans |
| BIOS Modes | Dual BIOS (Performance / Silent) |
| Warranty | 36 months (online registration required) |
| Accessories Included | Quick guide, warranty registration card, 12V-2x6 to 2x PCIe 8-pin adapter, versatile VGA holder, VGA holder manual |
Key Features
Ideal For
FAQs
What power supply is required for the RTX 5070 GAMING OC 12G?
Gigabyte recommends a 750W PSU. The card uses a single 16-pin power connector and includes a 12V-2x6 to 2x PCIe 8-pin adapter for compatibility with existing systems.
Does this card support DLSS 4 and ray tracing?
Yes. The RTX 5070 features NVIDIA Blackwell architecture with fifth-generation Tensor cores for DLSS 4 support and fourth-generation ray tracing cores for real-time ray-traced graphics.
What cooling solution does this card use?
The WINDFORCE cooling system features server-grade thermal conductive gel, composite copper heat pipes, Hawk fans with alternate spinning, and a large copper plate for effective heat dissipation.
Can I adjust the performance and thermal settings?
Yes. The card includes dual BIOS modes—Performance and Silent—allowing you to switch between maximum performance and quieter operation based on your needs.
What display connections are available?
The card provides three DisplayPort 2.1b outputs and one HDMI 2.1b output, supporting up to 4 displays simultaneously at resolutions up to 7680 x 4320.
Is RGB lighting included and customisable?
Yes. The RGB Halo lighting can be customised with various effects or synchronised with other compatible devices using GIGABYTE CONTROL CENTER software.
What is the warranty period?
The card includes a 36-month (3-year) warranty. Online registration is required to activate the warranty coverage.
Is a VGA holder included?
Yes. A versatile VGA holder and its manual are included to provide additional support and stability for the graphics card during installation.
