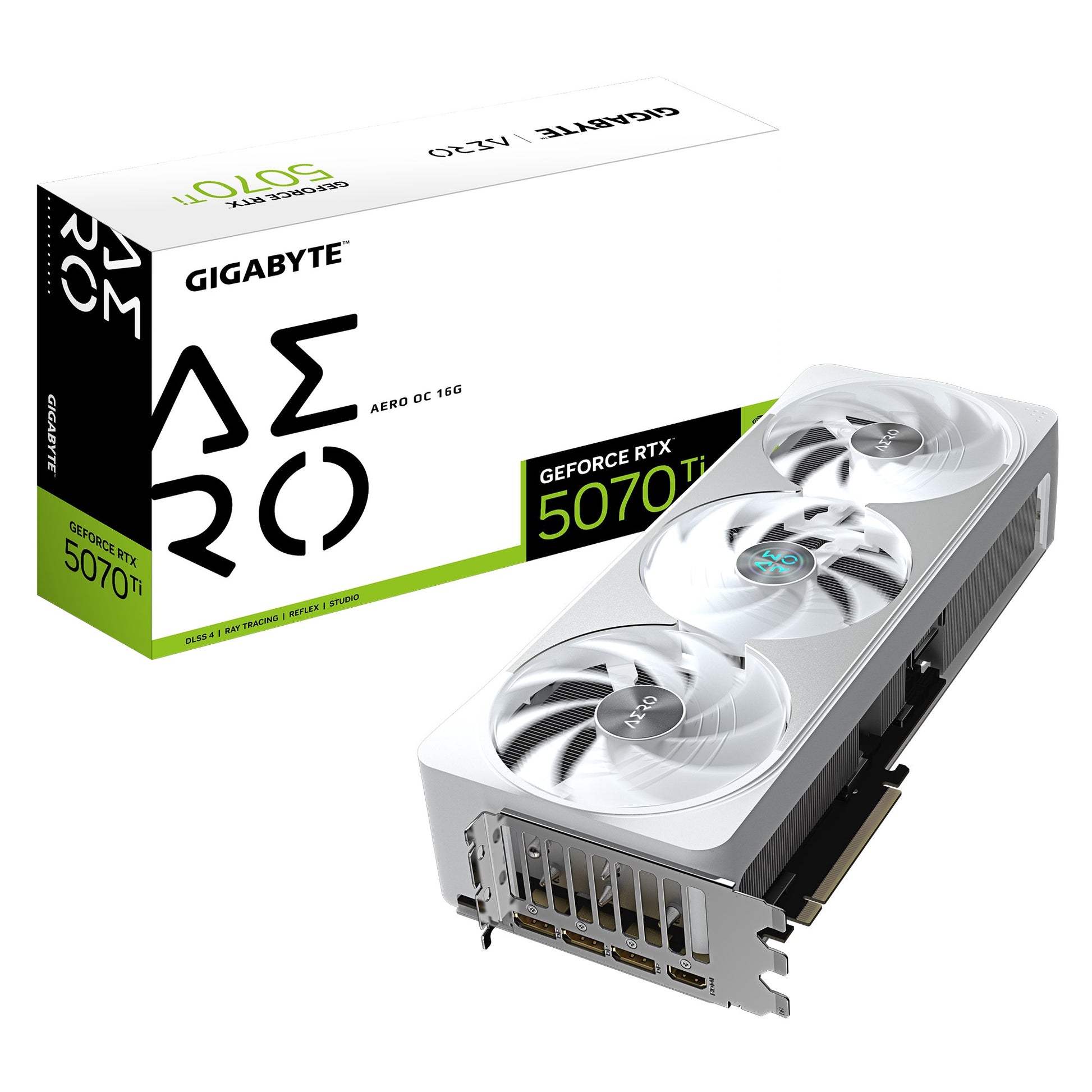

Gigabyte GeForce RTX 5070 Ti AERO OC 16GB Graphics Card
Gigabyte GeForce RTX 5070 Ti AERO OC 16GB Graphics Card
SKU:VCG-GV-N5070AEROOC-16GD
The Gigabyte GeForce RTX 5070 Ti AERO OC 16G is a high-performance graphics card powered by NVIDIA Blackwell architecture. Featuring 8960 CUDA cores, 16GB GDDR7 memory, and advanced WINDFORCE cooling, it delivers exceptional gaming and creative workload performance for professionals and enthusiasts.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Video/Graphics Cards |
| SKU | VCG-GV-N5070AEROOC-16GD |
| Availability | Out of Stock |
Overview
- The Gigabyte GeForce RTX 5070 Ti AERO OC 16G represents a flagship graphics solution built on NVIDIA's fifth-generation Blackwell architecture. With 8960 CUDA cores and 16GB of GDDR7 memory, it delivers substantial computational power for demanding graphics and AI applications.
The WINDFORCE cooling system utilises server-grade thermal conductive gel, Hawk fans with alternate spinning, and a large vapour chamber to maintain optimal thermal performance under sustained workloads. The reinforced metal backplate and sturdy construction ensure longevity in professional environments.
This card supports cutting-edge technologies including DLSS 4, fourth-generation ray tracing cores, and fifth-generation tensor cores, making it suitable for both gaming and creative professional workflows. Dual BIOS modes allow users to switch between performance and silent operation profiles based on workload requirements.
With full compliance to PCI-E 5.0 standards and comprehensive connectivity options including DisplayPort 2.1b and HDMI 2.1b, the RTX 5070 Ti AERO OC integrates seamlessly into modern computing systems.
Specifications
| GPU | NVIDIA GeForce RTX 5070 Ti |
|---|---|
| CUDA Cores | 8960 |
| Core Clock | 2588 MHz |
| Memory Size | 16GB |
| Memory Type | GDDR7 |
| Memory Clock | 28 Gbps |
| Memory Bus | 256 bit |
| PCI-E Standard | 5.0 |
| Maximum Resolution | 7680 x 4320 |
| Multi-View Support | 4 displays |
| Display Outputs | DisplayPort 2.1b x3, HDMI 2.1b x1 |
| Power Connectors | 1x 16-pin |
| Recommended PSU | 750W |
| Card Dimensions | 340mm (L) x 140mm (W) x 70mm (H) |
| PCB Form Factor | ATX |
| DirectX Support | DirectX 12 API |
| OpenGL Support | OpenGL 4.6 |
| Cooling System | WINDFORCE with Hawk fans and thermal conductive gel |
| BIOS Modes | Dual BIOS (Performance / Silent) |
| RGB Lighting | 16.7 million colour options |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What power supply do I need for the RTX 5070 Ti AERO OC?
Gigabyte recommends a 750W power supply. The card uses a single 16-pin power connector. Ensure your PSU has sufficient PCIe power connectors and adequate headroom for system stability.
Does this card support ray tracing and DLSS?
Yes. The RTX 5070 Ti features fourth-generation ray tracing cores and full support for DLSS 4, enabling advanced graphics quality and improved frame rates in supported games and applications.
What display outputs does the RTX 5070 Ti AERO OC have?
The card includes three DisplayPort 2.1b outputs and one HDMI 2.1b output, supporting up to four displays simultaneously with a maximum resolution of 7680 x 4320 pixels.
Can I switch between performance and silent operating modes?
Yes. The dual BIOS feature allows you to toggle between performance mode and silent mode. This is useful for adjusting cooling fan behaviour based on workload requirements.
Is the RGB lighting customisable?
Yes. The card features customisable RGB lighting with 16.7 million colour options and multiple lighting effects, controllable through Gigabyte Control Centre software.
What is the warranty period?
The RTX 5070 Ti AERO OC includes a 36-month warranty. Online registration is required to activate the extended warranty coverage.
What cooling technology does this card use?
The WINDFORCE cooling system features Hawk fans with alternate spinning, server-grade thermal conductive gel, composite copper heat pipes, and a large vapour chamber for efficient heat dissipation.
