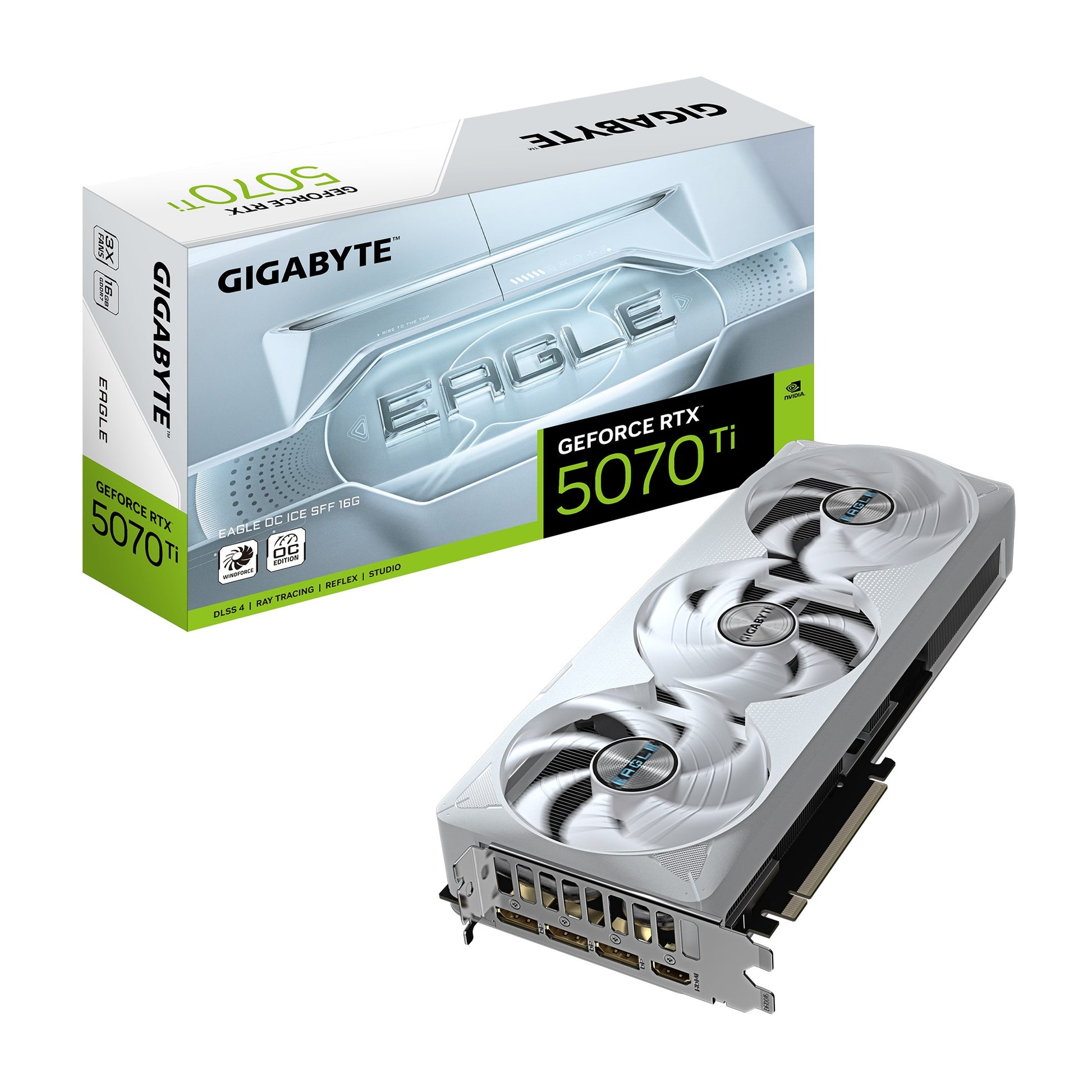

Gigabyte GeForce RTX 5070 Ti EAGLE OC ICE SFF 16GB
Gigabyte GeForce RTX 5070 Ti EAGLE OC ICE SFF 16GB
SKU:VCG-N507TEAGLEOCICE-16GD
The Gigabyte GeForce RTX 5070 Ti EAGLE OC ICE SFF is a compact graphics card featuring 16GB GDDR7 memory and NVIDIA Blackwell architecture. With 8960 CUDA cores, advanced WINDFORCE cooling, and PCIe 5.0 support, it delivers exceptional performance for gaming and creative professionals.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Video/Graphics Cards |
| SKU | VCG-N507TEAGLEOCICE-16GD |
| Availability | In Stock |
Overview
- The Gigabyte GeForce RTX 5070 Ti EAGLE OC ICE SFF is a compact yet powerful graphics card built on NVIDIA's latest Blackwell architecture. At just 304mm long, it delivers desktop-class performance without sacrificing thermal efficiency, making it ideal for small-form-factor PC builds and compact workstations.
With 16GB of GDDR7 memory and 8960 CUDA cores, this card excels in both gaming and professional applications. The WINDFORCE cooling system, featuring server-grade thermal conductive gel and innovative Hawk fans, ensures stable operation even during demanding workloads. Support for DLSS 4 and Fifth-Gen Tensor Cores provides significant performance advantages in modern games and AI-accelerated applications.
The card's SFF-ready design meets NVIDIA specifications for small-form-factor systems, while maintaining premium construction with a reinforced metal backplate and dual BIOS functionality. PCIe 5.0 support and modern display outputs (3x DisplayPort 2.1b, 1x HDMI 2.1b) provide connectivity for current and future display technology.
Specifications
| GPU Chipset | NVIDIA GeForce RTX 5070 Ti |
|---|---|
| GPU Architecture | NVIDIA Blackwell |
| CUDA Cores | 8960 |
| Core Clock | 2542 MHz |
| Memory Capacity | 16GB |
| Memory Type | GDDR7 |
| Memory Clock | 28 Gbps |
| Memory Bus Width | 256-bit |
| PCIe Interface | PCI-E 5.0 |
| Max Digital Resolution | 7680 x 4320 |
| Multi-View Support | 4 displays |
| Card Dimensions | 304mm L x 126mm W x 50mm H |
| PCB Form Factor | ATX |
| Power Connector | 16-pin x1 |
| Recommended PSU | 750W |
| Display Outputs | DisplayPort 2.1b x3, HDMI 2.1b x1 |
| Cooling System | WINDFORCE with Hawk fans and thermal conductive gel |
| BIOS Options | Dual BIOS (Performance/Silent modes) |
| DirectX Support | DirectX 12 API |
| OpenGL Support | OpenGL 4.6 |
| Warranty | 36 months |
| Included Accessories | VGA manual, 12V-2x6 to 2x PCIe 8-pin adapter, Versatile VGA holder, VGA holder manual |
Key Features
Ideal For
FAQs
Is the Gigabyte RTX 5070 Ti EAGLE OC ICE SFF suitable for small-form-factor builds?
Yes. The card is NVIDIA SFF-ready and measures just 304mm in length, making it compatible with compact PC cases while delivering full desktop-class performance.
What cooling solution does this graphics card use?
The WINDFORCE cooling system features Hawk fans with alternate spinning, server-grade thermal conductive gel, composite copper heat pipes, and a large copper plate for efficient heat dissipation.
What power supply wattage is recommended?
Gigabyte recommends a 750W PSU minimum. The card features a single 16-pin power connector and includes a 12V-2x6 to 2x PCIe 8-pin adapter.
Does this card support DLSS 4?
Yes. The RTX 5070 Ti features NVIDIA's Fifth-Gen Tensor Cores and supports DLSS 4, providing enhanced performance in compatible games and applications.
How many displays can this card support?
The card supports up to 4 displays simultaneously via 3x DisplayPort 2.1b and 1x HDMI 2.1b outputs, with a maximum resolution of 7680 x 4320.
What is the warranty period?
The Gigabyte RTX 5070 Ti EAGLE OC ICE SFF comes with a 36-month manufacturer warranty.
Does the card have a dual BIOS feature?
Yes. The card includes dual BIOS with both Performance and Silent modes, allowing you to switch between maximum performance or quieter operation.
What is the core clock speed?
The core clock is 2542 MHz (factory overclocked), compared to the reference clock of 2452 MHz, providing enhanced out-of-the-box performance.
