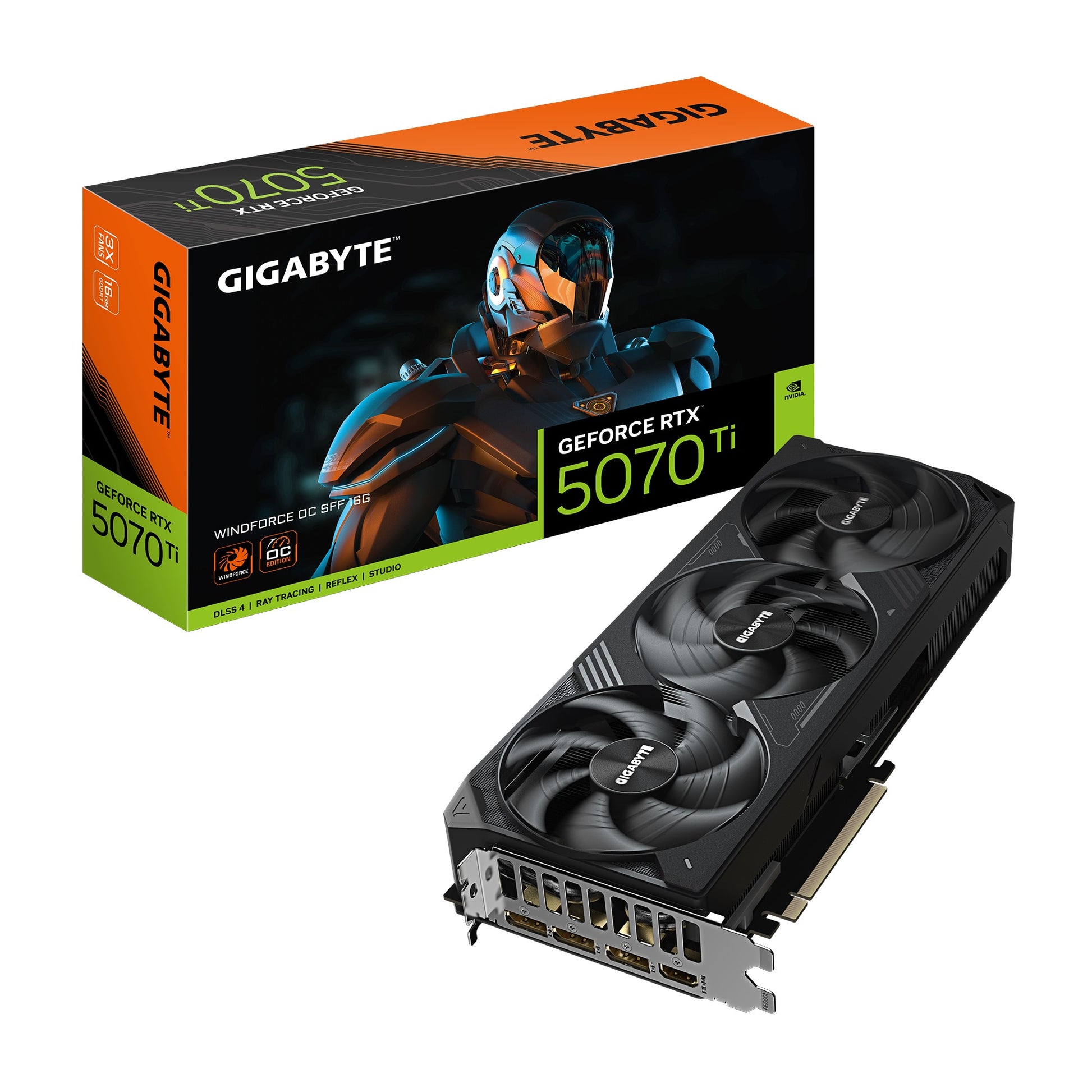

Gigabyte GeForce RTX 5070 Ti WINDFORCE OC SFF 16G
Gigabyte GeForce RTX 5070 Ti WINDFORCE OC SFF 16G
SKU:VCG-GV-N507TWF3OC-16GD
The Gigabyte GeForce RTX 5070 Ti WINDFORCE OC SFF 16G is a high-performance graphics card built on NVIDIA Blackwell architecture. With 16GB GDDR7 memory, advanced cooling, and DLSS 4 support, it delivers exceptional performance for gaming and creative workloads in a compact form factor.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Video/Graphics Cards |
| SKU | VCG-GV-N507TWF3OC-16GD |
| Availability | In Stock |
Overview
- The Gigabyte GeForce RTX 5070 Ti WINDFORCE OC SFF 16G is a premium graphics card engineered for demanding gaming and professional applications. Built on NVIDIA's latest Blackwell architecture, it combines 8960 CUDA cores with 16GB of ultra-fast GDDR7 memory to deliver exceptional compute performance and visual fidelity.
The WINDFORCE cooling system sets this card apart with innovative Hawk fans, server-grade thermal conductive gel, and composite copper heat pipes that maintain optimal temperatures even under sustained workloads. The 3D Active Fan feature enables semi-passive cooling, keeping noise levels low during light gaming or idle periods.
Designed to NVIDIA's small form factor specification, this card packs professional-grade performance into a compact 304mm footprint—ideal for compact PC builds without compromise. Dual BIOS modes (Performance and Silent) give users complete control over the balance between performance and acoustics.
With PCIe 5.0, DLSS 4 support, and fifth-generation Tensor Cores, this card is future-ready for AI-accelerated workflows, ray-traced gaming, and creative applications. A 36-month warranty and premium accessories including a VGA holder ensure long-term reliability and ease of installation.
Specifications
| GPU | NVIDIA GeForce RTX 5070 Ti |
|---|---|
| Architecture | Blackwell |
| CUDA Cores | 8960 |
| Core Clock | 2497 MHz |
| Memory Size | 16GB |
| Memory Type | GDDR7 |
| Memory Clock | 28 Gbps |
| Memory Bus | 256-bit |
| Memory Interface | 256-bit |
| PCIe Standard | PCIe 5.0 |
| Card Form Factor | ATX |
| Card Length | 304mm |
| Card Width | 126mm |
| Card Height | 50mm |
| Max Digital Resolution | 7680 x 4320 |
| Multi-view Support | 4 |
| DirectX Version | DirectX 12 |
| OpenGL Version | OpenGL 4.6 |
| Power Connectors | 1x 16-pin |
| Recommended PSU | 750W |
| Output Ports | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Cooling System | WINDFORCE with Hawk fans and server-grade thermal gel |
| BIOS Modes | Dual BIOS (Performance/Silent) |
| Included Accessories | VGA manual, 12V-2x6 to 2x PCIe 8-pin adapter, versatile VGA holder |
| Warranty Period | 36 months |
Key Features
Ideal For
FAQs
What is NVIDIA Blackwell architecture and how does it benefit performance?
Blackwell is NVIDIA's latest GPU architecture featuring 8960 CUDA cores, fifth-generation Tensor Cores optimised for AI, and fourth-generation Ray Tracing Cores for enhanced geometry processing. It delivers superior gaming performance and accelerates AI, machine learning, and creative workflows.
Is this graphics card suitable for small form factor PC builds?
Yes, this card is NVIDIA SFF-ready and measures 304mm in length, making it designed for compact PC builds. It complies with NVIDIA's small form factor specification while delivering full desktop-class performance.
What does DLSS 4 do, and how does it improve gaming?
DLSS 4 is NVIDIA's deep learning super sampling technology that uses AI to upscale lower-resolution images to higher resolutions with minimal quality loss. This allows higher frame rates at improved visual quality, enhancing gaming and creative performance.
How does the WINDFORCE cooling system keep the card cool?
The WINDFORCE system combines Hawk fans with aerodynamic blade design, server-grade thermal conductive gel on critical components, composite copper heat pipes, a large copper plate, and 3D active fan technology. This delivers efficient heat transfer while maintaining low noise levels.
What is the difference between Performance and Silent BIOS modes?
Performance mode (factory default) maximises GPU clock speed and power output for maximum FPS. Silent mode reduces clock speeds and fan activity, lowering noise levels and power consumption. Users can switch between modes via BIOS to match their preferences.
What power supply should I use with this graphics card?
A 750W power supply is recommended to ensure stable operation and accommodate headroom for the rest of your system components.
What outputs does this card support for displays?
The card features 3x DisplayPort 2.1b and 1x HDMI 2.1b, supporting resolutions up to 7680 x 4320 with up to 4 simultaneous displays.
What is included in the box?
The package includes the graphics card, VGA manual, a 12V-2x6 to 2x PCIe 8-pin power adapter, and a versatile VGA holder with installation manual to prevent sagging and support your card securely.
