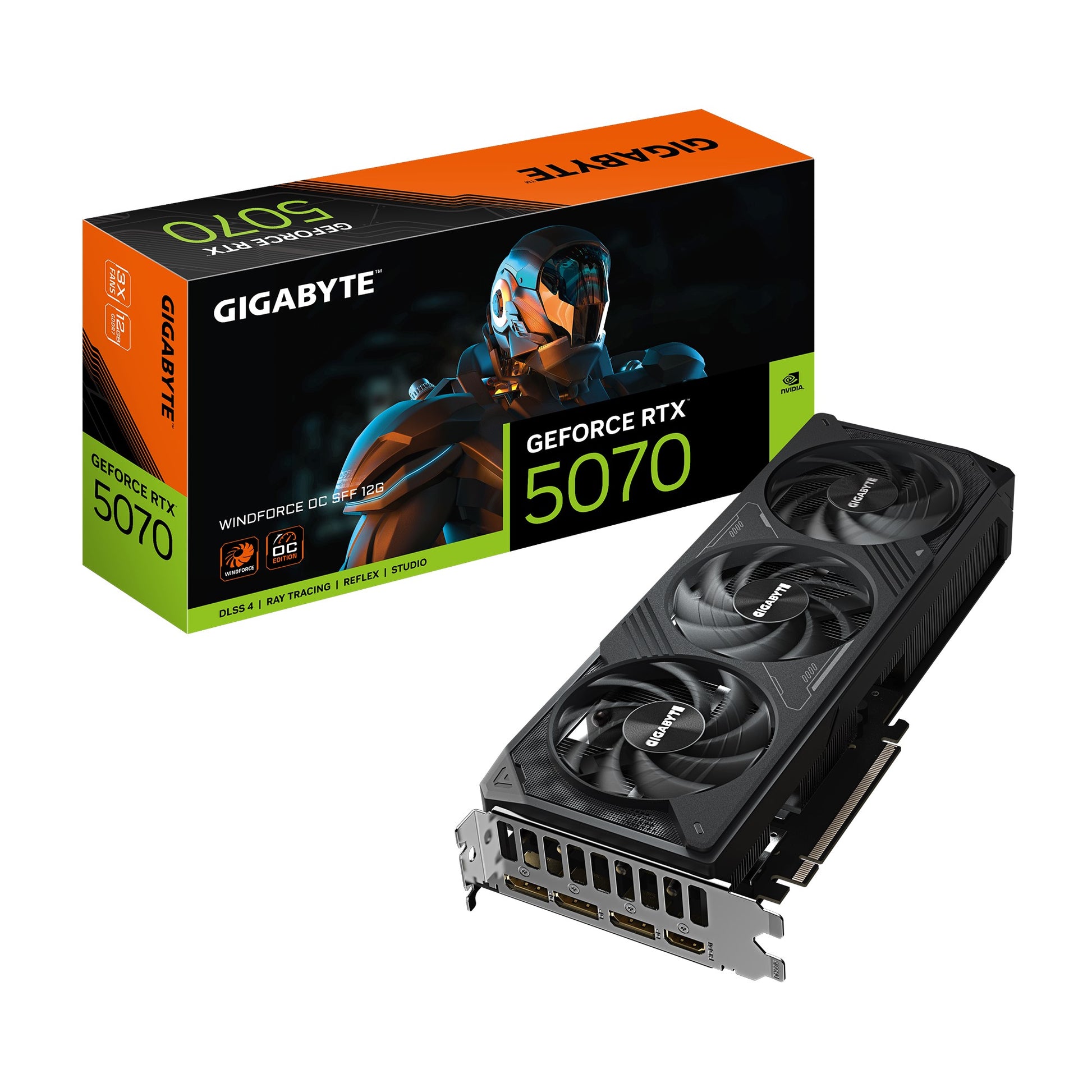

Gigabyte GeForce RTX 5070 WINDFORCE OC SFF 12G
Gigabyte GeForce RTX 5070 WINDFORCE OC SFF 12G
SKU:VCG-GV-N5070WF3OC-12GD
The Gigabyte GeForce RTX 5070 WINDFORCE OC SFF is a compact graphics card with 12GB GDDR7 memory and NVIDIA Blackwell architecture. Featuring advanced cooling, 6144 CUDA cores, and DLSS 4 support, it delivers high-performance gaming and creative workloads in a small form factor design.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Video/Graphics Cards |
| SKU | VCG-GV-N5070WF3OC-12GD |
| Availability | In Stock |
Overview
- The Gigabyte GeForce RTX 5070 WINDFORCE OC SFF is a compact high-performance graphics card built on NVIDIA's latest Blackwell architecture. With 6144 CUDA cores, 12GB GDDR7 memory, and support for DLSS 4, it delivers excellent gaming performance and creative capabilities in a small form factor design compliant with NVIDIA SFF specifications.
The WINDFORCE cooling system sets this card apart, featuring server-grade thermal conductive gel, Hawk fans with aerodynamic blade design, and 3D Active Fan technology that reduces noise by keeping fans off during light workloads. The reinforced metal backplate and composite copper heat pipes ensure durability and reliable thermal management.
Powered by the 2542 MHz boost clock and equipped with modern connectivity including three DisplayPort 2.1b ports and one HDMI 2.1b, the RTX 5070 is ideal for builders seeking maximum performance without sacrificing case space. Fourth-Gen Ray Tracing Cores and Tensor technology make it well-suited for both demanding games and professional creative applications.
Specifications
| GPU Chipset | NVIDIA GeForce RTX 5070 (Blackwell Architecture) |
|---|---|
| CUDA Cores | 6144 |
| Memory Size | 12 GB |
| Memory Type | GDDR7 |
| Memory Bus | 192-bit |
| Memory Speed | 28 Gbps |
| Core Clock | 2542 MHz |
| Reference Core Clock | 2512 MHz |
| PCI-E | PCI-E 5.0 |
| Card Dimensions | 282 × 110 × 50 mm |
| PCB Form Factor | ATX |
| Max Digital Resolution | 7680 × 4320 |
| Multi-view | 4-display support |
| Display Outputs | 3× DisplayPort 2.1b, 1× HDMI 2.1b |
| Power Connector | 1× 16-pin |
| Power Adapter | 1× 12V-2×6 to 2× PCIe 8-pin adapter |
| Recommended PSU | 750W |
| DirectX | DirectX 12 |
| OpenGL | 4.6 |
| Cooling | WINDFORCE system with Hawk fans, composite copper heat pipes, server-grade thermal gel |
| Warranty | 36 months |
| Included Accessories | Quick start guide, power adapter |
Key Features
Ideal For
FAQs
What is the difference between the RTX 5070 and previous generation cards?
The RTX 5070 features NVIDIA's new Blackwell architecture with Fifth-Gen Tensor Cores for superior AI performance, Fourth-Gen Ray Tracing Cores with Mega Geometry support, and DLSS 4 technology. It delivers improved performance per watt and enhanced gaming and creative capabilities.
Is this card suitable for small form factor (SFF) PC builds?
Yes. The RTX 5070 WINDFORCE OC SFF is NVIDIA SFF-ready and complies with NVIDIA's small form factor specifications. Its compact 282×110×50mm design makes it ideal for space-constrained builds.
What cooling technology does this card use?
The WINDFORCE cooling system features Hawk fans with aerodynamic design, composite copper heat pipes, a large copper plate, server-grade thermal conductive gel, and 3D Active Fan technology for semi-passive cooling. This combination provides efficient heat dissipation while minimising noise.
What power supply wattage do I need?
A minimum 750W power supply is recommended. The card uses a single 16-pin power connector and includes a 12V-2×6 to 2× PCIe 8-pin adapter.
How many monitors can I connect to this card?
The card supports 4-display multi-view output and includes 3× DisplayPort 2.1b ports and 1× HDMI 2.1b port for connecting multiple displays.
Is this card suitable for professional creative work?
Yes. With 6144 CUDA cores, Fifth-Gen Tensor Cores, and support for FP4 precision, it's well-suited for 3D rendering, video editing, AI applications, and other professional creative workflows.
What warranty is included?
The card comes with a standard 36-month warranty covering manufacturing defects.
