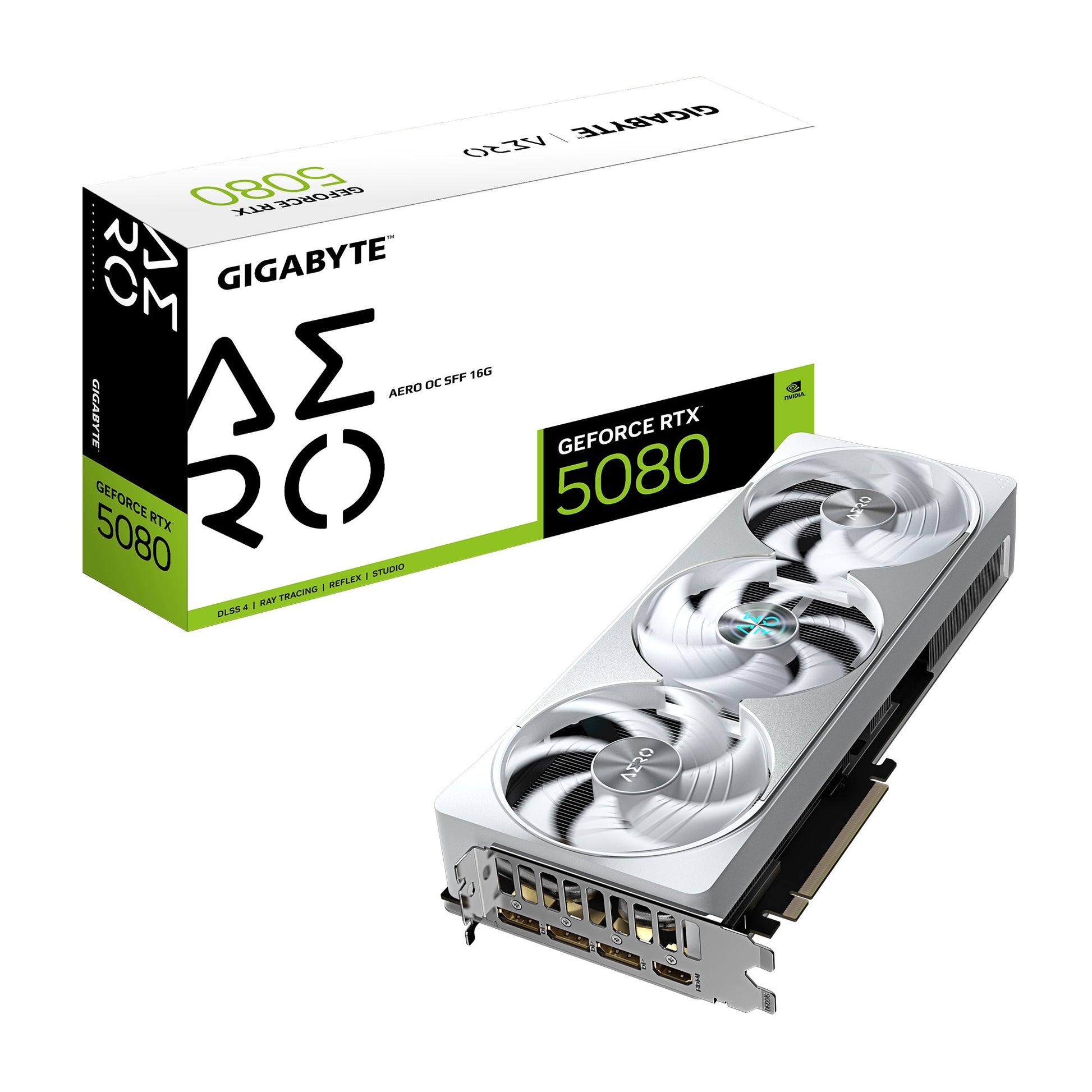

Gigabyte GeForce RTX 5080 AERO OC SFF 16GB
Gigabyte GeForce RTX 5080 AERO OC SFF 16GB
SKU:VCG-GV-N5080AEROOC-16GD
The Gigabyte GeForce RTX 5080 AERO OC SFF is a compact, high-performance graphics card designed for gaming, content creation, and AI workloads. Featuring 16GB GDDR7 memory, NVIDIA Blackwell architecture, and WINDFORCE cooling, it delivers exceptional performance in a small form factor build.
Couldn't load pickup availability
- See our return policy
- 36 months (online registration required) Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Video/Graphics Cards |
| SKU | VCG-GV-N5080AEROOC-16GD |
| Availability | In Stock |
Overview
- The Gigabyte GeForce RTX 5080 AERO OC SFF represents a significant leap in graphics performance, powered by NVIDIA's Blackwell architecture. With 10,752 CUDA cores and 16GB of ultra-fast GDDR7 memory, this card delivers exceptional performance for gaming, creative applications, and AI workloads whilst maintaining compatibility with small form factor builds.
The WINDFORCE cooling system ensures efficient heat dissipation through server-grade thermal conductive gel, Hawk fans with alternating spin directions, and a large vapor chamber. This allows sustained performance under load whilst maintaining quiet operation in Silent BIOS mode.
Built for professionals and enthusiasts, the card features PCI-E 5.0 support, multiple high-bandwidth display outputs (3× DisplayPort 2.1b, 1× HDMI 2.1b), and a reinforced structure with metal backplate. The included VGA holder provides additional support for larger builds. With 36 months warranty and NVIDIA SFF certification, this graphics card is engineered for reliability and longevity.
Specifications
| GPU | NVIDIA GeForce RTX 5080 |
|---|---|
| Architecture | NVIDIA Blackwell |
| CUDA Cores | 10,752 |
| Core Clock | 2,730 MHz |
| Memory Capacity | 16GB |
| Memory Type | GDDR7 |
| Memory Interface | 256-bit |
| Memory Speed | 30 Gbps |
| Memory Bandwidth | 960 GB/s |
| PCI Express | PCI-E 5.0 |
| Power Connectors | 1× 16-pin PCIe connector |
| Recommended PSU | 850W |
| Maximum Display Resolution | 7,680 × 4,320 |
| Multi-View Support | 4 displays |
| Display Outputs | 3× DisplayPort 2.1b, 1× HDMI 2.1b |
| Card Dimensions | 304mm (L) × 126mm (W) × 50mm (H) |
| Form Factor | ATX, NVIDIA SFF-ready |
| Cooling System | WINDFORCE with Hawk fans and vapor chamber |
| Thermal Solution | Server-grade thermal conductive gel, composite copper heat pipes |
| RGB Lighting | 16.7 million customizable colours |
| Dual BIOS | Performance and Silent modes |
| Backplate | Reinforced metal with bent edge design |
| DirectX Support | DirectX 12 |
| OpenGL Support | OpenGL 4.6 |
| Ray Tracing | Fourth-generation ray tracing cores |
| Tensor Cores | Fifth-generation |
| Warranty | 36 months (online registration required) |
Key Features
Ideal For
FAQs
What is NVIDIA Blackwell architecture and how does it improve performance?
NVIDIA Blackwell is the latest GPU architecture powering the RTX 5080. It features fifth-generation Tensor Cores optimised for AI and DLSS 4, new streaming multiprocessors for neural shaders, and fourth-generation ray tracing cores for advanced geometry handling. These improvements deliver superior performance in gaming, content creation, and AI workloads.
Is the RTX 5080 AERO OC SFF suitable for small form factor builds?
Yes. This card is NVIDIA SFF-ready and complies with small form factor specifications. At 304mm in length, it's designed to fit compact builds without sacrificing performance. The included VGA holder provides additional structural support in tight spaces.
What is the recommended power supply for this graphics card?
Gigabyte recommends a minimum 850W power supply. The card uses a single 16-pin PCIe power connector and an adapter is included in the box.
Can I control the RGB lighting on this card?
Yes. The RTX 5080 features 16.7 million customisable colours and numerous lighting effects. Lighting can be controlled individually or synchronised with other compatible devices using GIGABYTE CONTROL CENTER.
What cooling features does the WINDFORCE system provide?
The WINDFORCE cooling system includes server-grade thermal conductive gel, Hawk fans with alternating spin directions for optimised airflow, composite copper heat pipes, a large vapour chamber, and 3D active fans. This combination delivers exceptional thermal performance and supports both Performance and Silent BIOS modes.
How many displays can this graphics card support?
The RTX 5080 supports up to 4 simultaneous displays with a maximum resolution of 7,680 × 4,320. It includes 3× DisplayPort 2.1b and 1× HDMI 2.1b connectors.
Does this card include any accessories?
Yes. The RTX 5080 AERO OC SFF includes a user manual, warranty notice, a 12V-to-3× PCIe 8-pin power adapter, and a versatile VGA holder with manual for additional structural support.
What is the warranty coverage for this graphics card?
The RTX 5080 AERO OC SFF includes a 36-month warranty. Online registration is required to activate the full warranty period.
