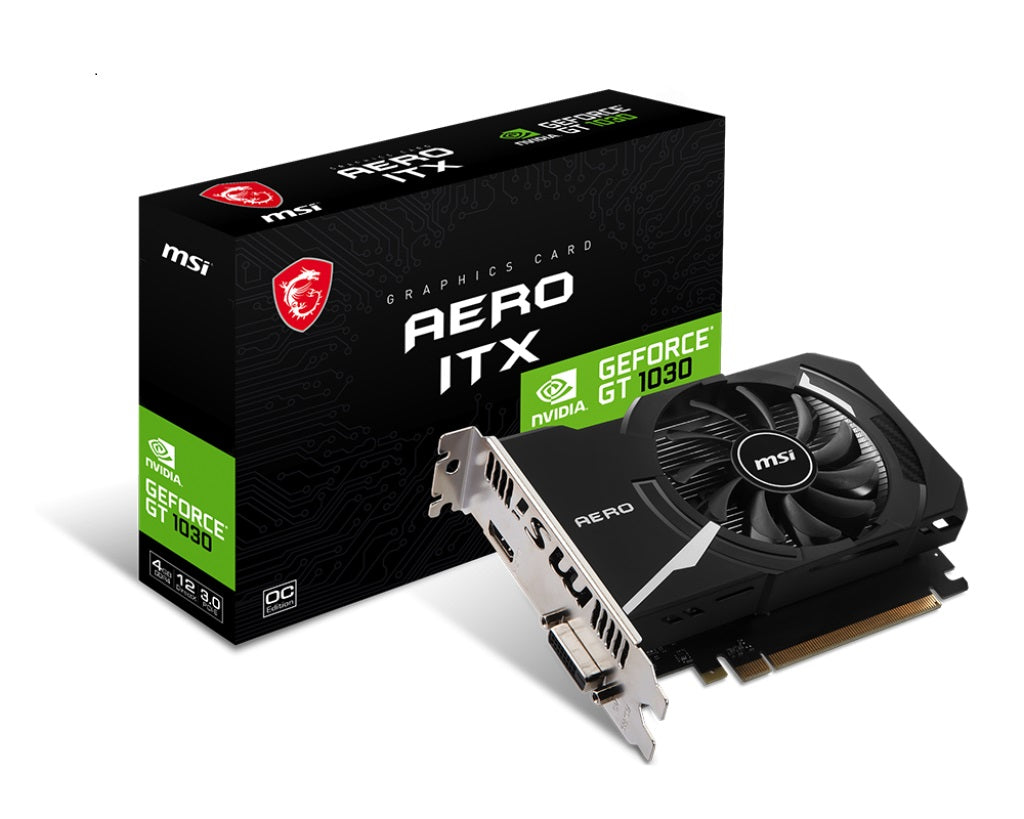

MSI GeForce GT 1030 AERO ITX 4GD4 OC Graphics Card
MSI GeForce GT 1030 AERO ITX 4GD4 OC Graphics Card
SKU:VCM-GT1030AITX4GD4OC
The MSI GeForce GT 1030 AERO ITX 4GD4 OC is a compact graphics card designed for small-form-factor builds and office workstations. Featuring 4GB DDR4 memory, a 1430 MHz boost clock, and dual display outputs, it delivers efficient performance with minimal power consumption for business computing and light multimedia tasks.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | MSI |
|---|---|
| Category | Video/Graphics Cards |
| SKU | VCM-GT1030AITX4GD4OC |
| Availability | In Stock |
Overview
- The MSI GeForce GT 1030 AERO ITX 4GD4 OC is a power-efficient graphics card engineered for space-constrained environments. With just 20W power consumption, it's ideal for compact builds where thermal management and cable routing are critical constraints.
Features include 4GB of DDR4 memory, a 1430 MHz boost clock, and support for two displays simultaneously via HDMI 2.0 and DVI-D outputs. The card uses PCIe 3.0 x16 (operating at x4), making it compatible with most modern motherboards.
Built with all solid capacitors and an aluminium core, the card is designed for durability. MSI's Afterburner overclocking utility provides users with fine-tuning capabilities, whilst GeForce Experience ensures automatic driver updates and game-ready optimisation.
With a 36-month warranty and minimal power requirements, this is a practical choice for businesses upgrading office systems or integrating graphics capability into space-limited deployments.
Specifications
| GPU | NVIDIA GeForce GT 1030 |
|---|---|
| Interface | PCIe 3.0 x16 (operates at x4) |
| Memory | 4GB DDR4 |
| Memory Speed | 2100 MHz |
| Memory Bus | 64-bit |
| CUDA Cores | 384 |
| Boost Clock | 1430 MHz |
| Power Consumption | 20W |
| Recommended PSU | 300W |
| Display Outputs | 1x HDMI 2.0 (4K@60Hz), 1x DVI-D |
| Maximum Displays | 2 |
| HDCP Support | 2.2 |
| DirectX Support | 12 |
| OpenGL Support | 4.5 |
| Physical Dimensions | 147 x 102 x 38 mm |
| Card Weight | 281g |
| Package Weight | 507g |
| Warranty | 36 months |
| Features | All solid capacitors, aluminium core, MSI Afterburner overclocking utility |
Key Features
Ideal For
FAQs
Is the MSI GT 1030 suitable for gaming?
The GT 1030 is designed for general computing and light multimedia tasks rather than modern gaming. It can handle older titles and esports games at lower settings, but it's not recommended for demanding contemporary games.
What is the power consumption, and do I need a new PSU?
The card consumes just 20W and requires a 300W minimum PSU. Most existing office systems already meet this requirement, eliminating the need for power supply upgrades.
Can this card support dual monitors?
Yes. The GT 1030 has two display outputs: one HDMI 2.0 and one DVI-D, allowing you to connect two monitors simultaneously.
What makes the ITX form factor important?
The ITX form factor makes this card compact enough to fit in small-form-factor cases, HTPCs, and space-constrained builds where full-size graphics cards won't fit.
Does the card require external power connectors?
No. The GT 1030 draws power directly from the PCIe slot, so no additional power connectors are needed.
What is covered by the 36-month warranty?
The 36-month warranty covers manufacturing defects and hardware failures. For specific warranty terms and conditions, please contact Hyetech Australia.
