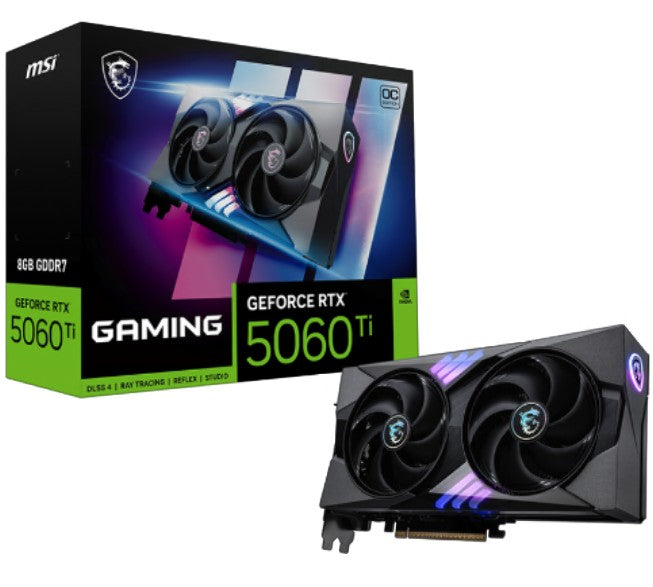

MSI GeForce RTX 5060 Ti 8G GAMING OC Graphics Card
MSI GeForce RTX 5060 Ti 8G GAMING OC Graphics Card
SKU:VCM-RTX5060T8GGAMINGOC
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | MSI |
|---|---|
| Category | Video/Graphics Cards |
| SKU | VCM-RTX5060T8GGAMINGOC |
| Availability | In Stock |
Overview
- The MSI GeForce RTX 5060 Ti 8G GAMING OC delivers solid performance for modern gaming and content creation. With 4608 CUDA cores and 8GB of fast GDDR7 memory, this card handles 1440p gaming smoothly and scales to 4K workloads. The Twin Frozr 10 cooling system uses precision-engineered fans and a nickel-plated copper baseplate to maintain optimal temperatures while keeping noise minimal, making it suitable for both gaming rigs and professional workstations.
The PCIe Gen 5 interface ensures maximum bandwidth, while support for DisplayPort 2.1b and HDMI 2.1b provides connectivity for high-resolution displays. G-SYNC technology eliminates screen tearing for a superior gaming experience. MSI's Centre software and Afterburner compatibility give users full control over performance tuning and monitoring.
Specifications
| GPU | NVIDIA GeForce RTX 5060 Ti |
|---|---|
| CUDA Cores | 4608 Units |
| Memory | 8GB GDDR7 |
| Memory Bus | 128-bit |
| Memory Speed | 28 Gbps |
| Boost Clock | 2647 MHz |
| Extreme Performance Clock | 2662 MHz |
| Interface | PCI Express Gen 5 x16 (uses x8) |
| Power Consumption | 180 W |
| Power Connectors | 16-pin x 1 |
| Recommended PSU | 600 W |
| Video Outputs | DisplayPort 2.1b x3, HDMI 2.1b x1 |
| Maximum Displays | 4 |
| HDCP Support | Yes |
| G-SYNC Support | Yes |
| Maximum Digital Resolution | 7680 x 4320 |
| DirectX Support | 12 Ultimate |
| OpenGL Support | 4.6 |
| Card Dimensions | 247 x 135 x 51 mm |
| Card Weight | 768 g |
| Package Weight | 1219 g |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What power supply do I need for the RTX 5060 Ti 8G?
MSI recommends a 600W power supply. The card has a maximum power consumption of 180W and requires a single 16-pin connector.
Is this card compatible with PCIe Gen 4 motherboards?
Yes, the RTX 5060 Ti is backward compatible with PCIe Gen 4 motherboards. It will operate at Gen 4 speeds if installed in a Gen 4 slot.
How many monitors can I connect to this graphics card?
This card supports up to 4 displays simultaneously via its three DisplayPort 2.1b outputs and one HDMI 2.1b output.
What cooling technology does the Twin Frozr 10 use?
Twin Frozr 10 features precision-engineered StormForce fans, a nickel-plated copper baseplate, core pipes with square design, and Wave Curved 4.0 fins to optimise airflow and manage thermal performance efficiently.
Can I overclock this graphics card?
Yes, the MSI GeForce RTX 5060 Ti supports overclocking via MSI Centre software and Afterburner, giving you full control over performance tuning.
What is the maximum resolution supported?
This card supports up to 7680 x 4320 resolution on HDMI 2.1b, and can deliver 4K at 480Hz or 8K at 120Hz with DSC enabled.
Does this card support ray tracing and DLSS?
As an RTX 5060 Ti, this card supports NVIDIA's ray tracing and DLSS technologies for improved graphics and performance in supported games.
