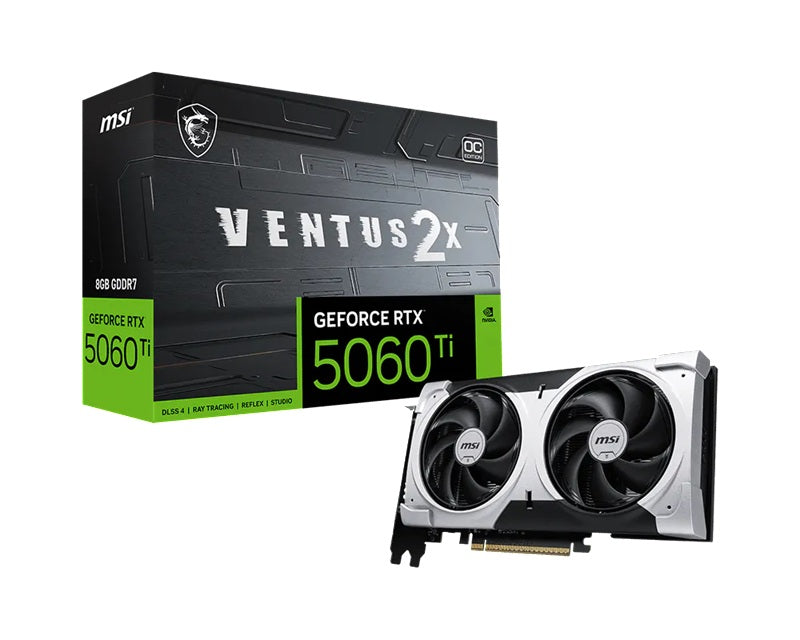

MSI GeForce RTX 5060 Ti 8G VENTUS 2X OC PLUS
MSI GeForce RTX 5060 Ti 8G VENTUS 2X OC PLUS
SKU:VCM-RTX5060T8GVENT2XOCPL
The MSI GeForce RTX 5060 Ti 8G VENTUS 2X OC PLUS is a high-performance graphics card designed for gaming, content creation, and professional workloads. Featuring 8GB GDDR7 memory, PCI Express Gen 5 connectivity, and dual fan cooling, it delivers excellent thermal performance and reliability for demanding applications.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | MSI |
|---|---|
| Category | Video/Graphics Cards |
| SKU | VCM-RTX5060T8GVENT2XOCPL |
| Availability | In Stock |
Overview
- The MSI GeForce RTX 5060 Ti 8G VENTUS 2X OC PLUS combines NVIDIA's latest GPU architecture with MSI's trusted cooling and power delivery technology. With 4608 CUDA cores and 8GB of fast GDDR7 memory, this card handles demanding gaming and professional workloads with excellent thermal efficiency.
The VENTUS 2X OC design features a reinforced backplate and dual STORMFORCE fans with claw texturing for optimal airflow with minimal noise. Zero Frozr technology disables the fans during light workloads, eliminating unnecessary noise when you don't need peak cooling.
Connectivity includes three DisplayPort 2.1b outputs and one HDMI 2.1b port, supporting up to four simultaneous displays. The card supports G-SYNC technology for tear-free gaming and delivers excellent performance across gaming and professional applications.
With only 180W power consumption and a recommended 600W PSU, this card integrates easily into most modern systems. Backed by a three-year warranty and supported by MSI Center software for monitoring and optimisation, it's a reliable choice for users seeking proven performance and build quality.
Specifications
| GPU | NVIDIA GeForce RTX 5060 Ti |
|---|---|
| CUDA Cores | 4608 |
| Memory | 8GB GDDR7 |
| Memory Interface | 128-bit |
| Memory Speed | 28 Gbps |
| Interface | PCI Express Gen 5 x16 (x8) |
| Core Clock | 2617 MHz (Extreme Performance) |
| Boost Clock | 2602 MHz |
| Power Consumption | 180W |
| Power Connector | 8-pin x1 |
| Recommended PSU | 600W |
| Video Outputs | DisplayPort 2.1b x3, HDMI 2.1b x1 |
| Maximum Displays | 4 |
| Maximum Resolution | 7680 x 4320 |
| HDCP Support | Yes |
| G-SYNC | Yes |
| DirectX Support | 12 Ultimate |
| OpenGL Support | 4.6 |
| Card Dimensions | 227 x 126 x 41 mm |
| Card Weight | 573g |
| Package Weight | 834g |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What is the power consumption of the RTX 5060 Ti VENTUS 2X OC PLUS?
The card has a maximum power consumption of 180W and requires a single 8-pin power connector. MSI recommends a 600W or higher power supply for optimal stability.
Does this graphics card support multiple monitors?
Yes, the RTX 5060 Ti VENTUS 2X OC PLUS supports up to four simultaneous displays via three DisplayPort 2.1b outputs and one HDMI 2.1b output, supporting resolutions up to 8K 120Hz.
What cooling technology does the VENTUS 2X design use?
The card features dual STORMFORCE fans with claw texturing for efficient airflow, a large heatsink, Zero Frozr technology (fans stop at low temperatures), and a reinforced backplate with flow-through design for additional ventilation.
Is this card suitable for gaming and professional work?
Yes, the RTX 5060 Ti is designed for both gaming and professional applications including 3D content creation, video editing, rendering, and CAD work, thanks to its 4608 CUDA cores and 8GB memory.
What warranty is included with this graphics card?
The MSI GeForce RTX 5060 Ti VENTUS 2X OC PLUS includes a three-year manufacturer's warranty covering defects in materials and workmanship.
Does the card support ray tracing and DLSS?
The RTX 5060 Ti supports DirectX 12 Ultimate and NVIDIA's ray tracing and DLSS technologies, enabling advanced visual effects and performance optimisation in supported games.
What software tools are included for monitoring and overclocking?
MSI includes MSI Center for real-time monitoring and optimisation of card performance, and supports NVIDIA's Afterburner software for advanced overclocking and customisation.
