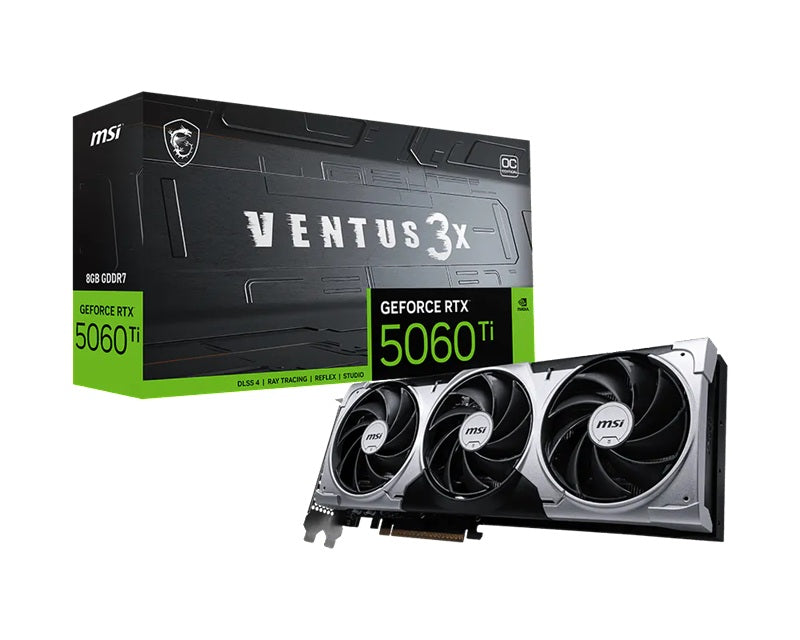

MSI GeForce RTX 5060 Ti 8G VENTUS 3X OC
MSI GeForce RTX 5060 Ti 8G VENTUS 3X OC
SKU:VCM-RTX5060T8GVENTUS3XOC
The MSI GeForce RTX 5060 Ti 8G VENTUS 3X OC is a high-performance graphics card featuring 8GB GDDR7 memory, 4608 CUDA cores, and advanced cooling. Delivering excellent performance for gaming and professional applications, it offers efficient power consumption and comprehensive software control.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | MSI |
|---|---|
| Category | Video/Graphics Cards |
| SKU | VCM-RTX5060T8GVENTUS3XOC |
| Availability | In Stock |
Overview
- The MSI GeForce RTX 5060 Ti 8G VENTUS 3X OC combines NVIDIA's latest architecture with MSI's proven cooling expertise. With 4608 CUDA cores and 8GB of fast GDDR7 memory, it delivers strong performance across gaming and professional applications while maintaining efficient power consumption.
The VENTUS 3X cooling design features triple TORX FAN 5.0 blades, a solid baseplate for optimal heat transfer, and a flow-through backplate. Zero Frozr technology keeps the card silent during light workloads by stopping fans when temperatures are low, while DrMOS power stages ensure stable, efficient operation.
Full connectivity includes three DisplayPort 2.1b outputs and one HDMI 2.1b port, supporting up to four displays at resolutions up to 7680 x 4320. G-SYNC technology is included for tear-free gaming. The card is backed by 36 months' warranty and includes MSI Center software for real-time monitoring and tuning, plus support for Afterburner overclocking software.
Specifications
| Brand | MSI |
|---|---|
| GPU | NVIDIA GeForce RTX 5060 Ti |
| Model | G506T-8V3C |
| Memory | 8GB GDDR7 |
| Memory Bus | 128-bit |
| Memory Speed | 28 Gbps |
| CUDA Cores | 4608 |
| Base Clock | Not specified |
| Boost Clock | 2602 MHz |
| Extreme Performance Clock | 2617 MHz (MSI Center) |
| Interface | PCI Express Gen 5 x16 (uses x8) |
| Power Consumption | 180W |
| Power Connector | 8-pin x1 |
| Recommended PSU | 600W |
| Video Outputs | DisplayPort 2.1b x3, HDMI 2.1b x1 |
| Maximum Displays | 4 |
| Maximum Resolution | 7680 x 4320 |
| DirectX Support | 12 Ultimate |
| OpenGL Support | 4.6 |
| G-SYNC Support | Yes |
| HDCP Support | Yes |
| Dimensions | 304 x 121 x 44 mm |
| Card Weight | 793g |
| Package Weight | 1162g |
| Cooling Solution | Triple TORX FAN 5.0, solid baseplate, flow-through backplate |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What is the power consumption of the MSI RTX 5060 Ti VENTUS 3X OC?
The card consumes 180W and requires a single 8-pin power connector. MSI recommends a minimum 600W power supply for system stability.
How many CUDA cores does the RTX 5060 Ti have?
The RTX 5060 Ti features 4608 CUDA cores, which handle parallel processing for gaming, rendering, and AI-accelerated workloads.
What cooling features does the VENTUS 3X design include?
The VENTUS 3X includes three TORX FAN 5.0 fans, a solid baseplate for heat transfer to multiple heat pipes, a reinforcing backplate with flow-through design, and Zero Frozr technology that stops fans during low-temperature operation for silent performance.
Does this card support high-refresh-rate gaming?
Yes. The RTX 5060 Ti includes G-SYNC technology support and multiple high-bandwidth connectors (three DisplayPort 2.1b and one HDMI 2.1b) suitable for high-refresh gaming monitors.
What software is included for monitoring and overclocking?
MSI Center is included for real-time monitoring, system tuning, and optimisation of MSI products. The card is compatible with MSI Afterburner, the industry-standard overclocking software.
Can the RTX 5060 Ti drive multiple monitors?
Yes. The card supports up to four displays simultaneously via its three DisplayPort 2.1b and one HDMI 2.1b outputs, with maximum resolution support of 7680 x 4320.
Is this card suitable for content creation?
Yes. The 4608 CUDA cores, 8GB GDDR7 memory, and support for DirectX 12 Ultimate and OpenGL 4.6 make it well-suited for video editing, 3D rendering, and professional visualisation tasks.
What warranty does the MSI RTX 5060 Ti include?
The card includes a 36-month manufacturer's warranty covering defects in materials and workmanship.
