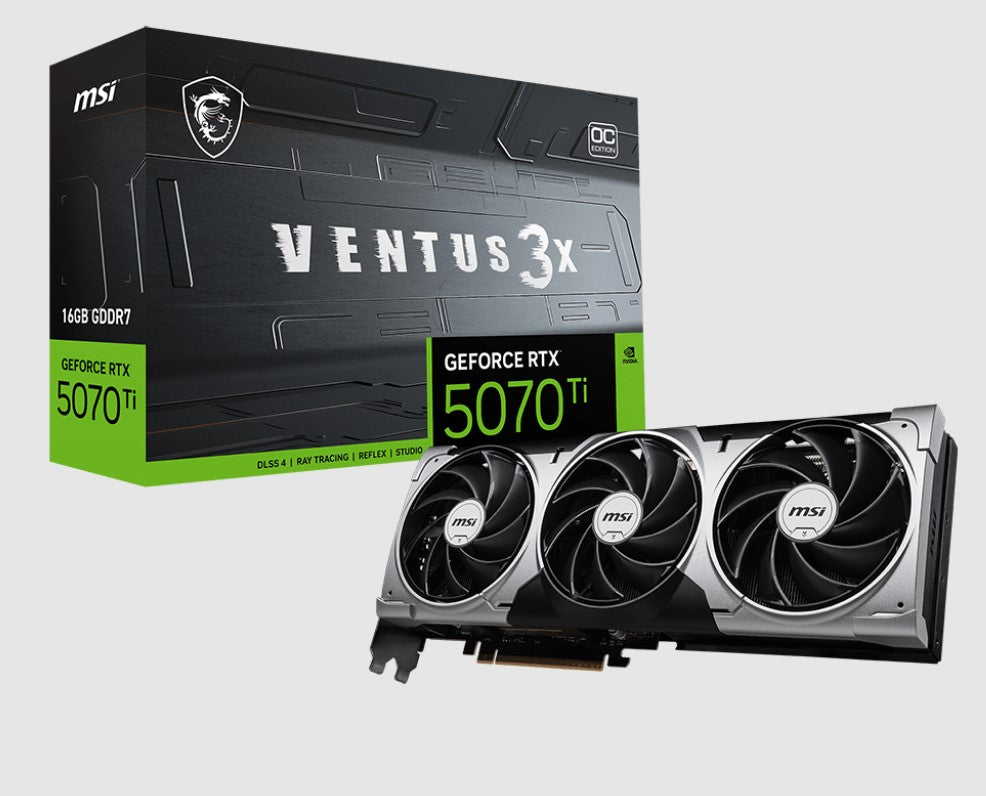

MSI GeForce RTX 5070 Ti 16G VENTUS 3X OC Graphics Card
MSI GeForce RTX 5070 Ti 16G VENTUS 3X OC Graphics Card
SKU:VCM-RTX5070T16GVENTUS3XOC
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | MSI |
|---|---|
| Category | Video/Graphics Cards |
| SKU | VCM-RTX5070T16GVENTUS3XOC |
| Availability | In Stock |
Overview
- The MSI GeForce RTX 5070 Ti 16G VENTUS 3X OC is engineered for demanding applications requiring substantial compute power. With 8960 CUDA cores and 16GB GDDR7 memory, it delivers consistent performance across professional workloads and intensive gaming scenarios.
The VENTUS 3X cooling solution features triple TORX FAN 5.0 fans paired with a square-design core pipes system, nickel-plated copper baseplate, and metal backplate for optimal thermal management. Zero Frozr technology stops the fans during low-temperature periods, reducing noise without compromising performance.
Supporting PCIe Gen 5, the card operates at up to 2497 MHz (extreme performance mode) with a recommended 750W PSU. It provides four simultaneous display outputs via three DisplayPort 2.1b connectors and one HDMI 2.1b connector, supporting resolutions up to 8K 120Hz with DSC. The included MSI Center software and AfterBurner support enable real-time monitoring and overclocking customisation.
Specifications
| Brand | MSI |
|---|---|
| Manufacturer | NVIDIA |
| Model | GeForce RTX 5070 Ti 16G VENTUS 3X OC |
| Product Code | G507T-16V3C |
| GPU | NVIDIA GeForce RTX 5070 Ti |
| Interface | PCI Express Gen 5 |
| CUDA Cores | 8960 |
| Memory | 16GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Bus | 256-bit |
| Core Clock (Boost) | 2482 MHz |
| Core Clock (Extreme Performance) | 2497 MHz |
| Power Consumption | 300W |
| Power Connector | 16-pin x1 |
| Recommended PSU | 750W |
| Video Outputs | DisplayPort 2.1b x3, HDMI 2.1b x1 |
| Maximum Displays | 4 |
| Maximum Resolution | 7680 x 4320 |
| DirectX Support | 12 Ultimate |
| OpenGL Support | 4.6 |
| G-SYNC | Yes |
| HDCP Support | Yes |
| Cooling | Triple TORX FAN 5.0 |
| Thermal Design | Nickel-plated copper baseplate, core pipes, metal backplate |
| Dimensions | 303 x 121 x 49 mm |
| Weight (Card) | 1073 g |
| Weight (Package) | 1566 g |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What is the maximum power consumption of the MSI RTX 5070 Ti VENTUS 3X OC?
The card has a maximum power consumption of 300W and requires a minimum 750W power supply.
How many CUDA cores does this graphics card have?
The RTX 5070 Ti features 8960 CUDA cores for parallel processing in graphics and compute applications.
What video outputs are available on this card?
The card provides three DisplayPort 2.1b connectors and one HDMI 2.1b connector, supporting up to 4 simultaneous displays.
Does the card support 8K resolution?
Yes, the card supports up to 8K 120Hz resolution with DSC via HDMI 2.1b, and maximum digital resolution of 7680 x 4320.
What cooling technology does the VENTUS 3X feature?
The VENTUS 3X features triple TORX FAN 5.0 fans with Zero Frozr technology, a nickel-plated copper baseplate, square-design core pipes, and a metal backplate for efficient thermal management.
Can I overclock this graphics card?
Yes, the card supports overclocking via MSI AfterBurner software and MSI Center, which provides real-time monitoring and tuning capabilities.
Is the RTX 5070 Ti suitable for professional content creation?
Yes, with 8960 CUDA cores and 16GB GDDR7 memory, it is suitable for 3D rendering, video editing, AI training, and other compute-intensive professional workloads.
