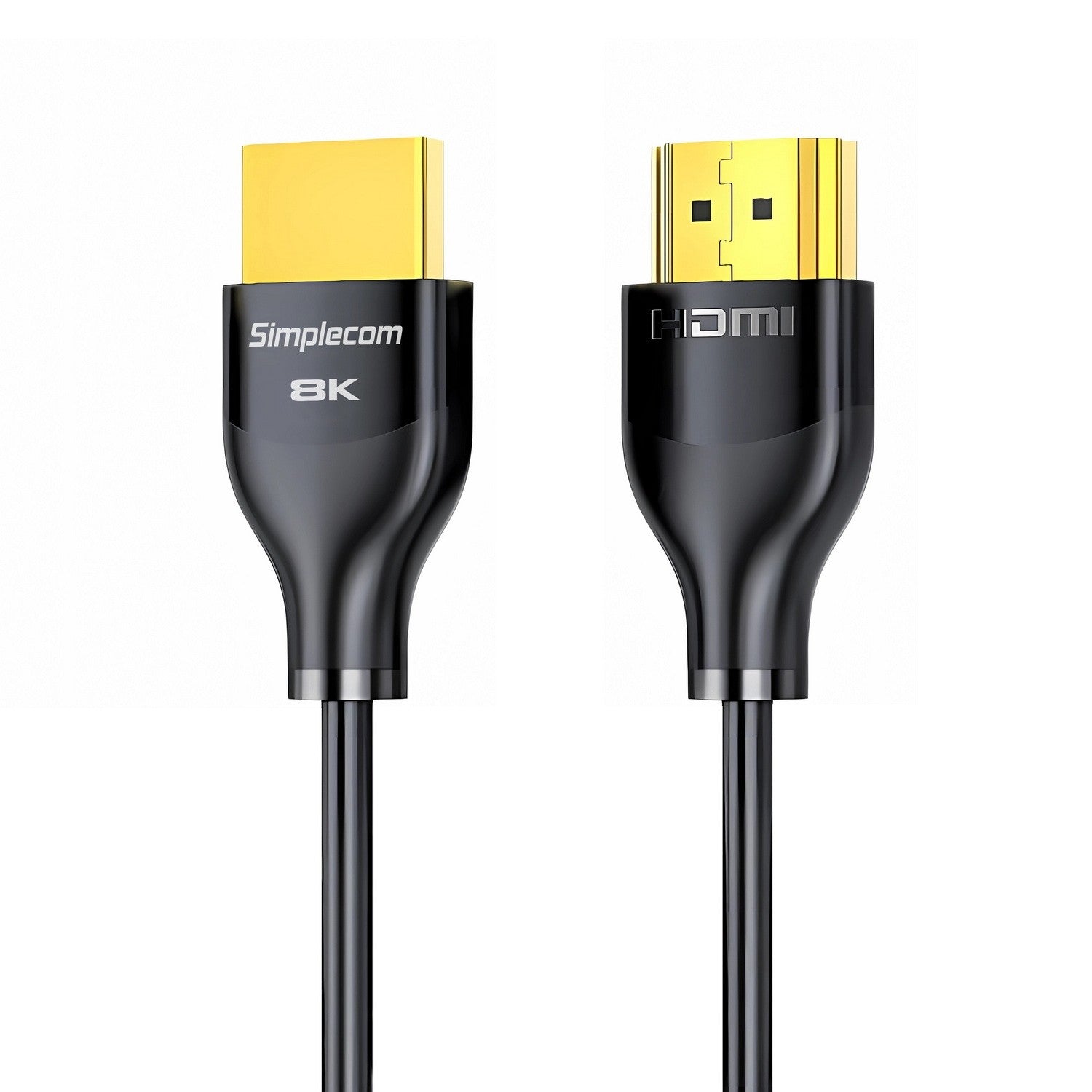

Simplecom CAH510 Ultra High Speed HDMI 2.1 Cable 1M
Simplecom CAH510 Ultra High Speed HDMI 2.1 Cable 1M
SKU:CBSI-CAH510-1M
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | Cables |
| SKU | CBSI-CAH510-1M |
| Availability | In Stock |
Overview
- The Simplecom CAH510 is a premium HDMI 2.1 cable engineered for next-generation video and audio systems. Built to HDMI 2.1 specifications, it delivers the full 48Gbps bandwidth required for 8K@60Hz and 4K@120Hz resolutions with high-bitrate audio formats including Dolby Atmos and DTS:X.
Advanced shielding technology combines graphene and aluminium foil to minimise electromagnetic interference whilst maintaining signal integrity across longer runs. Gold-plated connectors provide reliable, corrosion-resistant connections, and the slim 5mm diameter construction simplifies installation in tight spaces and cable trays.
Fully backwards compatible with earlier HDMI standards, the CAH510 works with existing devices whilst providing the bandwidth headroom for current and future 8K content. Support for eARC, HDMI Ethernet Channel, and extended CEC functions makes it ideal for modern home theatre systems, gaming consoles, and professional AV installations.
With a 12-month warranty and proven durability in demanding installations, the Simplecom CAH510 is a reliable choice for organisations and enthusiasts requiring premium HDMI connectivity.
Specifications
| HDMI Version | HDMI 2.1 (backwards compatible) |
|---|---|
| Bandwidth | 48Gbps |
| Maximum Resolution Support | 8K@60Hz (4320 × 7680), 4K@120Hz (2160 × 3840) |
| Cable Length | 1 metre |
| Cable Diameter | 5mm |
| Cable Jacket | PVC |
| Conductor Material | Copper |
| Conductor Gauge | 32AWG |
| Connector Plating | Gold plated |
| Shielding | Graphene + aluminium foil |
| Operating Temperature Range | -20°C to +60°C |
| Supported Audio Formats | Dolby TrueHD, Dolby Atmos, DTS:X |
| Additional Features | eARC, HDMI Ethernet Channel, Extended CEC functions, Dynamic HDR |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
Is the Simplecom CAH510 compatible with older HDMI devices?
Yes. The CAH510 is fully backwards compatible with all previous HDMI versions. It will work with HDMI 1.4, 2.0, and 2.0b devices, though they will operate at their native bandwidth and resolution capabilities.
What is the maximum resolution this cable supports?
The CAH510 supports 8K@60Hz (4320 × 7680) and 4K@120Hz (2160 × 3840) resolutions, thanks to its 48Gbps bandwidth capacity.
Why does this cable use graphene shielding?
Graphene shielding combined with aluminium foil provides superior electromagnetic interference (EMI) protection whilst maintaining flexibility. This ensures stable signal quality over distance and in environments with multiple electronic devices.
Can the CAH510 handle high-bitrate audio formats?
Yes. The cable supports high-bitrate audio formats including Dolby TrueHD, Dolby Atmos, and DTS:X, as well as eARC functionality for compatible devices.
Is the 5mm diameter suitable for my installation?
The slim 5mm diameter makes the CAH510 easier to route through cable trays, conduits, and tight spaces compared to standard HDMI cables. It's ideal for both residential and professional installations where cable management is important.
What warranty does the CAH510 include?
The Simplecom CAH510 includes a 12-month manufacturer's warranty covering defects in materials and workmanship.
Does this cable support CEC and eARC?
Yes. The CAH510 supports extended CEC (Consumer Electronics Control) functions, HDMI Ethernet Channel, and eARC for enhanced device integration and audio return functionality.
