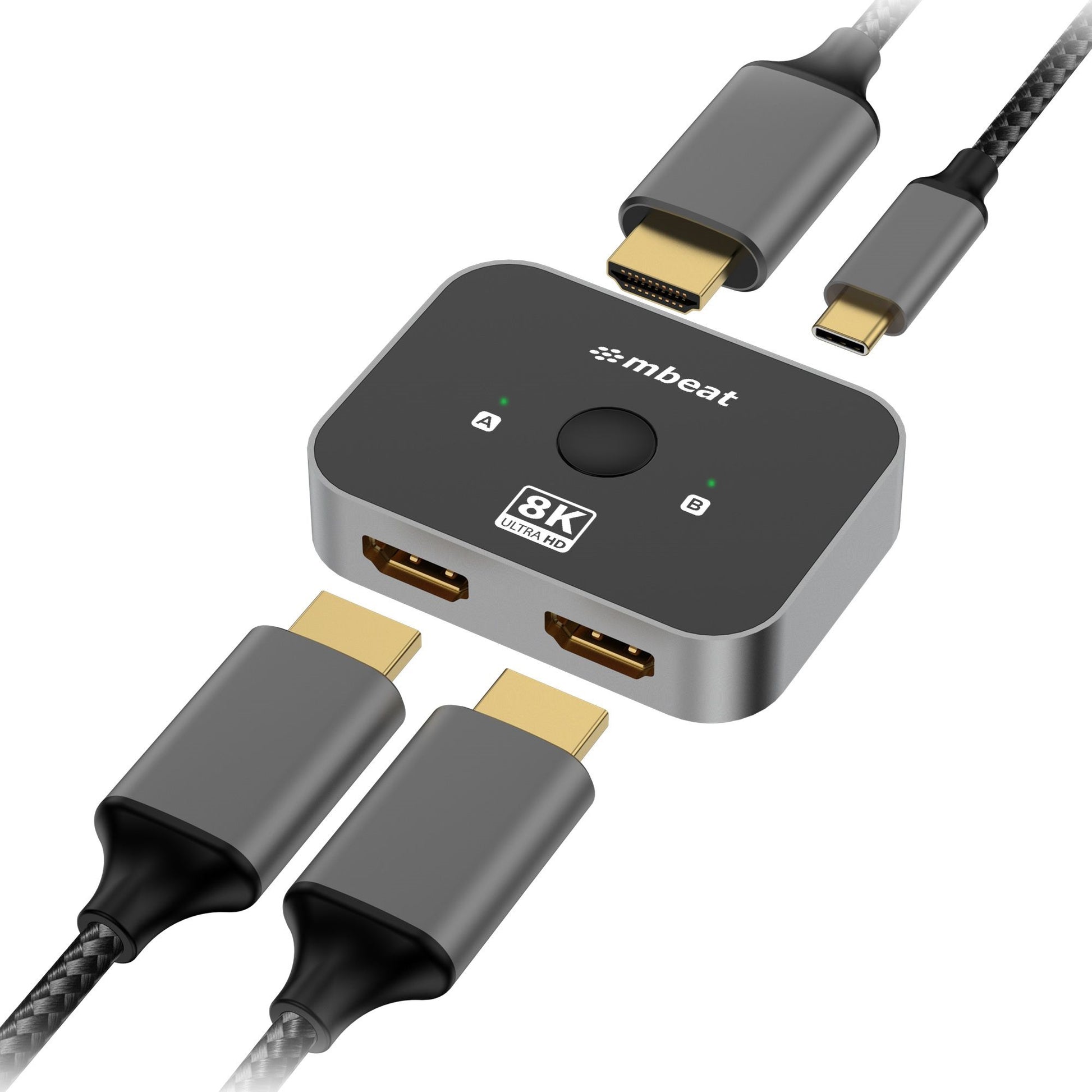

mbeat 8K Bi-Directional HDMI 2.1 Switch
mbeat 8K Bi-Directional HDMI 2.1 Switch
SKU:USMB-MB-HDMI-SW8K21
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | MBEAT |
|---|---|
| Category | USB, Bluetooth & IEEE |
| SKU | USMB-MB-HDMI-SW8K21 |
| Availability | In Stock |
Overview
- The mbeat 8K Bi-Directional HDMI 2.1 Switch is a compact, flexible connectivity solution for environments where multiple HDMI sources or displays need to be managed. It allows you to either switch between two sources feeding one display, or route a single source to two separate displays—ideal for dynamic AV setups.
Built with durable aluminium construction and featuring HDMI 2.1 compatibility, it supports high-resolution video up to 8K@60Hz, 4K@144Hz/120Hz/60Hz, and 1080P@240Hz. The USB-C power input ensures stable signal transmission, even when HDMI ports cannot provide sufficient power.
With plug-and-play operation and no external drivers needed, the switch integrates seamlessly into existing AV ecosystems. It works with a wide range of devices including gaming consoles (PS5, PS4 Pro, Xbox Series X/S), streaming devices (Apple TV, Fire Stick, Roku), and professional displays (TVs, projectors, monitors).
Note: When functioning as a 1-input to 2-output splitter, only one display can show video at a time.
Specifications
| HDMI Standard | HDMI 2.1 (backward compatible with HDMI 2.0) |
|---|---|
| Maximum Resolution | 8K@60Hz |
| Supported Resolutions | 8K@60Hz, 4K@144Hz, 4K@120Hz, 4K@60Hz, 1080P@240Hz |
| Functionality | 2 In 1 Out (Switcher) / 1 In 2 Out (Splitter) |
| Power Input | 5V USB-C |
| Device Dimensions | 5cm × 6.5cm × 1.5cm |
| Device Weight | 45g |
| Package Dimensions | 12cm × 7.5cm × 2.5cm |
| Package Weight | 58.2g |
| Warranty | 12 months |
| Compatible Inputs | PS5, PS4 Pro, Xbox Series X/S, Nintendo DS, Apple TV, Fire Stick, Roku, DVD players |
| Compatible Outputs | TV screens, projectors, monitors |
Key Features
Ideal For
FAQs
Can I use both output displays simultaneously when in splitter mode?
No. When functioning as a 1-input to 2-output splitter, only one display can show video at a time. You must select which output receives the signal.
Does the HDMI switch require external drivers?
No. The mbeat HDMI switch is plug-and-play. Simply connect it and use the button to select your desired source or output—no driver installation is needed.
What resolutions does this switch support?
It supports up to 8K@60Hz, 4K@144Hz, 4K@120Hz, 4K@60Hz, and 1080P@240Hz. Full HDMI 2.1 compatibility ensures support for the latest high-resolution formats.
Why does the switch need USB-C power?
The USB-C power input provides additional power to ensure stable signal transmission, particularly in scenarios where HDMI ports alone cannot supply sufficient power for optimal performance.
Is this switch backward compatible with older HDMI devices?
Yes. The switch is backward compatible with HDMI 2.0 devices, making it suitable for both legacy and modern equipment.
What devices can I connect to this switch?
You can connect gaming consoles (PS5, PS4 Pro, Xbox Series X/S), streaming devices (Apple TV, Fire Stick, Roku), media players, and standard HDMI-equipped devices. Outputs support TVs, projectors, and monitors.
How compact is the mbeat HDMI switch?
The device measures just 5cm × 6.5cm × 1.5cm and weighs 45g, making it highly portable and easy to integrate into tight AV setups.
