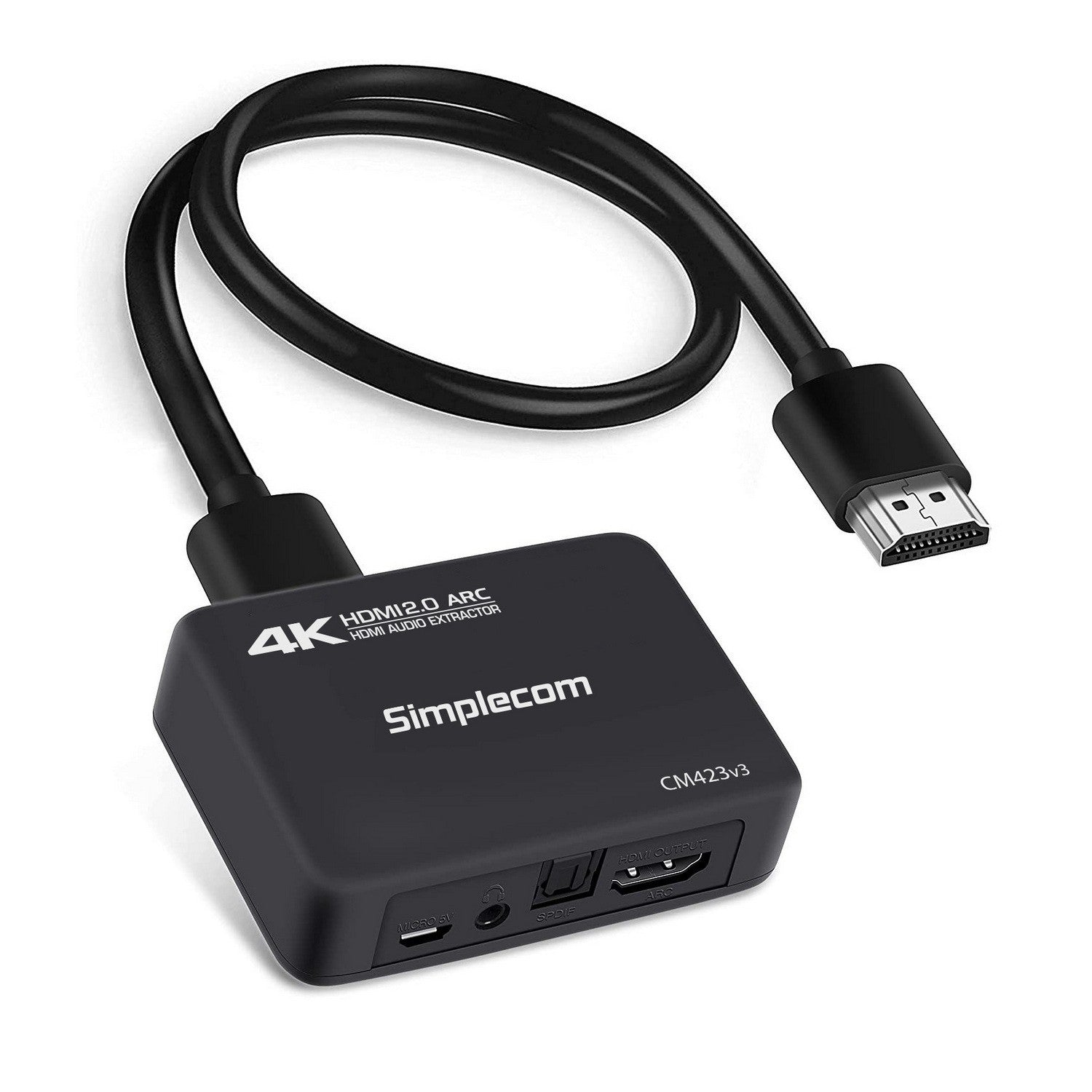

Simplecom CM423v3 HDMI Audio Extractor with Optical SPDIF
Simplecom CM423v3 HDMI Audio Extractor with Optical SPDIF
SKU:CBSI-CM423V3
The Simplecom CM423v3 is an HDMI audio extractor designed for extracting audio from HDMI sources and ARC-enabled TVs. Featuring dual audio outputs (optical SPDIF and 3.5mm stereo), 4K@60Hz video pass-through, and USB power, it delivers seamless audio routing for external speaker systems.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | Cables |
| SKU | CBSI-CM423V3 |
| Availability | In Stock |
Overview
- The Simplecom CM423v3 HDMI audio extractor solves a common problem: connecting modern HDMI video sources to audio equipment that lacks HDMI inputs. It extracts embedded audio from HDMI signals or directly from an ARC-enabled TV, then routes that audio to either optical or analogue outputs whilst passing the video through unchanged.
This adapter is HDMI 2.0b compliant and handles 4K@60Hz video resolutions without degradation, making it suitable for 4K gaming, streaming, and home theatre applications. It supports both compressed audio formats (DTS-HD, Dolby TrueHD, Dolby Digital) and uncompressed formats (PCM, LPCM), ensuring broad compatibility with modern content and audio systems.
Powered by a standard USB connection (5V/1A), the CM423v3 can draw power from a wall charger or directly from a TV's USB port, eliminating the need for additional power adapters. Its compact design allows it to sit discreetly behind entertainment systems without occupying much space.
Specifications
| HDMI Standard | HDMI 2.0b (backwards compatible) |
|---|---|
| Video Resolution Support | 480i/480p/576i/576p/720p/1080i/1080p/4K@60Hz |
| HDMI Input | 1x HDMI |
| HDMI Output | 1x HDMI (pass-through) |
| Audio Outputs | 1x optical SPDIF, 1x 3.5mm stereo analogue |
| ARC Support | Yes (with switch) |
| 3D Support | Yes |
| HDCP Version | HDCP 2.2 |
| Bandwidth | 18Gbps |
| Max Bandwidth Frequency | 600MHz |
| Colour Format Support | 24-bit, 30-bit, 36-bit deep colour |
| Audio Format Support | Dolby Digital, Dolby TrueHD, DTS-HD, DTS, PCM, LPCM |
| Maximum Input Cable Distance | 10m (AWG26 HDMI standard cable) |
| Power Input | Micro USB (5V/1A) |
| Dimensions | 75 x 55 x 25mm (LxWxH) |
| Weight | 43g |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
Can I use the CM423v3 to extract audio from my ARC-enabled TV?
Yes. The CM423v3 features HDMI ARC support with a switch, allowing you to extract audio directly from an ARC-compatible TV without needing an HDMI source device. Simply connect the TV's HDMI ARC port, toggle the ARC switch on the extractor, and route audio to your speaker system.
Can I output audio to both optical and 3.5mm simultaneously?
Yes. The CM423v3 supports simultaneous audio output to both the optical SPDIF and 3.5mm stereo connectors for 2.0-channel audio. This allows you to connect multiple audio systems or devices at the same time.
Does the video pass-through support 4K resolution?
Yes. The CM423v3 is HDMI 2.0b compliant and supports video pass-through at up to 4K@60Hz, maintaining full video quality whilst extracting audio separately.
What power supply does the CM423v3 require?
The CM423v3 is powered via micro USB requiring 5V/1A. You can use a standard USB wall charger or connect it to an available USB port on your TV or other device.
What audio formats does the CM423v3 support?
The CM423v3 supports both compressed formats (DTS-HD, Dolby TrueHD, Dolby Digital, DTS) and uncompressed formats (PCM, LPCM), ensuring compatibility with most modern audio content and systems.
Is the CM423v3 compatible with HDCP-protected content?
Yes. The CM423v3 is HDCP 2.2 compliant, ensuring it can handle encrypted media from streaming services, Blu-ray players, and other HDCP-protected sources.
