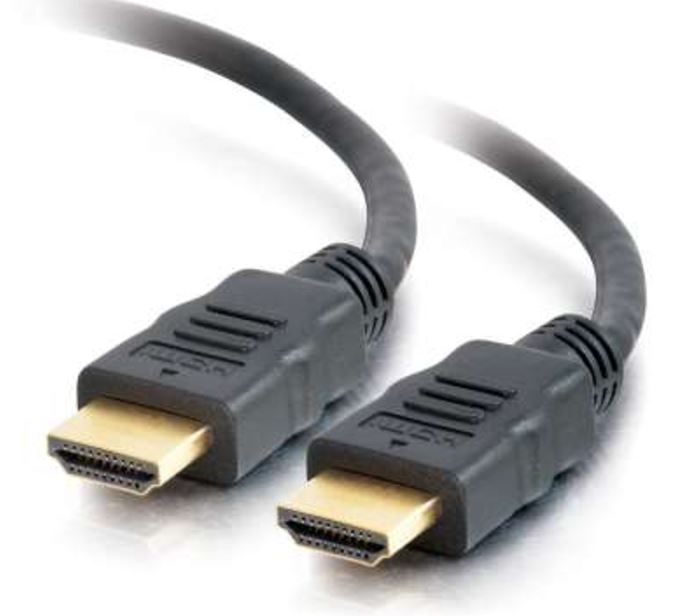

Astrotek HDMI Cable 5m Male to Male High Speed
Astrotek HDMI Cable 5m Male to Male High Speed
SKU:CBAT-HDMI-MM-5
The Astrotek AT-HDMI-MM-5 is a 5-metre HDMI 1.4 cable designed for home theatre and desktop audio-video applications. Featuring gold-plated connectors, support for 4K resolution and 3D video, and integrated Ethernet capability, it delivers reliable high-speed connectivity for professional and consumer installations.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Astrotek |
|---|---|
| Category | Cables |
| SKU | CBAT-HDMI-MM-5 |
| Availability | In Stock |
Overview
- The Astrotek AT-HDMI-MM-5 is a premium HDMI 1.4 cable engineered for demanding audio-visual applications. With support for 4K resolution up to 4096 x 2160 at 60Hz, advanced colour depth, and full 3D video capability, it meets the requirements of modern home theatre and professional installations.
Gold-plated connectors minimise signal loss and corrosion, while 30AWG copper conductors ensure reliable transmission over the 5-metre length. The integrated Ethernet channel allows compatible devices to share network connectivity without additional cables, simplifying installation and reducing clutter.
CEC compatibility enables seamless control integration between HDMI-connected devices, making it ideal for centralised AV systems. Whether upgrading an existing setup or building a new installation, this cable delivers performance and longevity in a straightforward, standards-compliant package.
Specifications
| Cable Length | 5 metres |
|---|---|
| HDMI Version | 1.4 |
| Connector Type | 19-pin Male to Male (AM/AM) |
| Conductor Gauge | 30AWG copper |
| Outer Diameter | 6.0mm |
| Connector Finish | Gold-plated |
| Maximum Resolution | 4K (4096 x 2160) at 60Hz |
| Colour Support | Deep colour |
| 3D Video | Supported |
| Ethernet Over HDMI | Yes |
| CEC Compatible | Yes |
| Compliance | RoHS |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
Will this HDMI cable work with 4K displays?
Yes. The Astrotek AT-HDMI-MM-5 supports 4K resolution at 4096 x 2160 at 60Hz, making it suitable for 4K displays and compatible source devices.
Can I use this cable for 3D video?
Yes. This HDMI 1.4 cable fully supports 3D video transmission, along with deep colour and other advanced HDMI features.
Does the cable include Ethernet connectivity?
Yes. The integrated HDMI Ethernet Channel allows compatible devices to share network connectivity over the same cable, eliminating the need for separate network cables.
Is the cable suitable for long-distance runs?
The 5-metre length is suitable for most installations. For longer runs, consider using an HDMI extender or repeater to maintain signal integrity beyond this distance.
What does the gold-plated connector do?
Gold-plated connectors resist corrosion and provide superior electrical contact, reducing signal loss and ensuring reliable performance over time.
Is this cable backwards compatible with older HDMI devices?
Yes. HDMI 1.4 cables are backwards compatible with earlier HDMI versions. Devices will operate at the specification supported by the source and display.
What is CEC and why does it matter?
CEC (Consumer Electronics Control) allows HDMI devices to communicate and control each other through the same cable. For example, turning on your TV can automatically power on a connected AV receiver.
