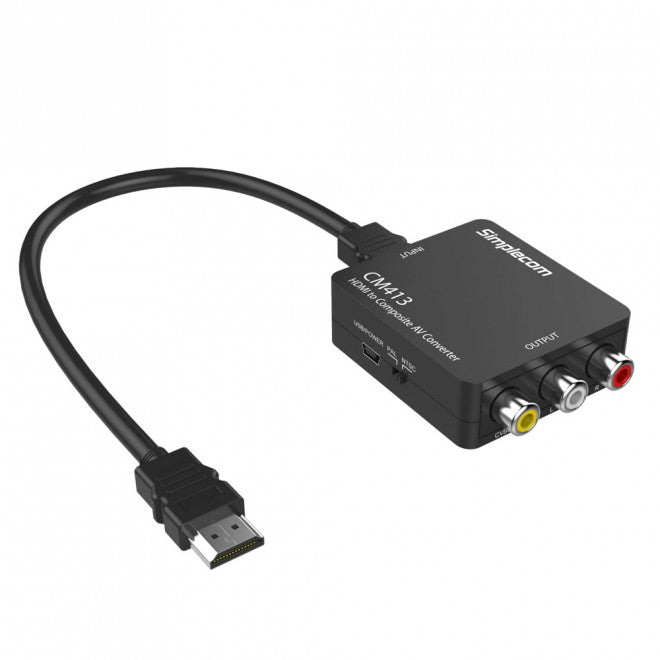

Simplecom CM413 HDMI to Composite AV Converter
Simplecom CM413 HDMI to Composite AV Converter
SKU:CBSI-CM413
The Simplecom CM413 is an HDMI to composite AV converter designed to connect modern HD sources to legacy CRT and projection displays. Featuring 1080p input support, hardware-based conversion, and PAL/NTSC switching, it delivers reliable video downscaling for older display technology.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | Cables |
| SKU | CBSI-CM413 |
| Availability | In Stock |
Overview
- The Simplecom CM413 bridges the gap between modern HDMI sources and older analogue displays. It accepts HDMI input up to 1080p and converts the signal to composite video (CVBS) and stereo audio output, allowing you to connect contemporary devices like streaming boxes, laptops, and Blu-ray players to traditional CRT televisions and projectors.
This converter uses advanced hardware-based video processing to downscale high-definition signals to 480i or 576i composite format with maintained image quality. It supports both PAL and NTSC standards via a simple selector switch, making it suitable for Australian and international display systems.
With HDCP compliance, it works reliably with protected content sources including Apple TV and Foxtel boxes. The converter is self-powered through the HDMI connection itself, requiring no external power in most installations, though a USB backup power option is included for compatibility with sources that supply limited HDMI power.
Specifications
| Model | CM413 |
|---|---|
| HDMI Version | 1.4 (backward compatible with 1.1, 1.2, 1.3) |
| HDMI Input Resolution | 480p, 576p, 720p, 1080i, 1080p @ 60Hz |
| Composite Video Output | 480i, 576i |
| TV Format Support | PAL and NTSC |
| HDCP Compliance | Yes |
| Inputs | 1 x HDMI |
| Outputs | 1 x Composite Video (CVBS), 1 x Stereo Audio (L/R RCA) |
| Power Source | Self-powered via HDMI (USB backup available) |
| Physical Dimensions | 55mm (W) × 66mm (D) × 20mm (H) |
| Weight | 40g |
| Warranty | 12 months |
| Included Accessories | HDMI cable, USB cable |
Key Features
Ideal For
FAQs
Can I use this converter to connect my HDMI streaming box to an old CRT television?
Yes. The CM413 converts HDMI input from streaming devices, set-top boxes, and Blu-ray players to composite AV format compatible with older CRT televisions and projectors. Simply connect the HDMI source to the converter, then plug the composite and audio cables into your display.
Does it support 3D content?
No. The CM413 does not support 3D video. It converts standard 2D HDMI signals to composite format.
Do I need to install software drivers?
No. The CM413 is a hardware converter with no software driver requirements. It works immediately upon connection—simply plug it in and select your TV format (PAL or NTSC) using the included switch.
What power does the converter require?
The CM413 is self-powered via the HDMI connection, so it draws power directly from your HDMI source. A USB cable for backup power is included in case your HDMI source provides insufficient power, though this is rarely necessary.
Will this work with Foxtel and Apple TV?
Yes. The CM413 is HDCP compliant and supports most HDCP-protected HDMI outputs, including Foxtel boxes and Apple TV. You can use it to connect these services to composite display systems.
What video resolution does the composite output provide?
The converter downscales HDMI input to 480i (NTSC) or 576i (PAL) composite video format, depending on your TV standard selection. This is the native format for analogue composite displays.
Can I reverse the conversion (composite input to HDMI output)?
No. The CM413 only converts from HDMI input to composite output. It does not support reverse conversion from composite to HDMI.
