Aten VC081A 4K HDMI EDID Emulator Adapter
Aten VC081A 4K HDMI EDID Emulator Adapter
SKU:KVA-VC-081A

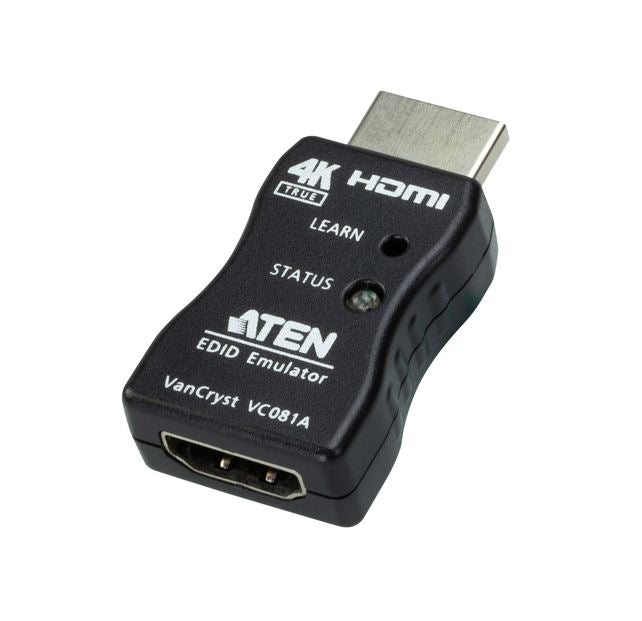

The Aten VC081A is a 4K HDMI EDID emulator adapter designed to resolve video communication issues between sources and displays. It learns and stores EDID data, supports true 4K resolution up to 3840 × 2160 @ 60Hz, and operates directly from your HDMI source for simplified integration.
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | Aten |
|---|---|
| Category | KVM Switch & Video |
| SKU | KVA-VC-081A |
| Availability | In Stock |
Overview
- The Aten VC081A is a True 4K HDMI EDID emulator adapter that solves common video communication problems between HDMI sources and displays. By learning and storing Extended Display Identification Data (EDID) from your connected monitor or display, the VC081A relays this information back to your video source, ensuring seamless handshake and preventing the blank or flickering screens that often result from EDID synchronisation failures.
This compact adapter is ideal for Pro AV integrations, remote server applications, and any scenario where maintaining a stable video connection is critical. The simple pushbutton "Learn" function makes setup straightforward—press once to capture your display's EDID, and the device stores it permanently. Once learned, the VC081A can emulate your display to keep PCs or servers awake remotely, even when the physical monitor is disconnected.
With support for true 4K resolution (3840 × 2160 @ 60Hz in 4:4:4 chroma), HDCP 2.2 compliance, and operation powered entirely by the HDMI source itself, the VC081A delivers professional-grade video management without the need for external power supplies or complex configuration.
Specifications
| Brand | Aten |
|---|---|
| Model | VC081A |
| Product Type | 4K HDMI EDID Emulator Adapter |
| HDMI Resolution Support | Up to 3840 × 2160 @ 60Hz (4:4:4) |
| HDCP Support | HDCP 2.2 |
| EDID Function | Learning and storage via pushbutton |
| 3D Support | Yes |
| Deep Colour Support | Yes |
| LED Indicators | Learning status |
| Power Source | HDMI source powered |
| Design | Compact and lightweight |
| Warranty | 24 months |
Key Features
Ideal For
FAQs
What is EDID and why does it matter?
EDID (Extended Display Identification Data) is information your display sends to the video source to describe its capabilities, resolution, and supported refresh rates. When EDID synchronisation fails, you may see a blank or flickering screen. The VC081A captures and stores your display's EDID, ensuring reliable communication between source and display.
How do I learn the EDID from my display?
Connect your display to the VC081A's output port, then press and hold the Learn Button on the device. The LED indicator will show the learning status. Once complete, the EDID is permanently stored and the adapter will emulate that display to any connected source.
Does the VC081A require external power?
No. The VC081A is powered directly by the HDMI source, so no external power supply or USB connection is needed. This makes installation simpler and reduces cable clutter.
Is the VC081A compatible with my 4K display?
Yes, the VC081A supports true 4K resolution up to 3840 × 2160 @ 60Hz in 4:4:4 chroma. It is also HDCP 2.2 compliant and supports 3D and Deep Colour, making it compatible with modern 4K displays and content.
Can I use the VC081A to keep a server awake without a monitor?
Yes. Once the VC081A has learned your display's EDID, it can emulate that display to your PC or server over IP. This allows you to manage remote systems without a physical monitor connected, and prevents the system from sleeping due to a missing display.
What types of HDMI cables and connectors does it use?
The VC081A uses standard HDMI connectors. Specific cable gauge and connector specifications are not provided in the product documentation; refer to the user guide or contact Hyetech Australia for detailed wiring information.
Is there a warranty included?
Yes, the Aten VC081A includes a 24-month manufacturer warranty covering defects and failures under normal use.
