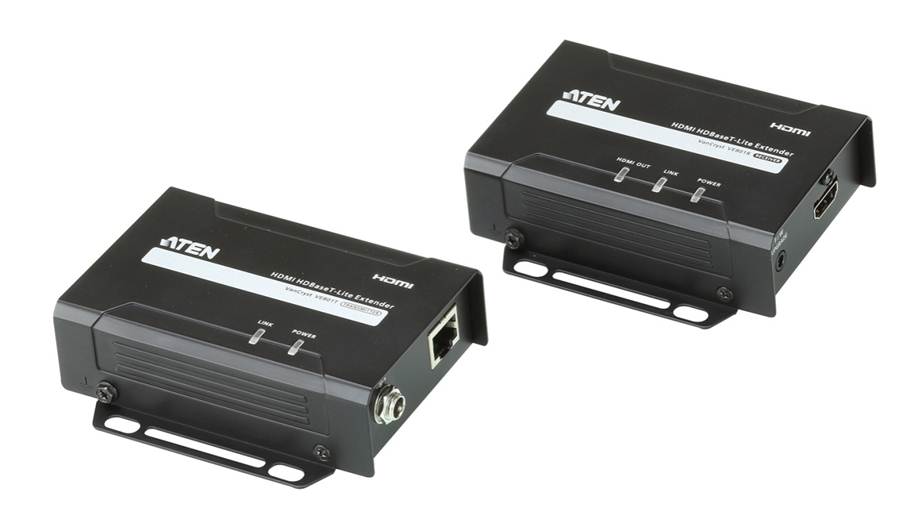

Aten VE801 HDMI HDBaseT-Lite Extender

Aten VE801 HDMI HDBaseT-Lite Extender

KVA-VE-801

The Aten VE801 is an HDMI HDBaseT-Lite extender designed for professional AV installations and digital entertainment. Featuring 70m range at 1080p and 4K support up to 40m over Cat 6A, it delivers reliable signal transmission for conference rooms, boardrooms, and control centres.
$387.59 AUD
$387.59 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
No reviews yet

Product Information

BrandAten
CategoryKVM Switch & Video
SKUKVA-VE-801
AvailabilityIn Stock
Aten VE801 HDMI HDBaseT-Lite Extender$387.59
$387.59
Overview
  • The Aten VE801 HDMI HDBaseT-Lite Extender simplifies long-distance HDMI signal transmission in professional environments. Using standard Cat 5e/6/6A cabling, it extends 1080p signals reliably up to 70 metres, or 4K content up to 40 metres—making it ideal for installations where centralising equipment and routing cables through building infrastructure is essential.

    Support for 3D video, Deep Colour, HDCP, and premium audio formats including Dolby Digital 5.1 and DTS HD ensures compatibility with modern content sources and displays. The compact all-in-one design integrates seamlessly into rack systems or wall-mounted installations, whilst slip-resistant grooves improve safety during setup and maintenance.

    Whether extending signals in a corporate campus, retail environment, or entertainment venue, the VE801 delivers professional-grade performance without requiring additional equipment or infrastructure modifications.
Specifications
BrandAten
ModelVE801
Product TypeHDMI HDBaseT-Lite Extender
Maximum Range (1080p)70 metres
Maximum Range (4K)40 metres (4096 x 2160 @ 30Hz, 4:4:4)
Cable RequirementsSingle Cat 5e/6/6A cable
Video Formats SupportedHDMI with 3D, Deep Colour
Resolution SupportUp to 4K (4096 x 2160 @ 30Hz)
Audio FormatsDolby Digital 5.1, DTS HD
Content ProtectionHDCP compatible
DesignAll-in-one compact form factor
Physical FeaturesSlip-resistant grooves, LED status indicators
Warranty24 months
Key Features
Extends HDMI signals up to 70m at 1080p or 40m at 4K (4096 x 2160 @ 30Hz) over single Cat 5e/6/6A cable
Supports 3D video, Deep Colour, and HDCP encryption for content protection
Compatible with Dolby Digital 5.1 and DTS HD audio formats
Compact all-in-one design with slip-resistant grooves for secure mounting
Clear LED status indicators for easy installation and troubleshooting
24-month warranty for peace of mind
Ideal For
Corporate boardrooms and conference rooms requiring extended display distances
Digital signage and entertainment installations across multiple spaces
Control centres and security monitoring with centralised equipment
Professional AV integrations in hospitality and retail environments
Educational facilities needing reliable video distribution
FAQs
What cable type do I need for the Aten VE801?

The VE801 uses a single Cat 5e, Cat 6, or Cat 6A Ethernet cable. Cat 6A is recommended for optimal performance, particularly when extending 4K signals.

How far can the VE801 extend HDMI signals?

The VE801 extends 1080p signals up to 70 metres and 4K signals (4096 x 2160 @ 30Hz) up to 40 metres over a single Cat 6A cable.

Does the VE801 support 3D and 4K video?

Yes. The VE801 supports 3D video, Deep Colour, and 4K resolutions up to 4096 x 2160 @ 30Hz with 4:4:4 colour sampling.

Is the VE801 HDCP compatible?

Yes, the VE801 is fully HDCP compatible, allowing secure transmission of copy-protected content.

What audio formats does the VE801 support?

The VE801 supports Dolby Digital 5.1 and DTS HD audio formats, ensuring compatibility with professional and consumer audio sources.

Can the VE801 be mounted in different orientations?

Yes. The compact all-in-one design with slip-resistant grooves allows secure mounting in various positions, including rack systems and wall installations.

What warranty does the VE801 include?

The VE801 includes a 24-month manufacturer's warranty covering defects in materials and workmanship.
