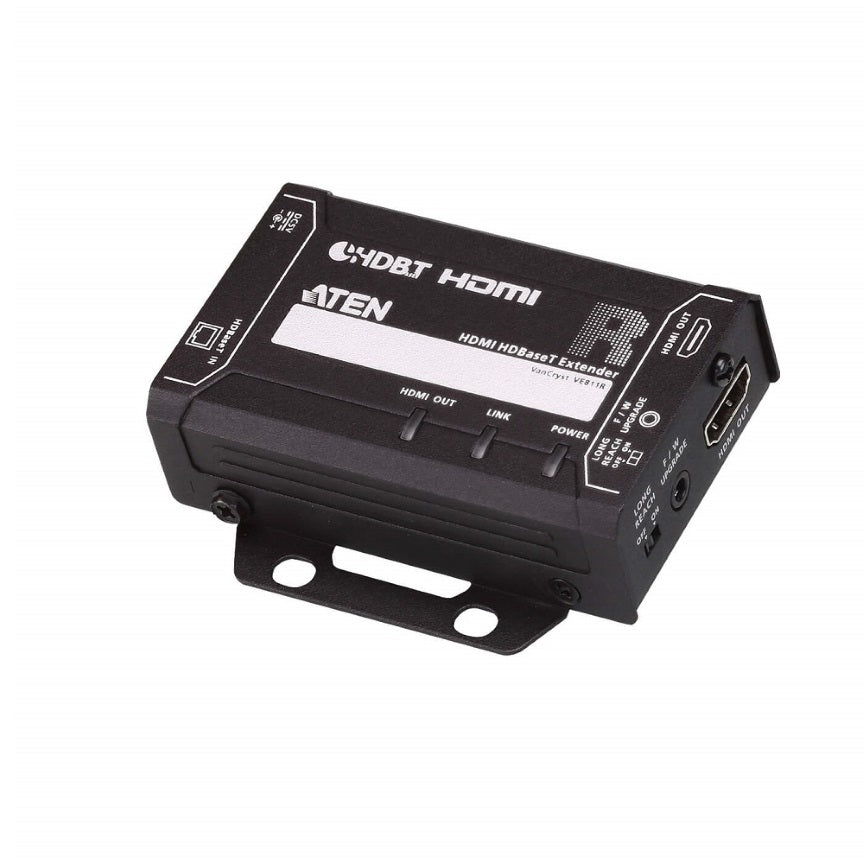

Aten VE811 HDMI Extender (4K@100m)
Aten VE811 HDMI Extender (4K@100m)
SKU:KVA-VE-811
The Aten VE811 is an HDMI extender designed for extending video signals up to 100 metres over standard Cat 5e/6/6a cabling. Featuring 4K resolution support, HDBaseT technology, and long reach mode capability, it delivers high-quality video transmission for meeting rooms and professional AV installations.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Aten |
|---|---|
| Category | KVM Switch & Video |
| SKU | KVA-VE-811 |
| Availability | In Stock |
Overview
- The Aten VE811 HDMI Extender uses HDBaseT technology to transmit high-quality video signals over standard Cat 5e, Cat 6, or Cat 6a cabling, eliminating the need for expensive HDMI cable runs. Supporting 4K resolutions with 3D and Deep Colour, it maintains full HDMI specification compliance including Dolby Digital 5.1 and DTS HD audio.
With a standard transmission distance of 100 metres and an extended long reach mode capability up to 150 metres, the VE811 is ideal for organisations needing to distribute video across large buildings or complex layouts. The compact form factor allows flexible mounting in equipment racks, wall cavities, or behind displays.
Designed for professional environments, the VE811 supports CEC pass-through, enabling remote control signals to pass between source and display devices. This makes it suitable for integrated AV systems in meeting rooms, boardrooms, and corporate presentation spaces.
Specifications
| Brand | Aten |
|---|---|
| Model | VE811 |
| Product Type | HDMI Extender |
| Transmission Technology | HDBaseT |
| Maximum Transmission Distance | 100 metres (standard), 150 metres (long reach mode) |
| Supported Cable Type | Cat 5e, Cat 6, Cat 6a |
| Maximum Video Resolution | 4K |
| Video Features | 3D support, Deep Colour |
| Audio Formats | Dolby Digital 5.1, DTS HD, HD lossless |
| HDMI Specification Compliance | Yes |
| CEC Pass-Through | Yes |
| Design | Compact, wall mountable |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What cable type does the Aten VE811 require?
The VE811 uses standard Cat 5e, Cat 6, or Cat 6a Ethernet cabling for signal transmission, eliminating the need for expensive HDMI cables.
How far can the Aten VE811 extend HDMI signals?
The VE811 extends HDMI signals up to 100 metres in standard mode and up to 150 metres using long reach mode over a single Cat 5e/6/6a cable.
Does the VE811 support 4K resolution?
Yes, the VE811 supports video signals at 4K resolution, along with 3D and Deep Colour for enhanced image quality.
What audio formats does the Aten VE811 support?
The VE811 supports Dolby Digital 5.1, DTS HD, and HD lossless audio formats, meeting full HDMI audio specifications.
Can I use the VE811 with remote controls?
Yes, the VE811 supports HDMI CEC pass-through, allowing remote control signals to be transmitted between the source device and display.
Is the VE811 suitable for meeting room installations?
Yes, the compact design and long transmission distance make the VE811 ideal for meeting rooms, boardrooms, and professional AV environments requiring extended video connectivity.
