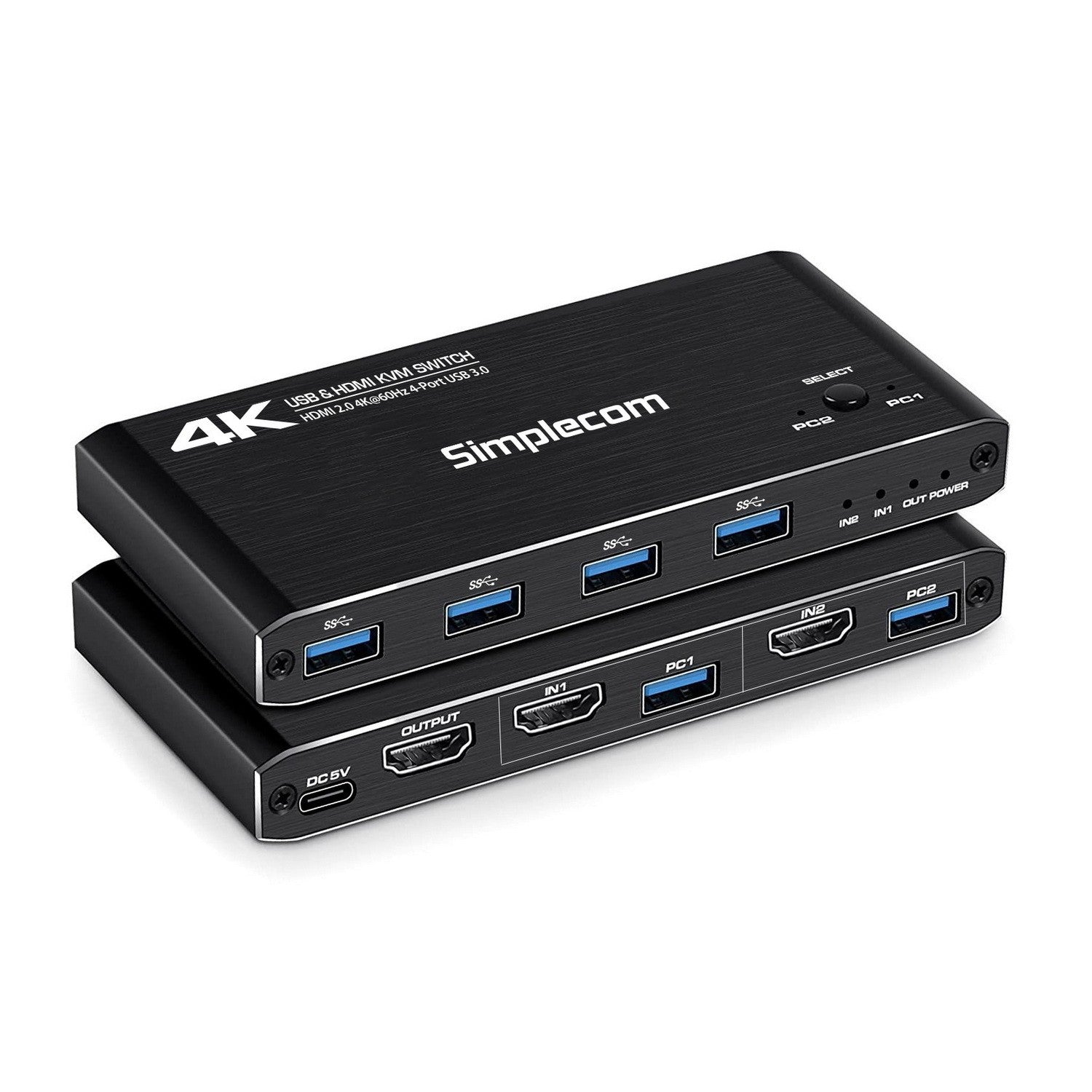

Simplecom KM420 2-Port HDMI KVM Switch with 4-Port USB 3.0
Simplecom KM420 2-Port HDMI KVM Switch with 4-Port USB 3.0
SKU:HXSI-KM420
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | USB, Bluetooth & IEEE |
| SKU | HXSI-KM420 |
| Availability | In Stock |
Overview
- The Simplecom KM420 eliminates the need for cable swapping when working across multiple computers. By combining HDMI video switching with a 4-port USB hub, it allows a single display, keyboard, mouse, and peripherals to serve two computers simultaneously.
Simplify your workspace by pressing one button to switch both video and USB input between your desktop and laptop, or between your PC and Mac. The KM420 supports high-resolution 4K video at 60Hz and maintains fast USB 3.0 data transfer speeds of up to 5Gbps, making it suitable for professional workflows including file transfers, printing, and external drive access.
Built with a robust aluminium casing, the switch offers reliable performance with minimal setup. Its plug-and-play design and hot-swappable functionality mean you can connect and disconnect computers without powering down the switch, saving time and improving productivity in busy multi-computer environments.
Specifications
| Model | KM420 |
|---|---|
| Brand | Simplecom |
| Product Type | HDMI KVM Switch with USB Hub |
| HDMI Ports | 2 x HDMI 2.0 |
| HDMI Resolution Support | Up to 4K@60Hz |
| HDMI Backward Compatibility | HDMI 1.4 |
| USB Upstream Ports | 2 x USB 3.0 AF (one per computer) |
| USB Downstream Ports | 4 x USB 3.0 AF |
| USB Data Transfer Speed | Up to 5Gbps (SuperSpeed) |
| USB Backward Compatibility | USB 2.0 |
| Switching Method | Single toggle button |
| Hot Swappable | Yes |
| Installation | Plug and play |
| Casing Material | Aluminium alloy |
| Status Indicator | LED light showing active computer |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
Can the Simplecom KM420 work with both Windows and Mac computers?
Yes, the KM420 is compatible with both Windows PCs and Mac computers. It operates as a standard KVM switch without requiring drivers or operating system-specific software.
What video resolution does the KM420 support?
The KM420 supports HDMI 2.0 video resolutions up to 4K@60Hz. It is also backward compatible with HDMI 1.4 devices.
How many USB devices can I connect at once?
The KM420 has four USB 3.0 downstream ports, allowing you to connect up to four USB devices simultaneously (keyboard, mouse, printer, external drive, etc.).
What USB data transfer speed does the KM420 provide?
The KM420 delivers SuperSpeed USB 3.0 data transfer at up to 5Gbps. It is also backward compatible with slower USB 2.0 devices.
Do I need drivers or software to use the KM420?
No, the KM420 is plug-and-play. Simply connect the USB and HDMI cables from each computer and press the toggle button to switch between them. No drivers or configuration software is required.
Can I hot-swap computers without powering down the switch?
Yes, the KM420 is hot-swappable, allowing you to connect and disconnect computers without powering down the switch.
Is the KM420 compatible with USB 2.0 devices?
Yes, the KM420 is backward compatible with USB 2.0 devices. They will work but at USB 2.0 speeds rather than USB 3.0 speeds.
