Aten VS4814-AT 4-Port True 4K HDMI Splitter
Aten VS4814-AT 4-Port True 4K HDMI Splitter
SKU:KVA-VS4814-AT
The Aten VS4814-AT is a 4-port True 4K HDMI splitter designed for video distribution across multiple displays. Featuring EDID Sync™ automatic resolution optimisation, HDR10+ and HDCP 2.2 compatibility, plus immersive audio support including Dolby® and DTS-HD Master Audio™, it delivers professional-grade video and audio performance for presentations and multi-display environments.
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | Aten |
|---|---|
| Category | KVM Switch & Video |
| SKU | KVA-VS4814-AT |
| Availability | In Stock |
Overview
- The Aten VS4814-AT is a professional-grade HDMI splitter that distributes one True 4K video source across four independent displays simultaneously. With EDID Sync™ technology, it automatically detects and optimises resolution settings for each connected display, eliminating compatibility headaches and ensuring consistent presentation quality across all screens.
Built for demanding audio-visual environments, the VS4814-AT supports advanced video formats including HDR10+, HDCP 2.2 protection, and full 3D capability. The audio capabilities match the video quality, with comprehensive support for immersive soundtracks including LPCM 7.1, Dolby®, and DTS-HD Master Audio™.

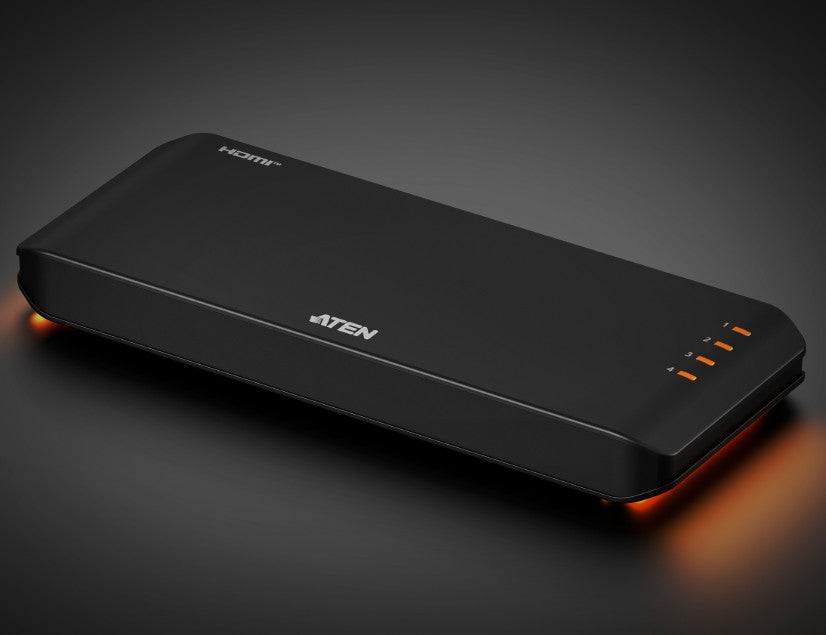

The compact design and professional aesthetics make it suitable for permanent installation in boardrooms, control centres, and broadcast facilities. Its slim profile and integrated accent lighting blend seamlessly into modern AV installations without taking up valuable desk or rack space.
Specifications
| Brand | Aten |
|---|---|
| Model | VS4814-AT |
| Product Type | 4-Port HDMI Splitter |
| Ports | 1 × HDMI input, 4 × HDMI outputs |
| Video Resolution | True 4K (up to 4096 × 2160 @ 60 Hz) |
| Video Features | HDMI 3D, Deep Color, HDR10+, HDCP 2.2 |
| Audio Format Support | LPCM 7.1, Dolby®, DTS-HD Master Audio™ |
| Special Features | EDID Sync™ display optimisation |
| Form Factor | Compact, slim profile |
| Warranty | 24 months |
Key Features
Ideal For
FAQs
Can the Aten VS4814-AT split one HDMI source to four displays with different resolutions?
Yes. The EDID Sync™ technology automatically detects and optimises the resolution for each connected display, allowing displays with different native resolutions to work simultaneously without manual adjustment.
Is this splitter suitable for 4K@60Hz output on all four ports?
Yes. The VS4814-AT supports True 4K resolution up to 4096 × 2160 @ 60 Hz on all four output ports simultaneously.
What audio formats does the VS4814-AT support?
The splitter supports LPCM 7.1, Dolby®, and DTS-HD Master Audio™, ensuring theatrical-quality surround sound across all outputs.
Is HDCP content protected when using this splitter?
Yes. The VS4814-AT is HDCP 2.2 compatible, allowing you to distribute HDCP-protected content such as streaming services and Blu-ray across multiple displays.
Can I use displays with different refresh rates on the same splitter?
The VS4814-AT optimises resolution settings per display using EDID Sync™, which helps manage compatibility, but all outputs share the same video source and frame rate from the input device.
What is the physical size and installation method?
The VS4814-AT features a compact, slim profile design with accent lighting. It is designed for desktop or flush mounting in AV installations. Specific mounting details are available in the product manual.
Does the splitter require external power?
Please refer to the product manual or contact Hyetech Australia for specific power requirements and connectivity details.
What warranty and support does Hyetech Australia provide?
The Aten VS4814-AT includes a 24-month manufacturer warranty. Hyetech Australia provides full technical support and warranty service across Australia.
