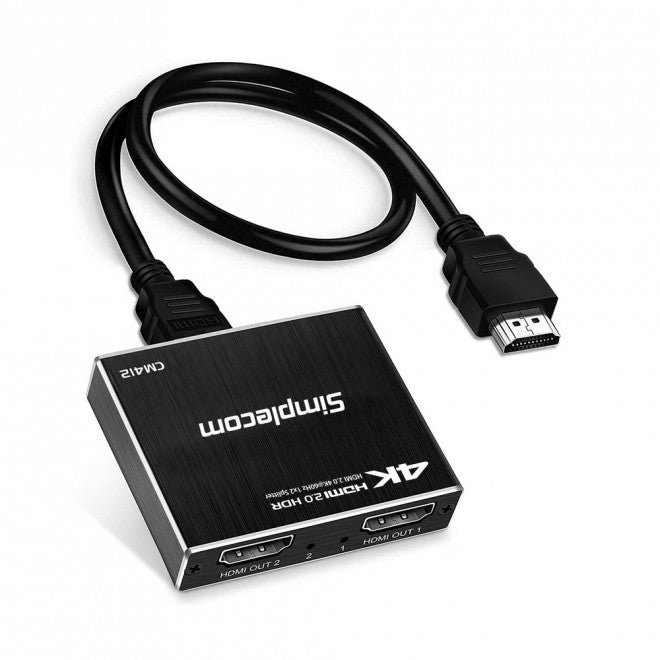

Simplecom CM412 HDMI 2.0 1x2 Splitter 4K@60Hz
Simplecom CM412 HDMI 2.0 1x2 Splitter 4K@60Hz
SKU:HXSI-CM412
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | USB, Bluetooth & IEEE |
| SKU | HXSI-CM412 |
| Availability | In Stock |
Overview
- The Simplecom CM412 is a professional-grade HDMI 2.0 splitter designed to distribute one HDMI source signal to two independent displays simultaneously. It supports up to 4K@60Hz resolution with full HDR10 and HDCP 2.2 compliance, making it suitable for modern streaming devices, gaming consoles, and professional content sources.
A standout feature is the intelligent downscaling capability, allowing you to output different resolutions from each port. For example, you can transmit 4K content from one output while simultaneously delivering 1080p from the other, all without manual switching or configuration. This flexibility is particularly valuable for mixed-display environments.
The splitter automatically detects each connected display's capabilities and configures the appropriate video resolution accordingly. Built-in LED indicators provide power and signal status at a glance. With 18Gbps maximum bandwidth, support for advanced audio formats including Dolby TrueHD and DTS-HD, and simple plug-and-play operation, the CM412 delivers reliable multi-display distribution for demanding AV applications.
Specifications
| HDMI Version | HDMI 2.0b (backwards compatible with HDMI 1.4 and 1.3) |
|---|---|
| Input Ports | 1 x HDMI (Female) |
| Output Ports | 2 x HDMI (Female) |
| Maximum Resolution | 4K@60Hz (3840 x 2160) |
| Supported Resolutions | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p@60Hz |
| Video Format | 4K@60Hz YUV 4:4:4, 4K@60Hz with HDR YUV 4:2:0 |
| Audio Format Support | DTS-HD, Dolby TrueHD, Dolby Digital Plus, LPCM 7.1 |
| HDR Format Support | HDR10 |
| HDCP Compliance | HDCP 2.2 (compatible with HDCP 1.4) |
| 3D Support | Yes |
| Maximum Bandwidth | 18Gbps |
| Maximum Input Cable Distance | 1080p: <10m, 4K: <5m (28AWG HDMI 19+1 cable) |
| Maximum Output Cable Distance | 1080p: <10m, 4K: <5m (28AWG HDMI 19+1 cable) |
| Power Consumption | 5W maximum |
| Power Input | USB DC 5V/1A |
| Operating Temperature | -15°C to +55°C |
| Dimensions (L x W x H) | 58 x 48 x 12mm |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
Does the CM412 support 4K resolution?
Yes, the CM412 supports up to 4K@60Hz (3840 x 2160) resolution with HDR10 and HDCP 2.2 compliance, making it suitable for modern 4K displays and streaming devices.
Can I connect different resolution displays to each output?
Yes. The CM412 features intelligent downscaling that allows each output to operate at different resolutions simultaneously. For example, one output can transmit 4K while the other delivers 1080p, with automatic detection of each display's capabilities.
What power supply do I need?
The CM412 requires a USB DC 5V/1A power supply. A compatible power adapter is typically included or can be sourced from standard USB power supplies.
Is the CM412 compatible with older HDMI devices?
Yes, the CM412 is HDMI 2.0b compliant and backwards compatible with HDMI 1.4 and HDMI 1.3 devices, supporting a wide range of legacy and modern equipment.
Does it support audio formats like Dolby and DTS?
Yes, the CM412 supports advanced audio formats including DTS-HD, Dolby TrueHD, Dolby Digital Plus, and LPCM 7.1 for high-quality multi-channel sound.
Do I need to install drivers or software?
No, the CM412 is completely plug-and-play. No drivers, software, or configuration is required; simply connect your source and displays.
What is the maximum cable length for 4K signals?
For 4K resolution, use quality 28AWG HDMI 19+1 cables with a maximum distance of less than 5 metres to ensure signal integrity. For 1080p, cables can extend up to 10 metres.
