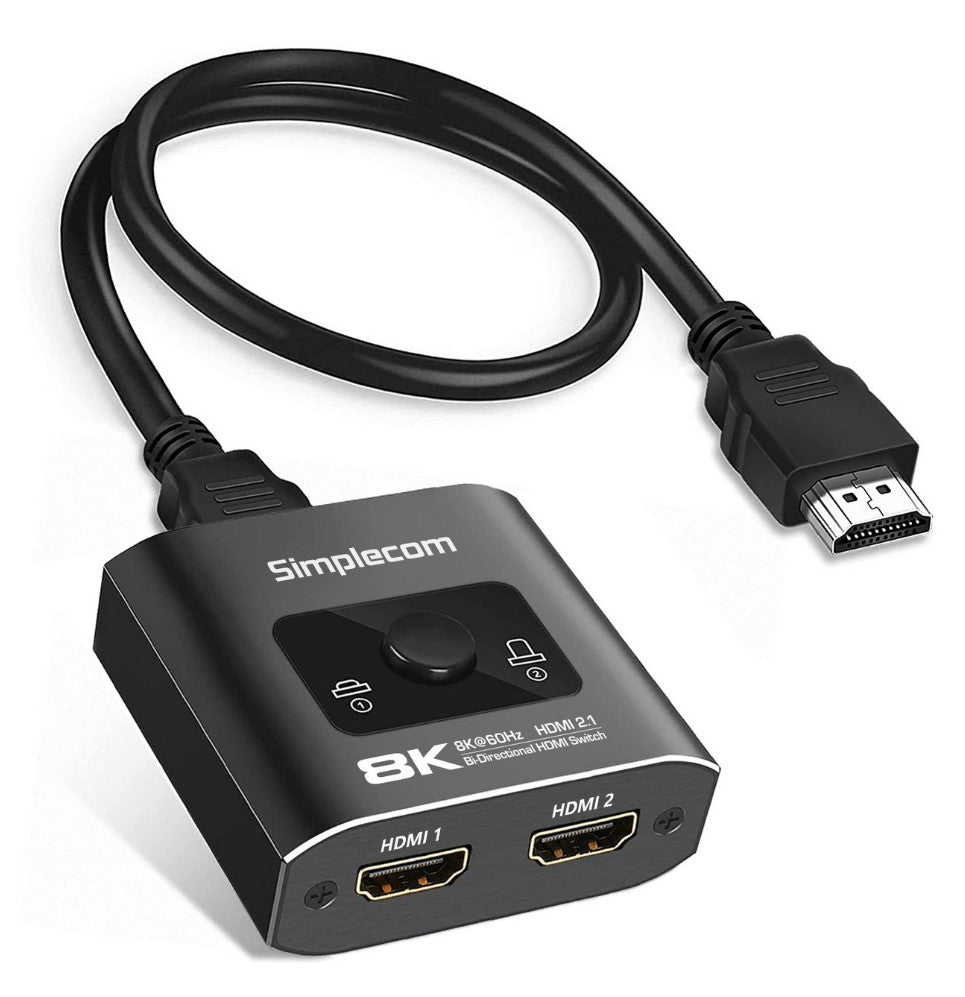

Simplecom CM302V2 Bi-Directional HDMI 2.1 Switch Selector 8K
Simplecom CM302V2 Bi-Directional HDMI 2.1 Switch Selector 8K
SKU:CBSI-CM302V2
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | Cables |
| SKU | CBSI-CM302V2 |
| Availability | In Stock |
Overview
- The Simplecom CM302V2 is a professional-grade HDMI 2.1 switch selector that enables seamless toggling between two HDMI sources or displays without cable swapping. Built with durable aluminium alloy construction, it dissipates heat efficiently whilst maintaining a compact footprint suitable for any installation environment.
Designed for modern high-bandwidth applications, the CM302V2 supports resolutions up to 8K@60Hz with a maximum bandwidth of 48Gbps, making it compatible with the latest display and source technologies. It handles advanced audio formats including Dolby Atmos, DTS-HD, and Dolby True HD, ensuring comprehensive multimedia support.
The switch operates passively from HDMI source device power with an optional USB-C backup connection, eliminating the need for external power infrastructure. Its manual switching capability provides predictable control without automatic detection complexity.
Specifications
| Model | CM302V2 |
|---|---|
| Brand | Simplecom |
| HDMI Version | HDMI 2.1 |
| Maximum Bandwidth | 48Gbps |
| Video Resolution Support | Up to 1080p@240Hz, 4K@120Hz, 8K@60Hz |
| Audio Format Support | DTS-HD, Dolby True HD, Dolby Digital, Dolby Atmos, LPCM 7.1 |
| HDR Format Support | HDR10 |
| HDCP Version | HDCP 2.3 |
| Maximum Cable Distance | Input < 2M, Output < 2M |
| Power Input | USB-C DC 5V (Backup power only) |
| Maximum Operating Current | 15mA |
| Operating Temperature | -15°C to +55°C |
| Dimensions | 53 x 52 x 21mm (L x W x H) |
| Weight | 45g |
| Warranty | 12 months |
| Package Contents | 1 x Bi-Directional HDMI Switch, 1 x HDMI cable, 1 x User Manual |
Key Features
Ideal For
FAQs
Does the Simplecom CM302V2 require external power?
No. The switch is powered directly by the HDMI source device. A USB-C port is available for backup power only, if the HDMI source device does not provide sufficient power.
Can I use HDMI cables longer than 2 metres with this switch?
No. For optimal performance and signal integrity, HDMI cables connected to both input and output ports should not exceed 2 metres in length.
Can I display video on both screens simultaneously in 1 Input 2 Outputs mode?
No. When using 1 Input 2 Outputs mode, only one display can show video at a time. You must manually switch between outputs.
What audio formats does the CM302V2 support?
The switch supports DTS-HD, Dolby True HD, Dolby Digital, Dolby Atmos, and LPCM 7.1 audio formats, providing comprehensive compatibility with modern audio systems.
Is automatic switching available on the CM302V2?
No. The CM302V2 is a manual HDMI switch. You must manually select which source or display to use.
What is the maximum video resolution supported?
The CM302V2 supports video resolutions up to 8K@60Hz, along with 4K@120Hz and 1080p@240Hz, making it suitable for next-generation display technologies.
Is the CM302V2 compatible with protected content?
Yes. The switch is HDCP 2.3 compliant, ensuring compatibility with protected content from streaming services and other secure sources.
