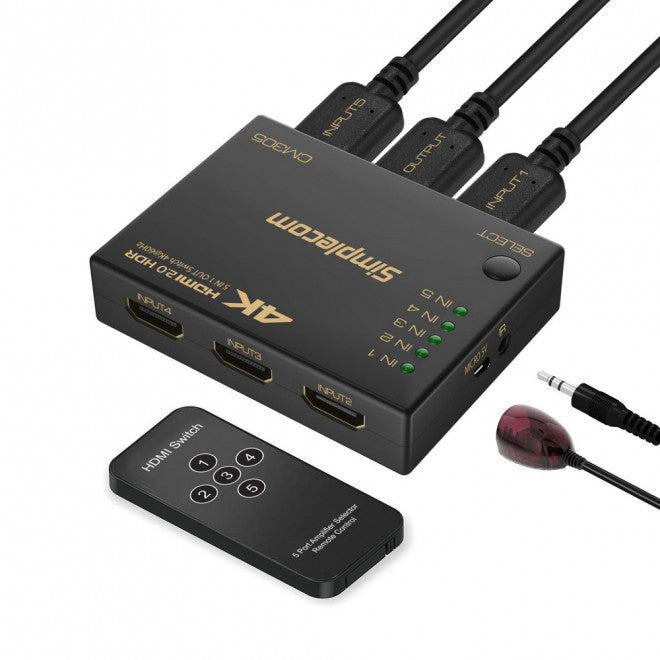

Simplecom CM305 5-Way HDMI Switch 4K@60Hz
Simplecom CM305 5-Way HDMI Switch 4K@60Hz
SKU:CBSI-CM305
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | Cables |
| SKU | CBSI-CM305 |
| Availability | In Stock |
Overview
- The Simplecom CM305 is a compact 5-way HDMI switch that simplifies multi-source connectivity. It eliminates the need to manually unplug and reconnect cables, allowing five HDMI devices to connect to a single display with intelligent auto-switching functionality.
Designed for plug-and-play operation, the CM305 requires no external power when connected to standard HDMI devices. The included infrared remote control provides convenient switching from across the room, while the switch automatically selects the active input when only one device is powered on.
Supporting 4K video at 60Hz, HDR10, and advanced audio formats including DTS-HD and Dolby TrueHD, it handles modern audiovisual requirements. Its compact form factor and straightforward operation make it ideal for both residential and commercial applications.
Specifications
| HDMI Inputs | 5 |
|---|---|
| HDMI Outputs | 1 |
| HDMI Version Support | HDMI 1.4, HDMI 2.0 |
| HDCP Support | HDCP 1.4, HDCP 2.0 |
| Maximum Video Resolution | 4K (3840×2160) @ 60Hz |
| Supported Video Formats | 4K@60Hz, 1080p, 1080i, 720p, 576p, 480p, 576i, 480i, 3D Video |
| Video Bandwidth | 18 Gbps |
| Colour Depth | 12-bit Deep Colour Per Channel |
| HDR Support | HDR10 |
| Audio Formats | DTS-HD, Dolby TrueHD, PCM, LPCM |
| Power Input | Micro-USB 5V (no external power required for standard HDMI devices) |
| Operating Temperature | 0°C to 70°C |
| Operating Humidity | 10% to 85% RH (non-condensing) |
| Dimensions | 82 × 58 × 19 mm |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
Do I need an external power supply to use the CM305?
No. The CM305 draws power directly from the connected HDMI devices, so no external power adapter is required for standard HDMI devices. A Micro-USB 5V connection is available if additional power is needed.
Can the CM305 switch between devices automatically?
Yes. The CM305 features auto-switching that automatically selects the newly powered-on input. When multiple devices are active, you can manually select the desired input using the included remote control or the switch button.
What video resolutions does the CM305 support?
The CM305 supports video resolutions up to 4K (3840×2160) at 60Hz, plus 1080p, 720p, and various lower resolutions. It also supports 3D video and HDR10.
Is the CM305 compatible with older HDMI devices?
Yes. The CM305 is backward compatible with HDMI 1.4 and earlier versions, making it suitable for both new and older HDMI devices.
Does the CM305 support audio passthrough?
Yes. The CM305 supports multiple audio formats including DTS-HD, Dolby TrueHD, PCM, and LPCM, ensuring high-quality sound from connected devices.
How far away can I use the remote control?
The included infrared receiver allows remote control operation from a typical viewing distance. Exact range depends on infrared line-of-sight to the receiver.
