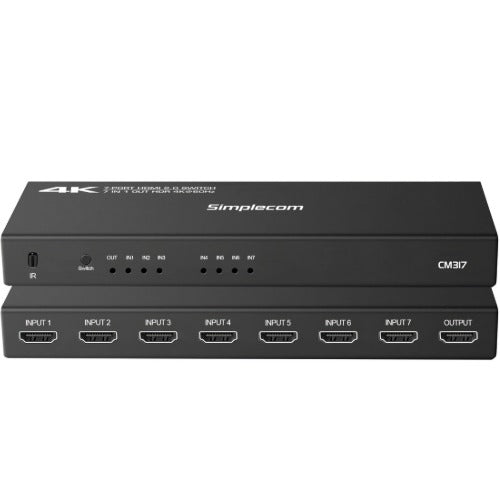

Simplecom CM317 7-Port HDMI 2.0 Switch with Remote
Simplecom CM317 7-Port HDMI 2.0 Switch with Remote
SKU:CBSI-CM317
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | Cables |
| SKU | CBSI-CM317 |
| Availability | In Stock |
Overview
- The Simplecom CM317 simplifies multi-device connectivity by allowing up to seven HDMI sources to connect to a single display port. Whether you're managing gaming consoles, streaming devices, Blu-ray players, or presentation equipment, this switch eliminates the need for constant cable swapping.
Built to HDMI 2.0b and HDCP 2.2 standards, the CM317 delivers full 4K@60Hz video with 18Gbps bandwidth, ensuring crisp visuals and smooth performance across all resolution types. The device supports advanced colour depths and audio formats including Dolby TrueHD and DTS-HD, making it suitable for high-quality home theatre and professional applications.
The auto-switching feature intelligently detects when a source becomes active and automatically selects it, though manual selection via button or remote control is always available. LED indicators provide clear visual feedback of the active input, and the compact design with USB-powered operation makes installation straightforward in any environment.
Specifications
| Model | CM317 |
|---|---|
| HDMI Version | HDMI 2.0b |
| HDCP Version | HDCP 2.2 |
| HDMI Inputs | 7x HDMI Female |
| HDMI Output | 1x HDMI Male |
| Maximum Bandwidth | 18Gbps |
| Supported Resolutions | 4K, 1440p, 1080p, 1080i, 720p, 720i, 576p, 576i, 480p |
| Maximum Refresh Rate | 4K@60Hz, 1080p@120Hz |
| Colour Support | 12-bit, 14-bit, 16-bit, 36-bit deep colour; RGB 8:8:8 |
| HDR Support | HDR 10, Dolby Vision |
| Audio Formats | DTS, DTS-HD, Dolby TrueHD, Dolby AC-3, PCM, LPCM |
| Power Input | DC 5V via USB |
| Operating Temperature | 0°C to 70°C |
| Dimensions | 19.5 x 7 x 2.3 cm |
| Weight | 291g |
| Warranty | 12 months |
| Package Contents | 7-Port HDMI Switch, Remote Control, 5V/1A Power Adapter, USB Power Cable |
Key Features
Ideal For
FAQs
Can I use the CM317 to split one HDMI source to multiple displays?
No, the CM317 is a 7-in-1-out switch only. It connects up to seven source devices to a single display port. It cannot operate in reverse to distribute one source across multiple displays.
Does the auto-switching feature work with all devices?
Auto-switching works with most devices, but some devices like Apple TV keep their HDMI port active in sleep mode, which may prevent auto-switching from functioning correctly. In these cases, you can manually switch inputs using the button or remote control.
What resolution and refresh rates does the CM317 support?
The CM317 supports 4K@60Hz, 1440p, 1080p@120Hz, and other standard resolutions up to 720p. It handles 18Gbps bandwidth with full HDMI 2.0b and HDCP 2.2 compliance, ensuring compatibility with modern high-definition content.
Is a power adapter required?
Yes, the CM317 requires 5V DC power via USB. A 5V/1A power adapter and USB cable are included in the package.
Is the remote control wireless?
Yes, the CM317 includes a wireless remote control for convenient input switching from a distance. You can also use the manual button on the device for switching.
Will the CM317 work with older HDMI devices?
Yes, the CM317 is backward compatible with previous HDMI and HDCP versions, so it works with older devices whilst supporting the latest 4K and HDR content.
What audio formats are supported?
The CM317 supports DTS, DTS-HD, Dolby TrueHD, Dolby AC-3, PCM, and LPCM audio formats, making it suitable for high-quality audio transmission from multiple sources.
