Simplecom CM323 3-Way HDMI 2.0 Switch 4K 60Hz
Simplecom CM323 3-Way HDMI 2.0 Switch 4K 60Hz
SKU:CBSI-CM323
Couldn't load pickup availability
- See our return policy
- 12 months manufacturer Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | Cables |
| SKU | CBSI-CM323 |
| Availability | In Stock |
Overview

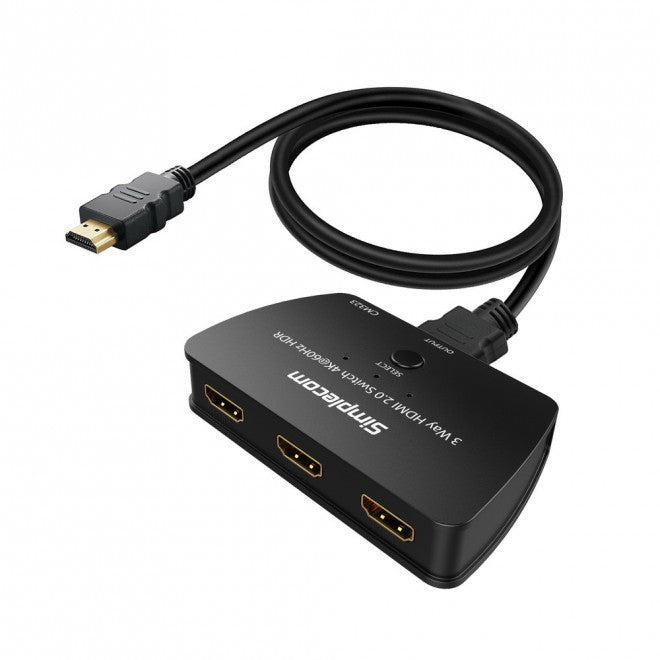

- The Simplecom CM323 is a practical 3-way HDMI switch that simplifies connecting multiple devices to a single display. It supports the latest HDMI 2.0 standard with 4K resolution at 60Hz, HDR, and HDCP 2.2 protection, making it suitable for streaming boxes, gaming consoles, and modern AV equipment.
Automatic input switching detects the active source and switches seamlessly, though manual selection is available via the on-board button. The switch requires no external power supply and installs with simple plug-and-play connectivity.
With 18 Gbps bandwidth capacity, the CM323 handles high-bandwidth applications including PS4 Pro, Xbox One S, Chromecast Ultra, and Fire TV. It maintains backward compatibility with older HDMI versions and 1080p devices, making it flexible for mixed equipment environments.
The 12-month manufacturer warranty provides peace of mind for home and professional installations.
Specifications
| HDMI Standard | HDMI 2.0 (backward compatible with previous revisions) |
|---|---|
| HDCP Support | HDCP 2.2 (backward compatible with previous revisions) |
| Switching Configuration | 3 inputs, 1 output |
| Maximum Video Resolution | 4K (3840×2160) @ 60Hz |
| Supported Video Formats | 4K/2K @ 60Hz, 1080p, 1080i, 720p, 576p, 480p, 576i, 480i, 3D Video |
| Video Bandwidth | 18 Gbps at 250 MHz |
| Frequency Range | 25 MHz to 165 MHz |
| Colour Depth | 12-bit Deep Colour Per Channel |
| Colour Space Support | 4:4:4 RGB |
| Audio Formats | Dolby Digital, DTS-HD, Dolby TrueHD, DTS, LPCM |
| Input Switching | Automatic detection with manual override button |
| Power Supply | Self-powered (no external adapter required) |
| Operating Temperature | 0°C to 70°C |
| Operating Humidity | 10% to 85% RH (non-condensing) |
| Warranty | 12 months manufacturer |
Key Features
Ideal For
FAQs
Does the CM323 require external power?
No, the CM323 is self-powered and does not require an external power adapter. It draws power directly from the HDMI connections.
Will this switch work with my older 1080p devices?
Yes, the CM323 is fully backward compatible with previous HDMI revisions and supports 1080p, 720p, and other lower resolutions alongside 4K sources.
Does automatic input switching work with all devices?
Automatic switching works with most devices, but some streaming boxes and Apple TV keep their HDMI port active during sleep mode, which may prevent automatic switching. Manual selection via the button remains available for these devices.
Is the CM323 suitable for gaming consoles?
Yes, the CM323 is designed to support PS4 Pro, Xbox One S, and other modern gaming consoles with its 18 Gbps bandwidth and 4K 60Hz capability.
What audio formats does the CM323 support?
The switch supports Dolby Digital, DTS-HD, Dolby TrueHD, DTS, and LPCM audio formats, covering most streaming and gaming applications.
Can I use the CM323 with a projector?
Yes, the CM323 outputs to any HDMI display, including projectors, TVs, and monitors that support HDMI 2.0 or earlier standards.
Is HDCP 2.2 necessary for streaming services?
HDCP 2.2 support is required for premium streaming content such as 4K movies on Netflix, Disney+, and similar services. The CM323 includes full HDCP 2.2 support.
