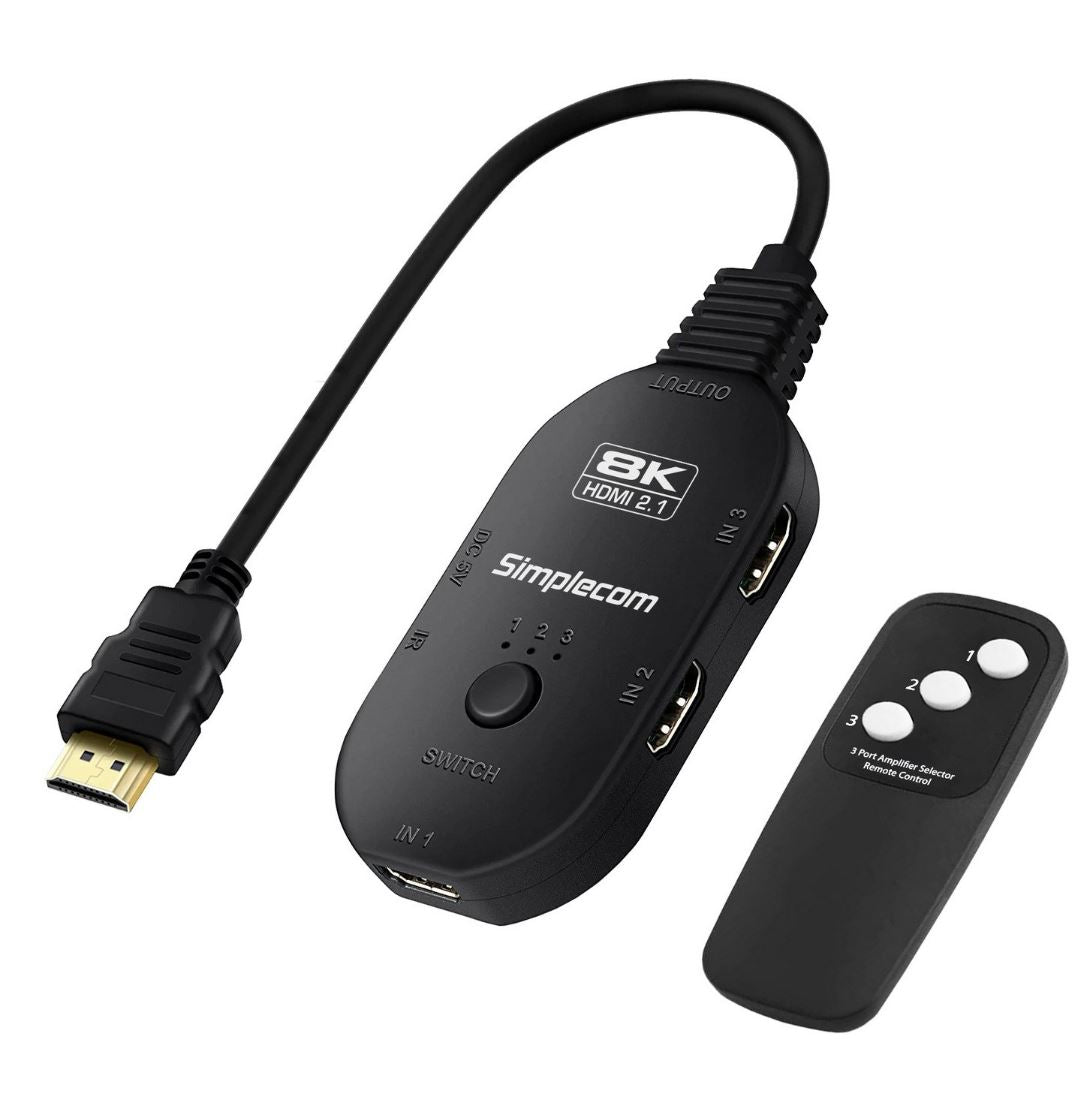

Simplecom CM353 3-Port HDMI 2.1 Switch
Simplecom CM353 3-Port HDMI 2.1 Switch
SKU:CBSI-CM353
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | Cables |
| SKU | CBSI-CM353 |
| Availability | In Stock |
Overview
- The Simplecom CM353 is a three-input, one-output HDMI switch built for modern high-resolution displays. It enables three separate source devices—such as streaming boxes, gaming consoles, Blu-ray players, or computers—to connect to a single HDMI port on your TV or monitor without constant cable swapping.
With full HDMI 2.1 compliance, the CM353 handles cutting-edge resolutions: 8K at 60Hz, 4K at 120Hz, or 1080p at 240Hz. The 48Gbps bandwidth supports HDR content, high-quality audio formats including Dolby TrueHD and DTS-HD, and deep colour (up to 16-bit). HDCP 2.3 encryption ensures content protection for streaming services and protected media.
Setup is straightforward—the integrated 40cm HDMI output cable connects directly to your display, and the included remote control lets you switch between inputs instantly without reaching behind your TV. No external power is needed for standard HDMI operation, making installation clean and cable-free.
Note: To achieve 8K@60Hz or 4K@120Hz performance, use certified 48Gbps HDMI 2.1 cables with a maximum length of 3 metres. This is a one-way switch only and cannot be used in reverse.
Specifications
| Model | CM353 |
|---|---|
| HDMI Version | HDMI 2.1, backward compatible |
| HDCP Version | HDCP 2.3, backward compatible |
| HDMI Inputs | 3x HDMI Female |
| HDMI Output | 1x HDMI Male |
| Maximum Bandwidth | 48Gbps |
| Supported Resolutions | 8K, 4K, 1440p, 1080p, 1080i, 720p, 720i, 576p, 576i, 480p |
| Maximum Refresh Rates | 8K@60Hz, 4K@120Hz, 1080p@240Hz |
| Video Colour Support | 12-bit, 14-bit, 16-bit, 36-bit deep colour; RGB 8:8:8 |
| HDR Support | Yes |
| Audio Formats | DTS-HD, Dolby TrueHD, PCM, LPCM |
| Power Input | USB-C DC 5V (no external power required for standard devices) |
| Operating Temperature | 0°C to 50°C |
| Dimensions | 121 x 50 x 1.5mm |
| Output Cable Length | 40cm (approx.) |
| Weight | 80g |
| Warranty | 12 months |
| Package Contents | 3-port HDMI switch, remote control, IR receiver, USB power cable |
Key Features
Ideal For
FAQs
Do I need a power adapter to use the CM353?
No. The CM353 operates without external power for standard HDMI devices. The USB-C power input is optional and only needed in specific high-power scenarios. A USB power cable is included in the package.
Can I use the CM353 to switch between three displays (1 IN 3 OUT)?
No. The CM353 is a three-input, one-output switch only. It routes three HDMI source devices to a single display. It cannot operate in reverse.
What cable length do I need for 8K@60Hz support?
For 8K@60Hz or 4K@120Hz performance, use a certified 48Gbps HDMI 2.1 cable with a maximum length of 3 metres. Longer cables may not support these high resolutions.
Is the CM353 compatible with older HDMI devices?
Yes. The CM353 is backward compatible with HDMI 1.4, HDMI 2.0, and earlier versions. It will work with older devices but at their native resolution and refresh rate limits.
How do I switch between the three HDMI inputs?
You can switch inputs using the included remote control or by pressing the toggle button on the switch itself. An LED indicator shows which input port is currently active.
Does the CM353 support HDR content?
Yes. The CM353 supports HDR and high-quality audio formats including Dolby TrueHD and DTS-HD for immersive home theatre and gaming experiences.
What is included in the package?
The package includes the 3-port HDMI switch, remote control, IR receiver, and USB power cable. The switch has an integrated 40cm HDMI output cable for connection to your display.
