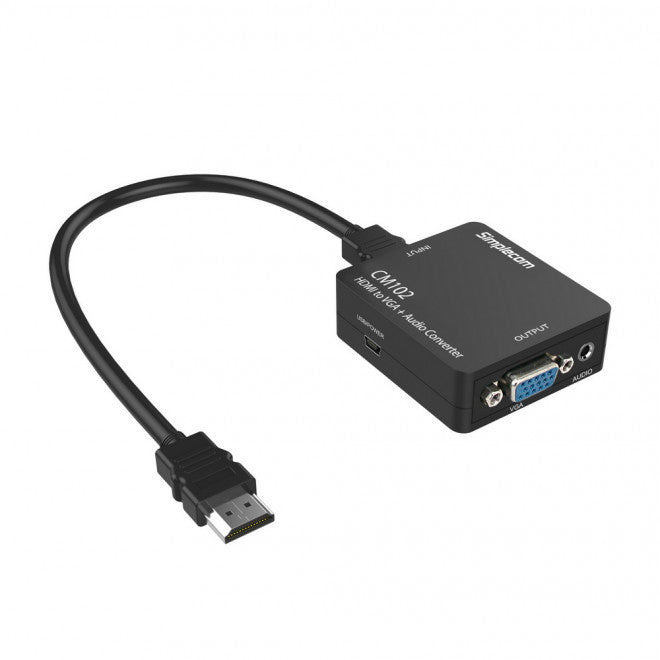

Simplecom CM102 HDMI to VGA + Audio Converter
Simplecom CM102 HDMI to VGA + Audio Converter
SKU:CBSI-CM102
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | Cables |
| SKU | CBSI-CM102 |
| Availability | In Stock |
Overview
- The Simplecom CM102 solves a common connectivity challenge: bridging HDMI source devices to VGA displays. This active converter processes digital HDMI signals and outputs both video via VGA and audio via 3.5mm, eliminating the need for separate audio cables.
Built-in chipset technology ensures reliable signal conversion across a wide range of devices, from MacBooks and Intel NUCs to PS4s, Android TV boxes, and streaming devices. The converter supports full HD resolutions up to 1920×1080 at 60Hz, making it suitable for presentations, entertainment, and professional applications.
Power is derived directly from the HDMI port itself, so no external power supply is required in most cases. A USB backup power option is included for scenarios where the HDMI source provides insufficient power. The detachable HDMI cable adds flexibility for cable management and replacement.
Specifications
| input_connector | HDMI |
|---|---|
| output_connectors | VGA + 3.5mm stereo audio |
| supported_input_formats | 480p, 576p, 720p, 1080p |
| maximum_resolution | 1920×1080 @ 60Hz |
| hdmi_cable_length | 50cm (detachable) |
| power_source | HDMI port (self-powered); USB backup power optional |
| hdcp_support | Yes |
| warranty | 12 months |
| package_contents | 1× CM102 converter, 1× USB cable, 1× HDMI lead |
Key Features
Ideal For
FAQs
Do I need a separate power adapter for the CM102?
No. The converter is self-powered via the HDMI port, which provides sufficient power in most cases. A USB cable is included as an optional backup power source for scenarios where the HDMI source cannot supply adequate power.
What is the maximum resolution supported?
The CM102 supports resolutions up to 1920×1080 (1080p Full HD) at 60Hz. It also supports lower resolutions including 720p, 576p, and 480p.
Will this converter work with my Mac or gaming console?
Yes. The CM102 is compatible with most HDMI devices including MacBooks, laptops, desktops, PS3, PS4, Raspberry Pi, Android TV boxes, Chromecast, Apple TV, and other streaming devices.
Does the CM102 support HDCP protection?
Yes, the converter is HDCP compliant and supports HDCP-protected content from streaming services such as Apple TV, Foxtel, and other internet streaming boxes.
Can I replace the HDMI cable if it gets damaged?
Yes. The HDMI cable is detachable, so you can replace it with a standard HDMI cable if needed. The cable length is 50cm.
Does the converter output audio?
Yes. The CM102 includes a 3.5mm stereo audio output jack, allowing you to route audio to speakers or headphones while the video goes to the VGA display.
Is this suitable for presentations in a boardroom or classroom?
Yes. The CM102 is ideal for connecting modern laptops and media devices to projectors and displays with VGA inputs, making it suitable for presentations, training, and collaborative meetings.
