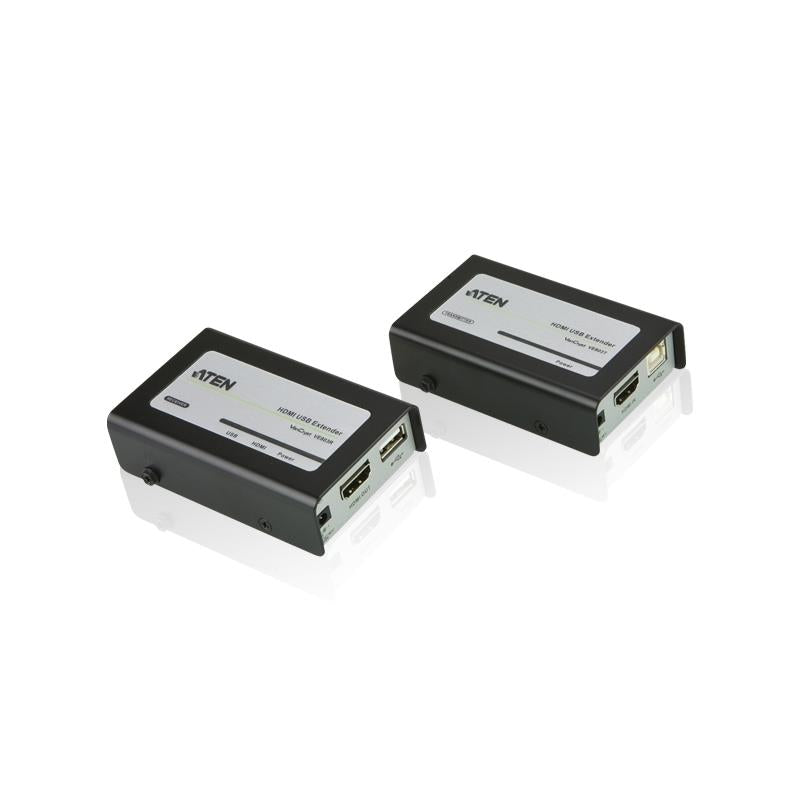

Aten VE803 HDMI USB Extender Over Cat5
Aten VE803 HDMI USB Extender Over Cat5
SKU:KVA-VE-803
The Aten VE803 is an HDMI USB extender designed for extending video and USB signals over Cat5e cabling. Featuring support for 1080p at 40m and 1080i at 60m, integrated USB extension, and touch panel control, it delivers reliable signal transmission for remote display applications.
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | Aten |
|---|---|
| Category | KVM Switch & Video |
| SKU | KVA-VE-803 |
| Availability | In Stock |
Overview
- The Aten VE803 HDMI USB Extender extends high-definition video and USB signals across distances up to 60 metres using standard Cat5e infrastructure. It delivers 1080p resolution at 40 metres and 1080i at 60 metres, making it suitable for applications where source devices and displays must be physically separated.
The integrated USB extension capability allows you to control peripheral devices and touch panels from the remote location, or operate the remote display from the local unit. This bidirectional control is particularly valuable in public-facing environments such as transportation centres, hospitals, and retail spaces where interactive touchscreen kiosks or centralised control systems are required.
The VE803 is powered via USB when connected to a compatible source device, reducing installation complexity. HDCP compliance ensures compatibility with content-protected sources, and the two-unit transmitter/receiver configuration supports flexible deployment across facility infrastructure.
Specifications
| Brand | Aten |
|---|---|
| Model | VE803 |
| Product Type | HDMI USB Extender |
| Video Resolution - 1080p | Up to 40 metres |
| Video Resolution - 1080i | Up to 60 metres |
| Transmission Medium | Cat5e cabling (two cables) |
| USB Support | Yes, bidirectional |
| Touch Panel Control | Supported |
| HDCP Compliance | Yes |
| Power Input - Local Unit | USB powered (optional) |
| Configuration | Transmitter/Receiver (2-unit) |
| Warranty | 24 months |
Key Features
Ideal For
FAQs
What cabling is required to install the Aten VE803?
The VE803 requires two Cat5e cables to connect the transmitter and receiver units. Standard Cat5e network cabling is suitable for distances up to 60 metres.
What video resolutions does the VE803 support?
The VE803 supports 1080p resolution up to 40 metres and 1080i resolution up to 60 metres over Cat5e cabling.
Can I control USB devices remotely with the VE803?
Yes. The VE803 includes bidirectional USB extension, allowing you to control USB peripherals and touch panels from either the local or remote unit.
How is the VE803 powered?
The local unit can be powered via USB when connected to an appropriate source device, simplifying installation and reducing external power requirements.
Is the VE803 suitable for protecting copyright-protected content?
Yes. The VE803 is HDCP compliant, making it suitable for use with content-protected HDMI sources.
What are typical applications for the VE803?
The VE803 is ideal for transportation centres, medical facilities, shopping malls, control rooms, and other environments requiring extended video display with touch panel or kiosk control.
