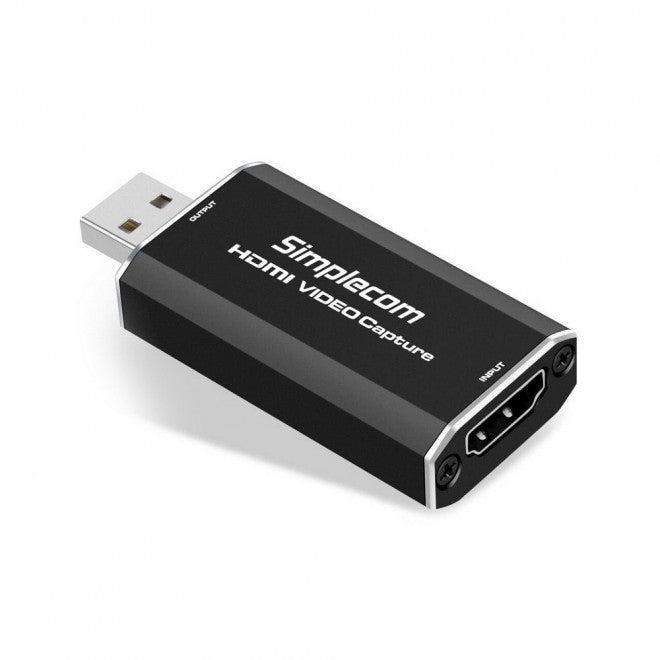

Simplecom DA315 HDMI to USB Video Capture Card 1080p
Simplecom DA315 HDMI to USB Video Capture Card 1080p
SKU:HXSI-DA315
The Simplecom DA315 is a plug-and-play HDMI to USB video capture card that delivers Full HD 1080p output for live streaming, recording, and video conferencing. With no driver installation required and broad software compatibility, it's a compact solution for content creators and IT professionals.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | USB, Bluetooth & IEEE |
| SKU | HXSI-DA315 |
| Availability | In Stock |
Overview
- The Simplecom DA315 provides a straightforward, plug-and-play solution for capturing HDMI video sources and delivering Full HD 1080p output via USB. Designed for ease of use, it requires no driver installation and works immediately when connected to a computer USB port, making it ideal for professionals who need reliable capture without technical complexity.
Compatible with UVC and UAC standards, the DA315 integrates seamlessly with popular streaming and recording software including OBS, VLC, and Amcap. It supports both Windows and Mac operating systems, making it suitable for mixed-environment workplaces and production teams.
With a compact aluminium body and no external power requirements, the DA315 is portable and convenient for mobile streaming, event coverage, and backup capture setups. HDMI input supports up to 4K resolution, allowing connection to modern video sources while outputting at Full HD 1080p via USB, balancing quality and bandwidth efficiency.
For best performance, connect directly to a computer USB port and ensure your system meets the recommended specifications: Intel Core i5 or higher, 4GB RAM, and a dedicated graphics card such as NVIDIA GT630 or better.
Specifications
| HDMI Input Resolution | Up to 3840 × 2160@30Hz (4K) |
|---|---|
| USB Output Resolution | Up to 1920 × 1080@30Hz (Full HD 1080p) |
| Video Input Bit Depth | 8, 10, or 12-bit Deep Colour |
| Video Output Format | YUV, JPEG |
| Audio Format | L-PCM |
| Maximum HDMI Cable Length | 15 metres (AWG26 standard HDMI cable) |
| Power Consumption | 0.4A @ 5VDC |
| Operating Temperature | -10 to +55°C |
| Dimensions | 64 × 28 × 13 mm (L × W × H) |
| Weight | 21.4 grams |
| Material | Aluminium alloy |
| Compliance | USB Video Class (UVC), USB Audio Class (UAC) |
| Minimum CPU | Intel Core i5 Quad-Core (Core i7 recommended) |
| Minimum RAM | 4 GB |
| Minimum Graphics Card | NVIDIA GT630 or equivalent |
| Compatible Operating Systems | Windows 10 (64-bit), Mac OS X10.9 or higher |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
Do I need to install drivers for the Simplecom DA315?
No. The DA315 is fully plug-and-play and UVC/UAC compliant. Simply connect it to your computer's USB port and it will be recognised automatically by your operating system and capture software. No driver installation is required.
What is the maximum resolution the DA315 can capture?
The DA315 accepts HDMI input up to 4K (3840 × 2160@30Hz) but outputs video via USB at Full HD 1080p (1920 × 1080@30Hz). This allows you to connect modern 4K sources while delivering 1080p output to your computer.
Does the DA315 require an external power supply?
No. The DA315 draws power directly from the USB connection (0.4A @ 5VDC) and requires no external power supply, making it portable and convenient for mobile use.
Which streaming and recording software is compatible with the DA315?
The DA315 works with most mainstream capture software including OBS, VLC, and Amcap. UVC/UAC compliance ensures broad compatibility with streaming platforms and video conferencing applications on Windows and Mac.
Can I use a USB hub or extension cable with the DA315?
For best performance and stability, connect the DA315 directly to a computer USB port. Avoid using USB hubs or extension cables, which may degrade signal quality or cause performance issues.
What are the minimum computer specifications for using the DA315?
Minimum: Intel Core i5 Quad-Core processor, 4 GB RAM, NVIDIA GT630 graphics card or equivalent. For optimal performance, particularly during high-quality streaming or recording, an Intel Core i7 processor and dedicated graphics card are recommended.
Is the DA315 compatible with all camera models?
The DA315 is compatible with most HDMI-equipped cameras and video sources. However, certain Canon (EOS 6D, 6D Mark II, Rebel) and Fujifilm (M10) models may not be supported. Check compatibility with your specific camera model before purchasing.
What operating systems does the DA315 support?
The DA315 supports Windows 10 (64-bit) and Mac OS X10.9 or higher. Both platforms recognise the device as a standard USB video and audio device.
