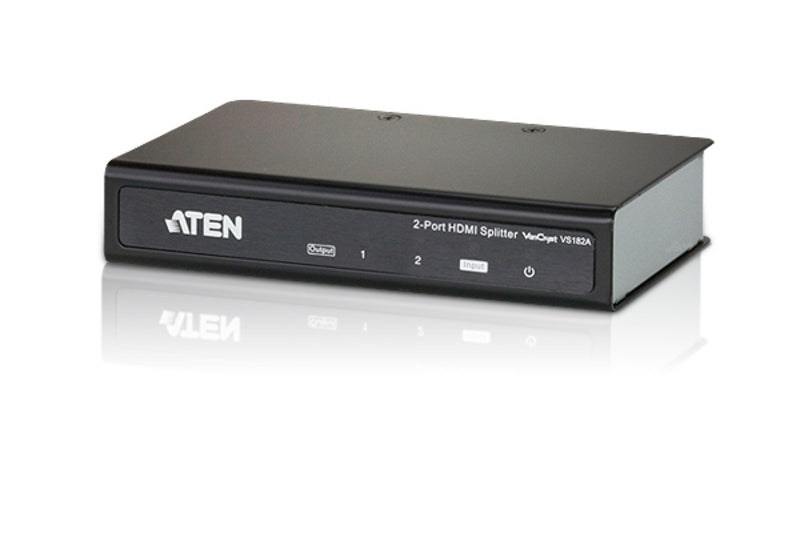

Aten VS182A 2-Port HDMI 4K Video Splitter
Aten VS182A 2-Port HDMI 4K Video Splitter
SKU:KVA-VS-182A
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | Aten |
|---|---|
| Category | KVM Switch & Video |
| SKU | KVA-VS-182A |
| Availability | In Stock |
Overview
- The Aten VS182A HDMI splitter is a straightforward solution for distributing a single HDMI source to two displays without quality loss. It supports both 4K Ultra HD and Full HD resolutions, making it suitable for modern digital displays used in corporate, educational, and commercial settings.
Built for performance, the VS182A provides 340MHz bandwidth and maintains HDCP 1.4 compliance, ensuring compatibility with content-protected material commonly used in professional environments. Dolby True HD and DTS HD Master Audio support means high-fidelity sound reproduction alongside video quality.
With true plug-and-play operation and no software installation required, the VS182A integrates quickly into existing AV systems. The ability to transmit up to 15 metres over standard cabling makes it ideal for installations where displays are positioned at distance from the source equipment, reducing the need for additional infrastructure.
Specifications
| Model | VS182A |
|---|---|
| Manufacturer | Aten |
| Product Type | 2-Port HDMI Video Splitter |
| HDMI Ports | 1 input, 2 outputs |
| Video Resolution Support | 4K Ultra HD (4Kx2K), Full HD 1080p, 3D, Deep Colour |
| Bandwidth | 340MHz |
| Audio Support | Dolby True HD, DTS HD Master Audio |
| HDCP Compliance | HDCP 1.4 |
| Maximum Cable Length | 15m (24 AWG) |
| Installation | Plug-and-play, no software required |
| Warranty | 24 months |
Key Features
Ideal For
FAQs
Can the Aten VS182A split 4K video to both displays simultaneously?
Yes. The VS182A supports 4K Ultra HD (4Kx2K) resolution and distributes the same signal to both output displays at full quality. Both displays receive identical video and audio.
Is HDCP copy protection supported?
Yes. The VS182A is HDCP 1.4 compliant, making it suitable for use with content-protected material in professional and commercial applications.
How far can HDMI cables extend from the splitter to the displays?
The VS182A supports cable runs up to 15 metres (using 24 AWG cable), allowing flexibility in display placement within larger spaces.
Does the splitter require software installation or configuration?
No. The VS182A is a passive plug-and-play device. Simply connect the source and displays, and it operates immediately without drivers or software.
What audio formats does the VS182A support?
The splitter supports Dolby True HD and DTS HD Master Audio, ensuring high-quality audio reproduction alongside video to both displays.
Can I use this splitter in a home theatre setup?
Yes. The VS182A is suitable for home theatre applications, supporting all HDMI-enabled equipment including DVD players, set-top boxes, and HDMI displays.
What video sources are compatible?
The VS182A works with all HDMI-enabled equipment, including DVD players, Blu-ray players, satellite set-top boxes, gaming consoles, and media streaming devices.
