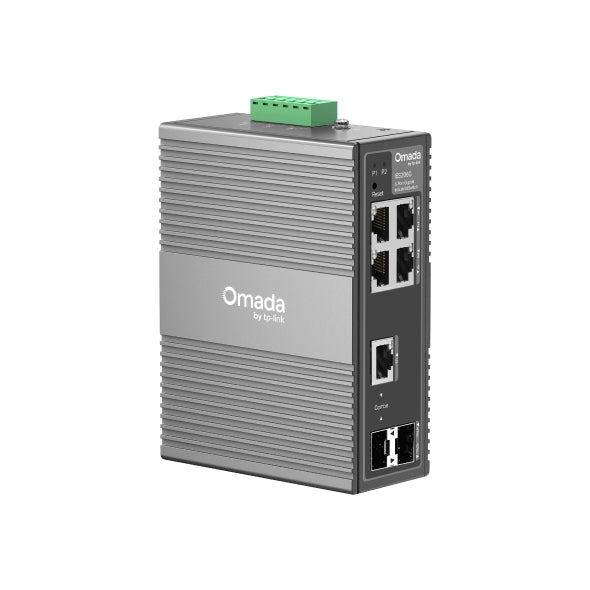

TP-Link IES206G Omada 6-Port Gigabit Industrial Managed Switch
TP-Link IES206G Omada 6-Port Gigabit Industrial Managed Switch
SKU:NWTL-IES206G
Couldn't load pickup availability
- See our return policy
- 5 years Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - SMB |
| SKU | NWTL-IES206G |
| Availability | In Stock |
Overview
- The TP-Link IES206G Omada is a professional industrial-grade managed network switch engineered for deployment in challenging environments. With 6 Gigabit ports including SFP connectivity, it provides flexible network expansion whilst maintaining enterprise-class management capabilities.
Built to withstand extreme conditions, the IES206G operates reliably from -40 to 75°C and includes 6 kV lightning protection, making it ideal for outdoor installations, manufacturing floors, and remote locations. Dual redundant power inputs ensure continuous operation even during power supply failure.
The switch integrates seamlessly with the TP-Link Omada management platform, enabling centralised monitoring and configuration via web interface or mobile app. Advanced features including VLAN segmentation, Quality of Service (QoS), and Spanning Tree Protocol (STP/RSTP) support sophisticated network designs without excessive complexity.
With its IP40-rated aluminium housing, DIN-rail mounting, and comprehensive 5-year warranty, the IES206G is a dependable choice for businesses requiring industrial-grade switching in tough operating conditions.
Specifications
| Ports | 6× Gigabit Ethernet (4× RJ45, 1× Combo RJ45/SFP, 1× SFP) |
|---|---|
| Port Speed | 1000 Mbps (Gigabit) |
| Switching Fabric | Not specified |
| Operating Temperature | -40 to 75°C |
| Storage Temperature | Not specified |
| Humidity Range | Not specified |
| Power Supply | Dual redundant 1+1 input |
| Power Consumption | Not specified |
| Casing | IP40-rated aluminium |
| Mounting | DIN-rail and wall-mount compatible |
| Management Features | VLAN, QoS, STP, RSTP |
| Management Interface | Web, Omada app |
| Lightning Protection | 6 kV |
| Certifications | Not specified |
| Warranty | 5 years |
Key Features
Ideal For
FAQs
What is the difference between the RJ45/SFP combo port and dedicated SFP port?
The combo port supports either an RJ45 copper connection or an SFP fibre module, allowing flexibility in how you connect that port. The dedicated SFP port is fibre-only. This configuration gives you options for both copper and fibre uplinks.
Can the IES206G operate in extreme temperatures?
Yes. The IES206G is rated for operation from -40°C to 75°C, making it suitable for outdoor installations, unheated facilities, and other harsh environments where standard commercial switches would fail.
What does the 1+1 redundant power input mean?
The switch has two power inputs that work simultaneously. If one power supply fails, the other automatically keeps the switch running, ensuring no network downtime due to power loss.
How is the IES206G managed?
The switch integrates with TP-Link's Omada management platform, offering centralised control via web interface or the Omada mobile app. This allows remote monitoring and configuration across multiple switches.
Is the IES206G suitable for outdoor installations?
Yes. Its industrial-grade design includes IP40 casing, 6 kV lightning protection, and wide temperature tolerance (-40–75°C), making it well-suited for outdoor and exposed locations.
What is the 5-year warranty coverage?
TP-Link provides a comprehensive 5-year warranty covering hardware defects. Contact Hyetech Australia for specific warranty terms and support options available in your region.
Can I use this switch with non-Omada TP-Link equipment?
Yes. Whilst the IES206G integrates with Omada for advanced management, it operates as a standard Gigabit managed switch and is compatible with standard network devices and protocols.
