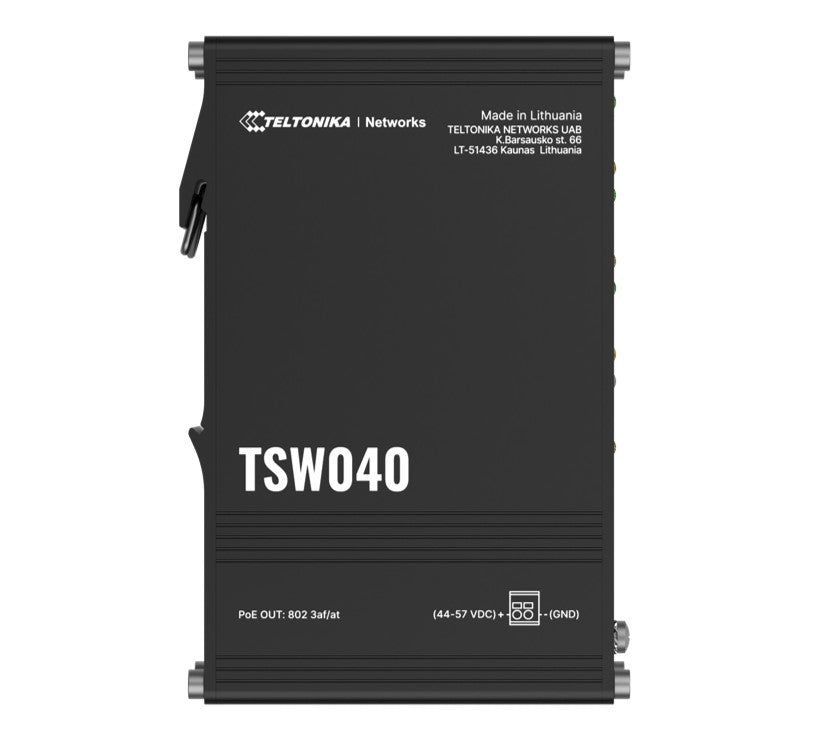

Teltonika TSW040 8-Port Industrial PoE+ Switch
Teltonika TSW040 8-Port Industrial PoE+ Switch
SKU:NHT-TSW040
The Teltonika TSW040 is an 8-port industrial PoE+ switch designed for IoT and remote networking applications. Featuring wide voltage input (7–57 VDC), integrated DIN rail mounting, and auto MDI/MDIX crossover support, it delivers reliable power delivery and connectivity for distributed installations.
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | Teltonika |
|---|---|
| Category | IoT / LTE |
| SKU | NHT-TSW040 |
| Availability | In Stock |
Overview
- The Teltonika TSW040 is a robust 8-port industrial switch purpose-built for IoT and remote applications. Its wide input voltage range (7–57 VDC) makes it ideal for battery-backed and renewable energy systems, while integrated DIN rail mounting enables direct installation in industrial enclosures and control cabinets.
As an unmanaged switch, the TSW040 requires no configuration, reducing deployment time and technical complexity. The PoE+ capability allows you to power networked devices directly from the switch, simplifying cabling and reducing installation costs.
Auto MDI/MDIX crossover eliminates the need for crossover cables, improving flexibility in system design. With 24-month warranty coverage, it provides peace of mind for critical industrial connectivity.
Specifications
| Ports | 8 × 10/100 Mbps Ethernet with PoE+ |
|---|---|
| Input Voltage | 7–57 VDC (44–57 VDC for PoE output) |
| PoE Standard | PoE+ (IEEE 802.3at) |
| Auto MDI/MDIX | Yes |
| Management | Unmanaged |
| Mounting | DIN rail bracket (integrated) |
| Warranty | 24 months |
| Manufacturer | Teltonika |
Key Features
Ideal For
FAQs
What is the maximum power delivery per port?
The TSW040 supports PoE+ (IEEE 802.3at), which delivers up to 30W per port. Refer to the technical datasheet for specific power budgets and simultaneous port limitations.
Can I use this switch with battery or solar power systems?
Yes. The wide input voltage range (7–57 VDC) makes it suitable for battery-backed and solar-powered deployments, though PoE output requires a minimum of 44 VDC.
Is this switch managed or unmanaged?
The TSW040 is an unmanaged switch, meaning it requires no configuration. It works out of the box, making it ideal for simple, reliable IoT and edge deployments.
Does it support auto MDI/MDIX?
Yes, the TSW040 supports auto MDI/MDIX crossover, so you can use standard Ethernet cables in any configuration without needing crossover cables.
What mounting options are available?
The switch includes an integrated DIN rail bracket, allowing direct mounting to standard DIN rails in industrial control cabinets and enclosures.
Is the TSW040 suitable for outdoor installations?
While the switch is industrial-grade, outdoor use depends on environmental protection. Ensure it is housed in a suitable enclosure to protect against moisture, temperature extremes, and physical damage.
