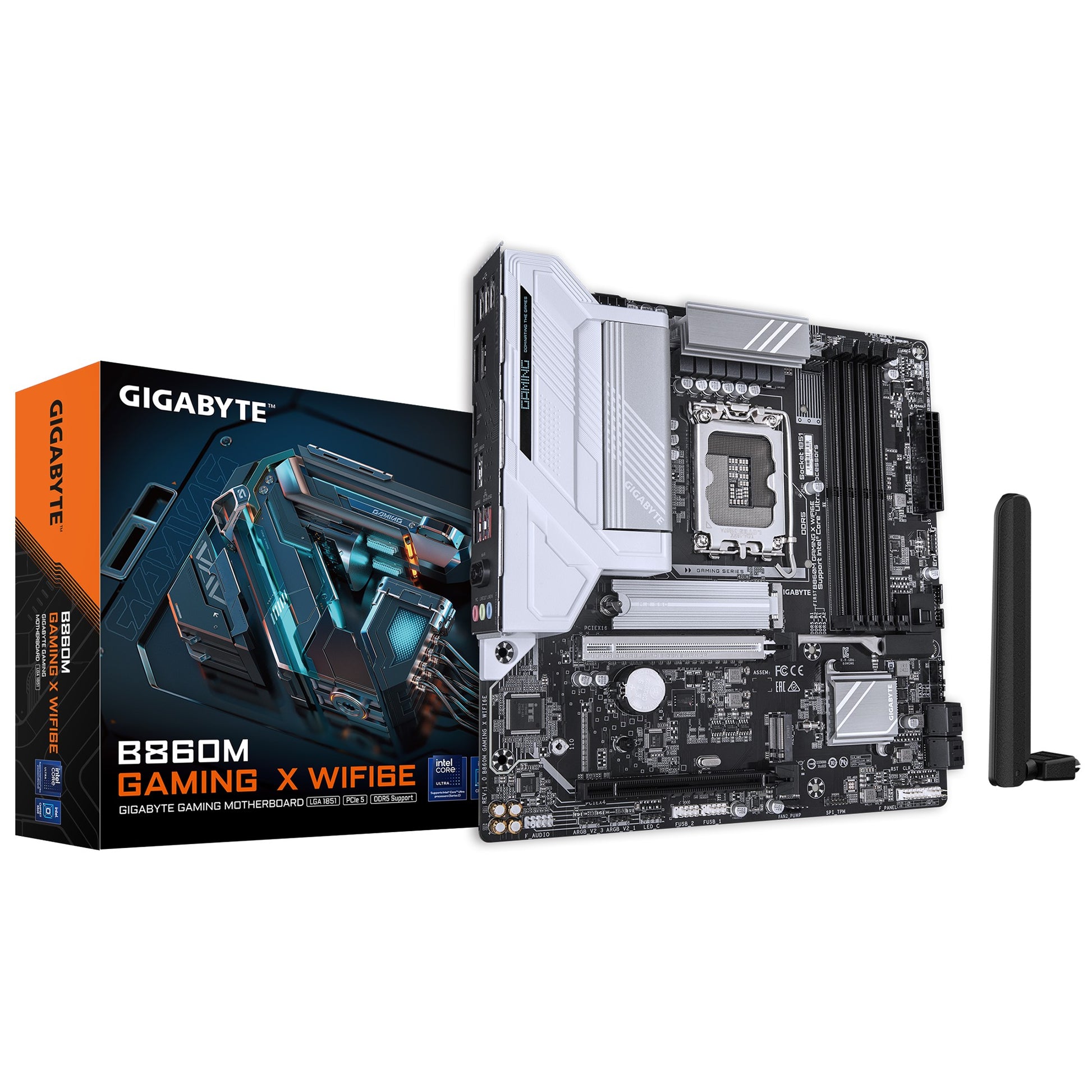

Gigabyte B860M GAMING X WIFI6E Intel Motherboard
Gigabyte B860M GAMING X WIFI6E Intel Motherboard
SKU:MBG-B860MGAMINGXWIFI
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Motherboards |
| SKU | MBG-B860MGAMINGXWIFI |
| Availability | In Stock |
Overview
- The Gigabyte B860M GAMING X WIFI6E is a feature-rich micro-ATX motherboard built on the Intel B860 chipset for Intel Core Ultra processors. Its compact form factor makes it ideal for gaming rigs, workstations, and professional builds where space is a consideration without compromising on performance or expandability.
This motherboard delivers cutting-edge connectivity and storage capabilities. PCIe 5.0 support on the primary expansion slot ensures future-proof compatibility with the latest graphics cards and NVMe SSDs. The dual M.2 slots provide flexible high-speed storage configuration, while four SATA ports with RAID support offer traditional storage options for data redundancy and management.
Built-in Intel Wi-Fi 6E AX211 and 2.5GbE LAN provide fast wireless and wired networking. The comprehensive USB ecosystem—including USB4 Type-C with DisplayPort—supports high-speed peripherals and multi-display configurations. Triple-display support via HDMI 2.1 and DisplayPort 2.1 makes it suitable for creative professionals and productivity-focused workstations.
Specifications
| Brand | Gigabyte |
|---|---|
| Model | B860M GAMING X WIFI6E |
| Form Factor | Micro-ATX |
| Chipset | Intel B860 Express |
| CPU Socket | LGA1851 |
| CPU Compatibility | Intel Core Ultra Processors |
| Memory Type | DDR5 |
| Memory Speed Support | DDR5-5600 to DDR5-9200 (OC) |
| Memory Slots | 4 x DDR5 DIMM |
| Maximum Memory | 256 GB (64 GB per DIMM) |
| Memory Features | XMP support, ECC Un-buffered and non-ECC Un-buffered DIMM compatible |
| PCI Express Slots | 2 x PCIe x16 (1x PCIe 5.0 x16, 1x PCIe 4.0 x4) |
| M.2 Storage Slots | 2 x M.2 Socket 3 (1x PCIe 5.0 x4/x2, 1x PCIe 4.0 x4/x2) |
| M.2 Supported Form Factors | 2280, 2580, 22110, 25110 |
| SATA Ports | 4 x SATA 6Gb/s |
| RAID Support | RAID 0, RAID 1, RAID 5, RAID 10 |
| Video Output | 1x HDMI 2.1, 1x USB4 Type-C with DisplayPort, 1x DisplayPort 2.1 |
| Maximum Resolution | 4096x2160@60 Hz (HDMI), 3840x2160@144 Hz (USB4/DisplayPort) |
| Multi-Display Support | Up to 3 displays simultaneously |
| LAN | Realtek 2.5GbE (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | Intel Wi-Fi 6E AX211 |
| USB Ports (Back Panel) | 1x USB4 Type-C, 1x USB Type-C 3.2 Gen 2, 3x USB 3.2 Gen 1, 5x USB 2.0 |
| USB Headers (Internal) | 1x USB Type-C 3.2 Gen 2, 2x USB 3.2 Gen 1, 4x USB 2.0 |
| Total USB 3.2 Ports | 6 x USB 3.2 Gen 1 (including headers) |
| Total USB 2.0 Ports | 9 x USB 2.0/1.1 |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What Intel processors are compatible with this motherboard?
The Gigabyte B860M GAMING X WIFI6E supports Intel Core Ultra processors using the LGA1851 socket. For the complete list of supported CPUs, refer to Gigabyte's official CPU support list on their website.
Can I use DDR4 memory in this motherboard?
No, this motherboard supports DDR5 memory only. It has 4 DDR5 DIMM slots supporting speeds from DDR5-5600 to DDR5-9200 MHz with overclocking.
What is the maximum storage capacity I can install?
You can install up to 4 SATA drives (via 4x SATA 6Gb/s ports) and 2 NVMe M.2 SSDs (one PCIe 5.0 and one PCIe 4.0 slot). The total storage depends on individual drive capacities.
Does this motherboard support RAID?
Yes, it supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices. RAID configuration is managed through the BIOS.
Is this motherboard suitable for Wi-Fi connectivity without additional cards?
Yes, it includes Intel Wi-Fi 6E AX211 built-in. It also has 2.5GbE Ethernet for wired connectivity. No additional wireless cards are needed unless upgrading to Wi-Fi 7.
Can I connect multiple monitors to this motherboard?
Yes, it supports up to three displays simultaneously via HDMI 2.1, DisplayPort 2.1, and USB4 Type-C with DisplayPort output.
What is the warranty period?
The Gigabyte B860M GAMING X WIFI6E comes with a 36-month manufacturer warranty.
Does this motherboard support PCIe 5.0?
Yes, the primary PCI Express x16 slot supports PCIe 5.0. The secondary slot supports PCIe 4.0 and runs at x4. The primary M.2 slot also supports PCIe 5.0.
