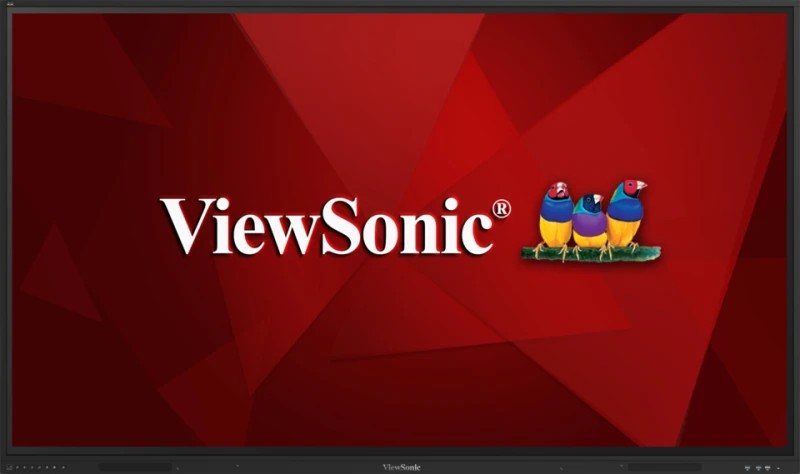

ViewSonic ViewBoard IFP86G1 86" 4K Interactive Display
ViewSonic ViewBoard IFP86G1 86" 4K Interactive Display
SKU:IPV-IFP86G1
The ViewSonic ViewBoard IFP86G1 is an 86-inch 4K interactive display designed for flexible collaboration and presentations. Featuring ultra-fine touch technology, USB-C plug-and-play connectivity, and an upgradable framework, it supports BYOD integration with Windows, Linux, and optional PC modules for modern workplaces.
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | ViewSonic Commercial |
|---|---|
| Category | Commercial Display |
| SKU | IPV-IFP86G1 |
| Availability | In Stock |
Overview
- The ViewSonic ViewBoard IFP86G1 is a large-format 86-inch interactive display engineered for modern business environments where collaboration and flexibility are essential. The Genesis series OS-free architecture eliminates dependency on specific operating systems, allowing organisations to bring their own devices and connect seamlessly via USB-C with simultaneous power delivery (65W) and data sharing.
With ultra-fine IR touch technology supporting up to 40 simultaneous touch points, the display enables intuitive multi-user interaction suitable for brainstorming sessions, presentations, and interactive training. The 4K UHD resolution (3840 x 2160) and 400 nits brightness ensure sharp, vibrant visuals in professional settings.
The upgradable framework design sets this display apart, allowing organisations to extend its operational life and adapt to evolving technology needs without full replacement. Optional slot-in PC modules provide integrated computing when needed, or users can leverage BYOD functionality for maximum flexibility. Comprehensive connectivity—including three HDMI 2.0 ports, USB Type-C, and dual LAN (RJ45)—ensures compatibility with diverse enterprise environments running Windows, Linux, or other supported platforms.
Specifications
| Panel Size | 86 inches |
|---|---|
| Aspect Ratio | 16:9 |
| Resolution | 3840 x 2160 (4K UHD) |
| Display Area | 1895.04 mm (H) × 1065.96 mm (V) |
| Panel Type | TFT LCD with DLED backlight |
| Brightness | 400 nits (typical) |
| Contrast Ratio | 4000:1 (typical); 6000:1 (DCR) |
| Colour Support | 1.07 billion colours |
| Touch Technology | Ultra-fine IR recognition |
| Touch Resolution | 32767 × 32767 |
| Touch Points | Windows: 40 points; Android: 20 points |
| HDMI | 3 × HDMI 2.0 (rear); HDMI 1 & 3 support CEC; HDMI 2 supports CEC & ARC |
| HDMI Compatibility | 3840 × 2160 @ 60 Hz |
| RGB/VGA | 1 × RGB input |
| Audio Input | 1 × 3.5 mm audio jack |
| Audio Output | 1 × 3.5 mm audio jack |
| Speakers | 2 × 10W |
| USB Type-A | Front: 1 × USB 2.0, 2 × USB 3.0; Rear: 2 × USB 3.0, 1 × USB 2.0 (firmware update) |
| USB Type-B | 2 × USB 3.0 (rear) |
| USB Type-C | 1 × USB-C (supports DisplayPort 1.2, touch, data sharing, PD 65W, 10M/100M Ethernet) |
| RS232 | 1 × serial port |
| OPS Slot | Yes (supports optional PC modules) |
| Network | RJ45 dual LAN (1 in, 1 out); 10/100/1000 Mbps via OPS; 10/100 Mbps via USB-C |
| SmartPort USB | All-in-one USB control |
| Light Sensor | Yes |
| Top Camera Plate | Yes |
| Compatible PC Module | VPC37-W53-G1 |
| Operating System Support | Windows, Linux, EDLA |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
What does BYOD mean, and how does the IFP86G1 support it?
BYOD (Bring Your Own Device) allows users to connect their own laptops, tablets, or devices to the display. The IFP86G1 supports BYOD through USB-C plug-and-play connectivity, HDMI inputs, and wireless options, eliminating the need for dedicated computing hardware while maintaining full interactivity.
Can I add a PC to the IFP86G1 later?
Yes. The display features an OPS (Open Pluggable Specification) slot that accepts optional slot-in PC modules such as the VPC37-W53-G1. This allows organisations to start with a BYOD-only setup and upgrade to integrated computing when needed.
Does the USB-C port charge devices while sharing data?
Yes. The USB-C port supports DisplayPort, touch input, data sharing, and Power Delivery (PD) up to 65W, allowing simultaneous charging and data transfer for compatible devices.
What is the maximum number of simultaneous touch inputs?
The IFP86G1 supports up to 40 touch points on Windows devices and 20 touch points on Android devices, enabling multi-user collaborative interaction.
Is this display suitable for outdoor or high-brightness environments?
With 400 nits brightness, the IFP86G1 is designed for typical indoor professional settings. For outdoor or very bright environments, additional lighting considerations may be needed.
What warranty coverage is included?
The ViewSonic ViewBoard IFP86G1 includes a 60-month (5-year) manufacturer's warranty, covering defects in materials and workmanship.
Can the framework be upgraded to extend the display's life?
Yes. The upgradable framework design allows components to be refreshed or enhanced without replacing the entire display, helping organisations extend their investment over time.
What operating systems are compatible with this display?
The IFP86G1 is OS-free and supports Windows, Linux, and EDLA (Education Digital Learning Agreement) environments, offering flexibility across different organisational IT infrastructures.
