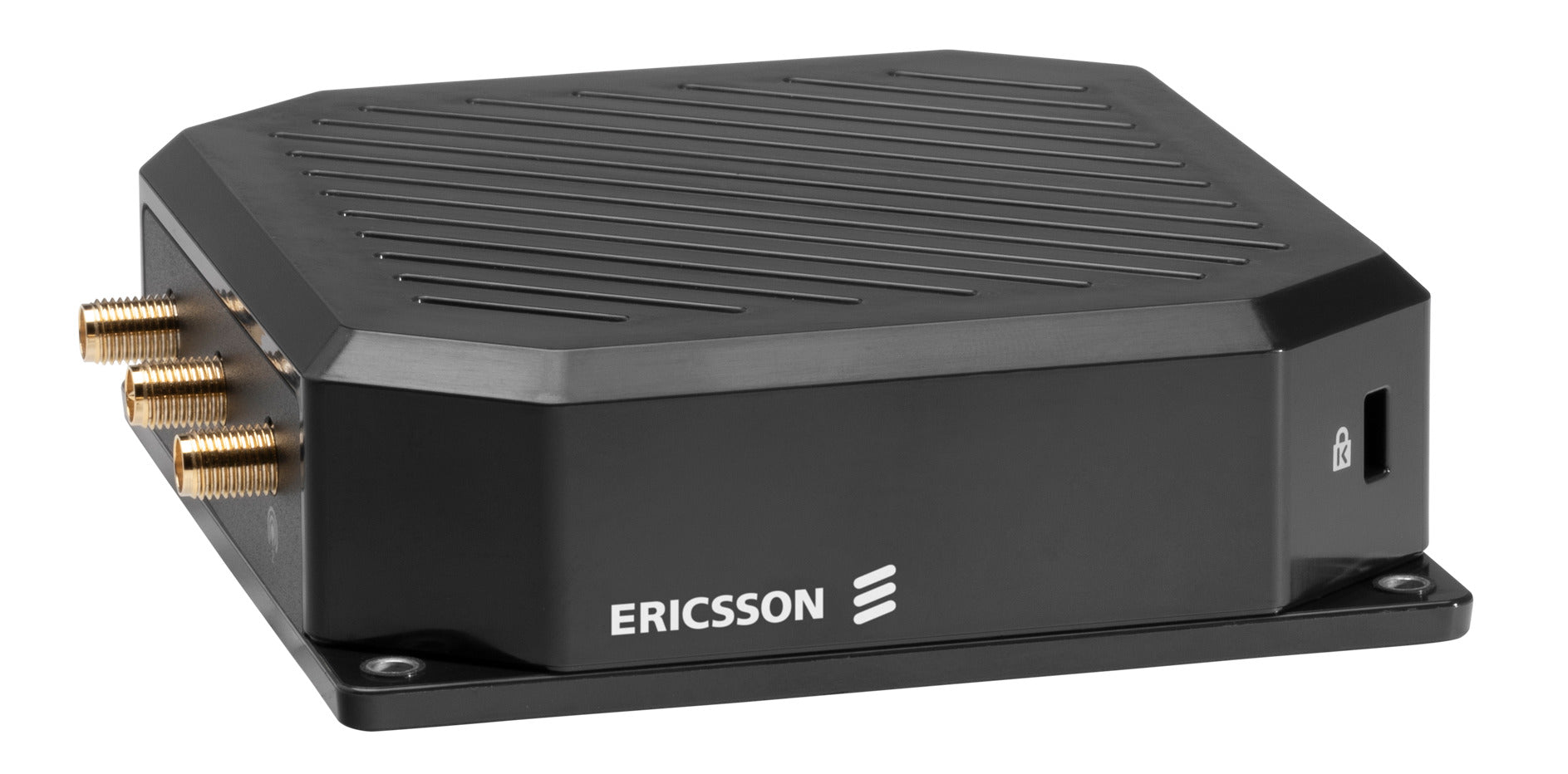

Cradlepoint S400 Compact IoT Router with LTE CAT 6
Cradlepoint S400 Compact IoT Router with LTE CAT 6
SKU:NHC-S400E-3Y
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Ericsson |
|---|---|
| Category | IoT / LTE |
| SKU | NHC-S400E-3Y |
| Availability | In Stock |
Overview
- The Cradlepoint S400 is a semi-ruggedised compact router designed for zero trust IoT applications in demanding environments. With an embedded Cat 6 LTE modem, dual SIM support, and Wi-Fi 5 connectivity, it provides fast and reliable connectivity for edge locations where traditional fixed broadband is unavailable or insufficient.
Security is built in through NetCloud Secure Connect SASE, which provides zero trust architecture and connect-and-go security without additional software licensing. The device is managed entirely through Ericsson's cloud-based NetCloud Manager, enabling IT teams to define policies, deploy configurations, and monitor connectivity from a single dashboard at scale.
The semi-ruggedised plastic form factor operates reliably across extreme temperature ranges (-20°C to 60°C) and supports vibration, making it suitable for vehicles, outdoor installations, and portable deployments. Configurable GPIO ports, GNSS/GPS capability, and NetCloud SDK access allow integration with custom IoT applications and third-party systems.
Certified by major U.S. carriers and FirstNet Trusted for public safety networks, the S400 is ideal for enterprises requiring secure, managed cellular IoT connectivity across distributed locations.
Specifications
| Cellular Technology | LTE CAT 6 |
|---|---|
| Cellular Antennas | 2 × SMA connectors |
| SIM Support | Dual SIM |
| Modem Type | Embedded Cat 6 |
| 5G Support | No |
| Wi-Fi Standard | 802.11ac (Wi-Fi 5) |
| Wi-Fi Bands | Dual-band (2.4 GHz and 5 GHz) |
| Wi-Fi Configuration | Single-radio, non-concurrent operation, 1×1 SISO |
| Ethernet Ports | 1 × GbE (LAN/WAN switchable), 2 × FE expansion module |
| USB Ports | 1 |
| Serial Ports | 1 (expansion module) |
| GPIO | Configurable |
| GNSS | Passive GPS |
| PoE Support | Yes |
| VPN Tunnel Count | 5 |
| Firewall Throughput | 95 Mbps |
| Form Factor | Plastic |
| Operating Temperature | -20°C to 60°C |
| Vibration Tolerance | Yes |
| Private Cellular Network | Yes (4G LTE CBRS) |
| Cloud Management | NetCloud Manager |
| Security | Zero Trust architecture (NetCloud Secure Connect SASE) |
| Network Operator Certifications | AT&T, T-Mobile, Verizon |
| Public Safety Certifications | FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline |
| Regulatory Certifications | PTCRB (U.S.), GCF (global) |
| Warranty | 36 months |
| Included Accessories | AC power supply, antennas |
| Management Subscription | 3-year Essentials NetCloud WiFi included |
Key Features
Ideal For
FAQs
Does the Cradlepoint S400 support 5G?
No, the S400 is equipped with an LTE CAT 6 modem and does not support 5G connectivity. It is optimised for reliable 4G LTE coverage in remote and edge locations.
What security features are included?
The S400 includes NetCloud Secure Connect SASE, which provides zero trust architecture and connect-and-go security. This is included as part of the 3-year Essentials NetCloud subscription.
Can the S400 be used in vehicles or harsh environments?
Yes, the S400 is semi-ruggedised and designed for harsh conditions. It operates reliably across -20°C to 60°C temperature ranges and supports vibration, making it suitable for mobile and outdoor IoT deployments.
How many SIM cards can the S400 use?
The S400 supports dual SIM cards, allowing you to configure primary and failover cellular connections from different carriers.
Is the S400 suitable for public safety networks?
Yes, the S400 is FirstNet Trusted certified and certified for T-Mobile Connecting Heroes and Verizon Frontline public safety networks.
Can the S400 be customised for specific IoT applications?
Yes, the S400 features configurable GPIO ports, GNSS/GPS capability, and support for the NetCloud SDK and APIs, allowing integration with custom IoT applications and third-party systems.
What is included in the 3-year Essentials NetCloud subscription?
The subscription includes NetCloud Manager cloud-based management, NetCloud Secure Connect SASE security, and Wi-Fi functionality. Central policy management and deployment across your IoT fleet is handled through the cloud dashboard.
What is the maximum firewall throughput?
The S400 delivers 95 Mbps firewall throughput and supports up to 5 concurrent VPN tunnels.
