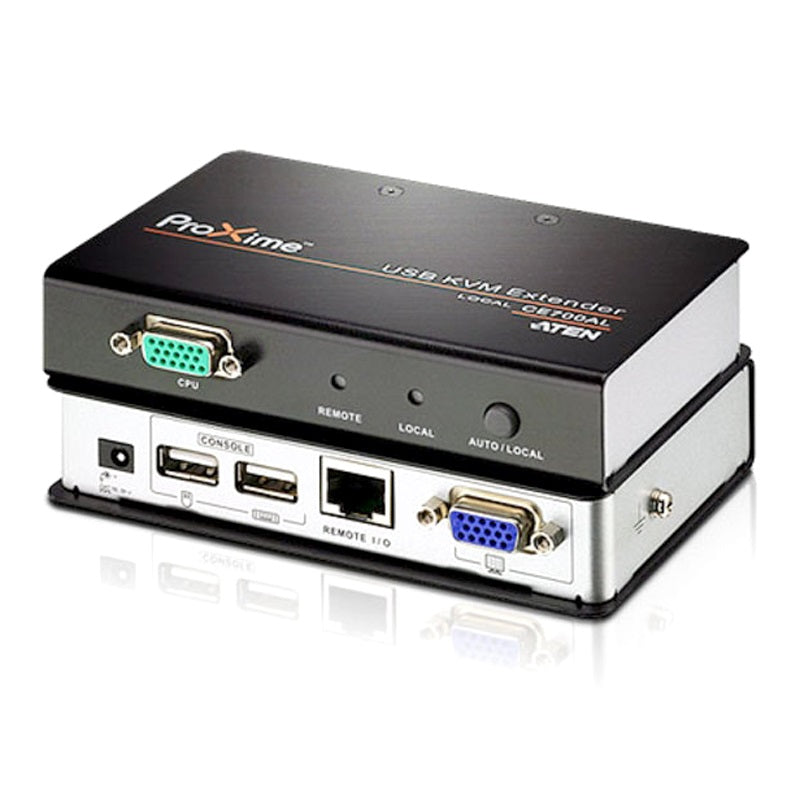

Aten CE700A USB KVM Extender with Cat 5 Support

Aten CE700A USB KVM Extender with Cat 5 Support

KVA-CE-700A

The Aten CE700A is a USB KVM extender that extends console access up to 150 metres via Cat 5e cabling. With 1920×1200 resolution support, ESD protection, and automatic gain adjustment, it delivers reliable remote access for IT professionals managing distant servers.
$432.14 AUD
$432.14 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
No reviews yet

Product Information

BrandAten
CategoryKVM Switch & Video
SKUKVA-CE-700A
AvailabilityIn Stock
Aten CE700A USB KVM Extender with Cat 5 Support$432.14
$432.14
Overview
  • The Aten CE700A is a professional-grade USB KVM extender designed to extend keyboard, video, and mouse control over standard Cat 5e cabling up to 150 metres away. This makes it ideal for server room deployments where console access must be available from remote operator stations without expensive proprietary cables or infrastructure changes.

    The extender maintains full local console access at the host system whilst simultaneously enabling remote operation. Its custom ASIC chipset and automatic distance-sensing gain adjustment ensure stable, reliable video quality regardless of cable length. The device prioritises durability with comprehensive 8KV/15KV ESD and 2KV surge protection, protecting both the extender and connected equipment from electrical damage.

    Supporting resolutions up to 1920×1200@60Hz at 30 metres, the CE700A provides practical performance for server management, system administration, and remote troubleshooting tasks. The use of standard Cat 5e cabling reduces installation costs and complexity compared to proprietary solutions.
Specifications
BrandAten
ModelCE700A
Product TypeUSB KVM Extender
Console InterfaceUSB Keyboard, USB Mouse, VGA Monitor
Maximum Resolution1920×1200@60Hz at 30m; 1600×1200@60Hz at 100m; 1280×1024@60Hz at 150m
Maximum Cable Distance150 metres
Cable TypeCat 5e
ESD Protection8KV/15KV
Surge Protection2KV
Special FeaturesAutomatic gain adjustment, custom ASIC chipset, local console access maintained
Warranty24 months
Key Features
Extends USB KVM access up to 150 metres via standard Cat 5e cabling
Supports up to 1920×1200@60Hz video resolution
8KV/15KV ESD protection and 2KV surge protection
Automatic gain adjustment based on cable distance
Custom ASIC for enhanced reliability and compatibility
Local console access maintained at host location
Ideal For
Server rooms and data centres requiring remote console access
IT managers needing to control systems from distant locations
Facilities with existing Cat 5e infrastructure
Organisations seeking cost-effective KVM extension solutions
Environments requiring ESD-protected remote equipment control
FAQs
What is the maximum distance the CE700A can extend KVM control?

The CE700A extends KVM control up to 150 metres via Cat 5e cabling. Video resolution degrades gracefully with distance: 1920×1200@60Hz at 30m, 1600×1200@60Hz at 100m, and 1280×1024@60Hz at 150m.

Does the CE700A work with standard Cat 5e cable?

Yes, the CE700A uses inexpensive, standard Cat 5e cabling rather than proprietary cables, making installation more convenient and cost-effective.

Is local console access available when the extender is in use?

Yes, the CE700A maintains full local console access at the host system whilst simultaneously enabling remote operation via the extender.

What protection does the CE700A offer against electrical damage?

The extender features 8KV/15KV ESD protection and 2KV surge protection to safeguard both the device and connected equipment from electrical damage.

How does the CE700A handle different cable distances?

The device automatically senses the distance to the system and adjusts the signal gain accordingly to maintain video quality across varying cable lengths.

What warranty does the Aten CE700A include?

The CE700A comes with a 24-month manufacturer's warranty covering defects in materials and workmanship.
