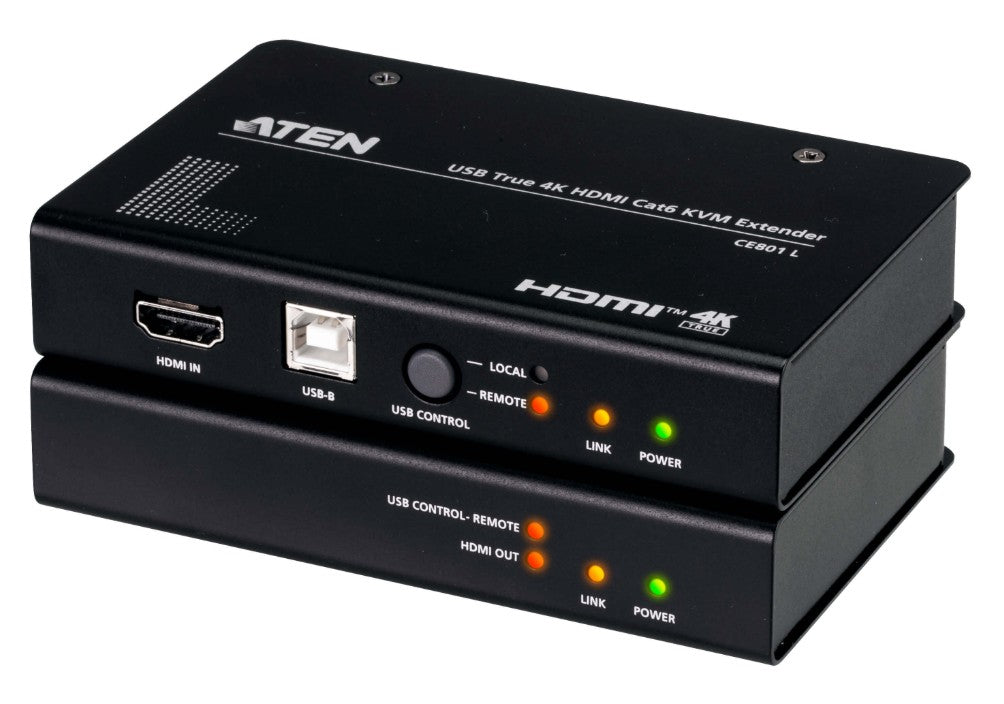

ATEN CE801 USB True 4K HDMI KVM Extender
ATEN CE801 USB True 4K HDMI KVM Extender
SKU:KVA-CE801-AT-U
The ATEN CE801 is a USB True 4K HDMI KVM extender designed for control centres, medical facilities, and industrial environments. Featuring 70 m extension over Cat 6, dual console USB control, and 4K @ 60 Hz support, it delivers reliable multi-signal transmission for IT professionals.
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | Aten |
|---|---|
| Category | KVM Switch & Video |
| SKU | KVA-CE801-AT-U |
| Availability | Out of Stock |
Overview
- The ATEN CE801 is a professional-grade KVM extender that transmits True 4K HDMI video, USB keyboard/mouse signals, and RS-232 control data across distances up to 70 m using a standard Cat 6 cable. This makes it ideal for applications where operators need to control equipment from a remote console without signal degradation.
Dual console USB control allows operators to switch control privilege between local and remote units via a pushbutton, enabling flexible multi-operator environments. The extender maintains full 4K resolution at 60 Hz with 4:4:4 colour sampling, ensuring sharp, detailed visualization critical for precision work in control centres, medical facilities, and industrial settings.
With HDR 10 support, HDCP 2.2/2.3 compliance, and embedded audio formats including 7.1ch Dolby and DTS, the CE801 delivers comprehensive AV extension in a single solution. Built-in 8KV/15KV ESD protection and rack-mountable design make it suitable for mission-critical installations. The long reach mode also supports 1080p extension up to 100 m for flexibility in larger deployments.
Specifications
| Model | CE801 |
|---|---|
| Product Type | USB True 4K HDMI KVM Extender |
| Maximum Video Resolution | 3840 x 2160 @ 60 Hz (4:4:4) |
| HDMI Colour Sampling | 4:4:4 |
| HDCP Compliance | HDCP 2.2 / 2.3 |
| HDR Support | HDR 10 |
| Extension Distance (4K) | 70 m |
| Extension Distance (1080p Long Reach) | 100 m |
| Transmission Cable | Cat 6 |
| USB Control | Dual console keyboard/mouse with switchable privilege |
| RS-232 Extension | Yes |
| Audio Formats Supported | 7.1ch Dolby, DTS |
| ESD Protection | 8KV/15KV |
| Installation | Plug-and-play, no drivers required |
| Form Factor | Rack-mountable |
| Connector Type | DC Jack with screw-lock |
| Package Contents | 1x CE801L Local Unit, 1x CE801R Remote Unit, USB Type-A to Type-B cable, 2x mounting kits, 8x foot pads, 2x power adapters, user instructions |
| Warranty | 24 months |
Key Features
Ideal For
FAQs
What is the maximum distance the ATEN CE801 can transmit 4K video?
The CE801 extends True 4K video (3840 x 2160 @ 60 Hz) up to 70 m over a single Cat 6 cable. In long reach mode, it can extend 1080p video up to 100 m.
Can I control the remote equipment from both local and remote consoles simultaneously?
Yes. The CE801 features dual console USB control, allowing you to switch keyboard/mouse control privilege between the remote and local units via the USB control mode pushbutton.
Does the CE801 require software or drivers to operate?
No. The CE801 is plug-and-play and requires no software or driver installation.
What audio formats does the CE801 support?
The CE801 supports digital audio formats including 7.1ch Dolby and DTS audio embedded in the HDMI signal.
Is the CE801 suitable for industrial environments?
Yes. The CE801 includes RS-232 control signal extension for industrial devices, built-in ESD protection (8KV/15KV), and is rack-mountable, making it ideal for factories, control centres, and mission-critical applications.
What HDR standards does the CE801 support?
The CE801 supports HDR 10 and is HDCP 2.2/2.3 compliant for enhanced video quality and content protection.
What is included in the package?
The package includes a local unit (CE801L), remote unit (CE801R), USB Type-A to Type-B cable, 2 mounting kits, 8 foot pads, 2 power adapters, and user instructions.
