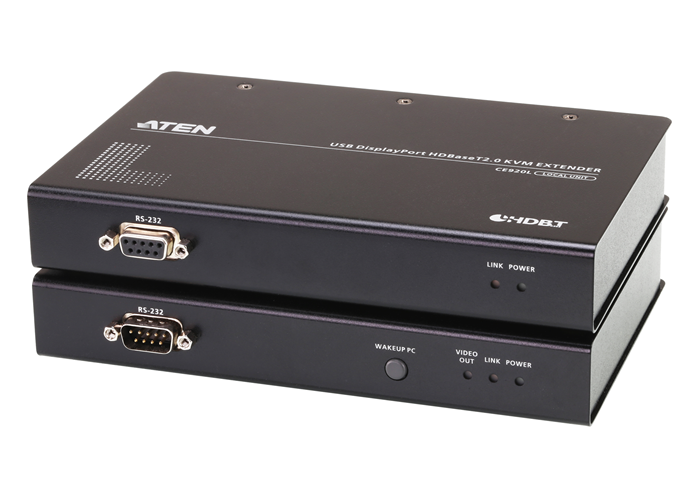

Aten CE920 4K DisplayPort HDBaseT 2.0 KVM Extender
Aten CE920 4K DisplayPort HDBaseT 2.0 KVM Extender
SKU:KVA-CE920-ATA-U
The Aten CE920 is a 4K DisplayPort HDBaseT 2.0 KVM Extender designed for remote workstations and extended distance connectivity. Featuring dual DisplayPort support, RS232 control, and Ethernet extension, it delivers seamless keyboard, video, and mouse control for IT professionals and system integrators.
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | Aten |
|---|---|
| Category | KVM Switch & Video |
| SKU | KVA-CE920-ATA-U |
| Availability | Out of Stock |
Overview
- The Aten CE920 is a professional-grade KVM extender designed to transmit keyboard, video, and mouse signals over extended distances using HDBaseT 2.0 technology. It supports 4K DisplayPort output and can operate in Long Reach mode, extending connectivity up to 150 metres at 1920 x 1080 resolution, making it ideal for organisations with distributed infrastructure.
The system operates as a transmitter/receiver pair, with the local unit connecting to your computer and peripherals, and the remote unit positioned at the distant workstation or control point. RS232 serial control and Ethernet extension capabilities provide additional connectivity options for legacy devices and network-dependent applications.
Designed for IT professionals and system integrators, the CE920 delivers reliable KVM extension without the complexity of traditional copper-based systems. Its compatibility with CE820 units allows organisations to build mixed-technology KVM infrastructures tailored to specific distance and resolution requirements.
Specifications
| Brand | Aten |
|---|---|
| Model | CE920 |
| Product Type | 4K DisplayPort HDBaseT 2.0 KVM Extender |
| Configuration | Transmitter (Local) and Receiver (Remote) units |
| Video Input/Output | DisplayPort |
| Maximum Resolution | 4K |
| Long Reach Mode Resolution | 1920 x 1080 |
| Maximum Extension Distance | 150m |
| Serial Control | RS232 |
| Network Extension | Ethernet |
| USB Support | USB Type-A keyboard and mouse |
| Audio Support | Microphone and speaker cables included |
| Included Cables | USB Type-A to Type-B, DisplayPort, microphone, speaker |
| Mounting | 2x mounting kits included |
| Power | 2x external power adapters included |
| Warranty | 24 months |
| Package Contents | 1x CE920L Local Unit, 1x CE920R Remote Unit, 1x microphone cable, 1x speaker cable, 1x USB Type-A to Type-B cable, 1x DisplayPort cable, 2x mounting kits, 2x power adapters, 1x user instructions |
Key Features
Ideal For
FAQs
What is the maximum distance the Aten CE920 can extend KVM signals?
The CE920 can extend KVM signals up to 150 metres at 1920 x 1080 resolution in Long Reach mode. At 4K resolution, the distance varies depending on configuration and cable quality.
Can I mix Aten CE920 units with CE820 units?
Yes, the CE920 is compatible with CE820 transmitter/receiver units, allowing you to build mixed-technology KVM infrastructures based on your distance and resolution requirements.
What video inputs and outputs does the CE920 support?
The CE920 uses DisplayPort for video input and output, supporting 4K resolution. In Long Reach mode, it can operate at 1920 x 1080 resolution over extended distances.
Does the CE920 support audio and serial device control?
Yes. The CE920 includes microphone and speaker cable support for audio, and features RS232 serial control for legacy devices such as rack PDUs, security systems, and industrial equipment.
What is included in the CE920 package?
The package includes a local transmitter unit (CE920L), remote receiver unit (CE920R), DisplayPort and USB cables, microphone and speaker cables, two mounting kits, two power adapters, and user instructions.
What warranty does Aten provide with the CE920?
The Aten CE920 includes a 24-month manufacturer's warranty covering defects in materials and workmanship.
How does HDBaseT 2.0 technology improve KVM extension?
HDBaseT 2.0 enables transmission of high-bandwidth video, USB, audio, and Ethernet signals over single Cat5e/6 cabling, reducing infrastructure complexity and cost compared to traditional multi-cable solutions.
Is the CE920 suitable for control room environments?
Yes. The CE920 is designed for control rooms, monitoring centres, and data centres where operators need to control remote equipment and systems from a central location across extended distances.
