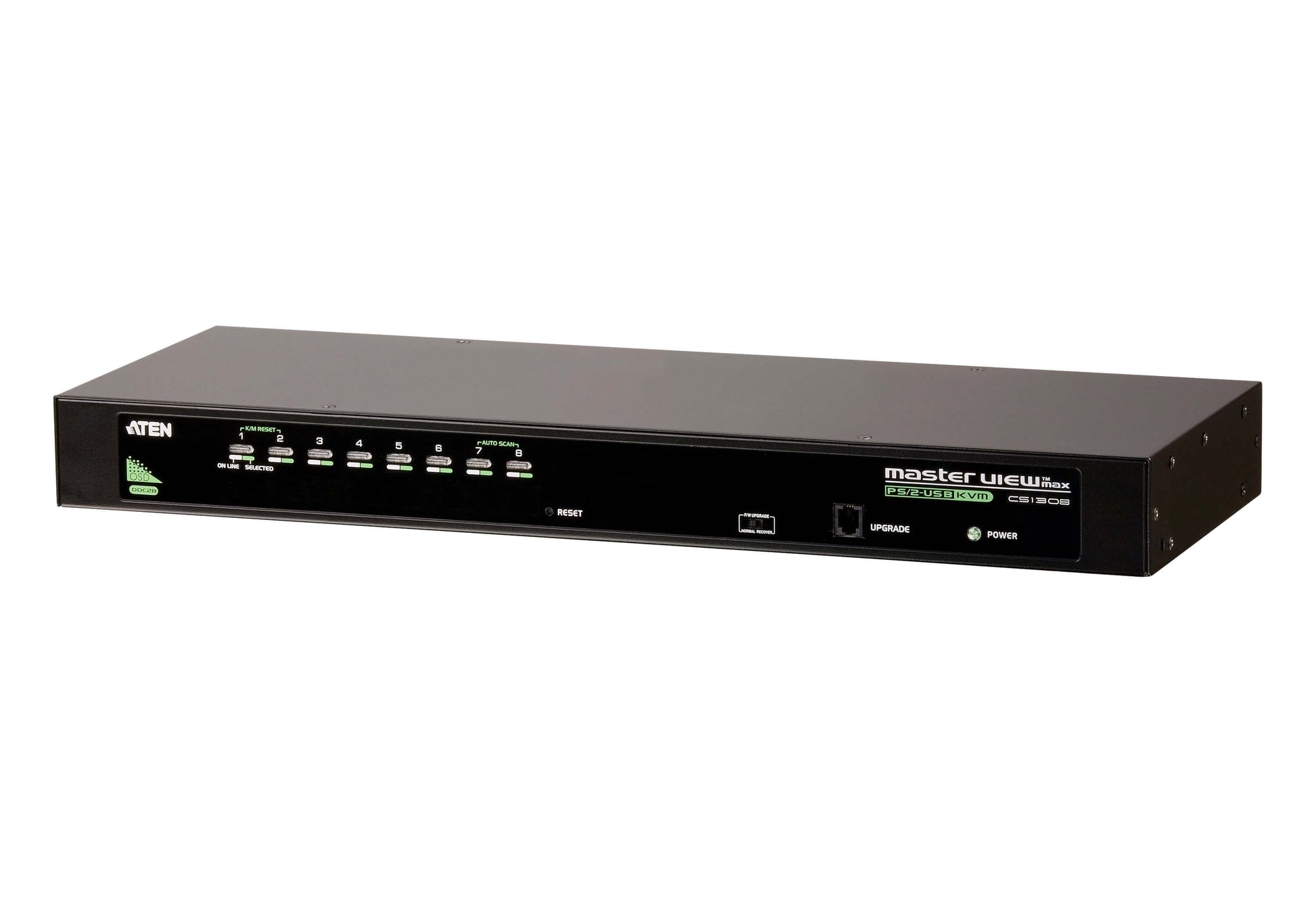

Aten CS1308-AT-U 8-Port Rackmount KVM Switch
Aten CS1308-AT-U 8-Port Rackmount KVM Switch
SKU:KVA-CS-1308
The Aten CS1308-AT-U is an 8-port rackmount KVM switch designed for centralised server and workstation management. It features dual PS/2 and USB interfaces, Video DynaSync technology, and cascadable design for controlling up to 64 computers, delivering efficient multi-system administration for IT environments.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Aten |
|---|---|
| Category | KVM Switch & Video |
| SKU | KVA-CS-1308 |
| Availability | Out of Stock |
Overview
- The Aten CS1308-AT-U is a professional-grade 8-port rackmount KVM switch designed for IT managers and system administrators who need to control multiple computers from a single console. With support for both PS/2 and USB peripherals, the switch automatically detects and adapts to your existing keyboard and mouse setup, eliminating compatibility issues.
Video DynaSync is a standout feature that prevents the common problem of display resolution mismatches during boot sequences and port switching. The switch supports resolutions up to 2048 x 1536 and includes DDC2B support for precise video quality. For larger deployments, cascade up to 2 levels to expand control to 64 computers across multiple switches.
Security is built in with two-level password protection, allowing up to four user profiles plus a separate administrator account. The auto-scan feature monitors selected computers, while hotkey-controlled access and a multilingual on-screen display menu provide flexible operation. The 1U rackmount design fits standard 19-inch racks, and hot-pluggable connections mean you can add or remove systems without powering down.
Specifications
| Brand | Aten |
|---|---|
| Model | CS1308-AT-U |
| Product Type | Rackmount KVM Switch |
| Number of Ports | 8 |
| Form Factor | 1U rackmount (19-inch rack) / desktop |
| Interface Type | Dual PS/2 and USB |
| Console Connections | 1x USB-PS/2 combo |
| Video Resolution | Up to 2048 x 1536 |
| Video Standard | DDC2B |
| Cascade Capability | Up to 2 levels (up to 64 computers with USB KVM cables) |
| Keyboard/Mouse Emulation | USB and PS/2 keyboard and mouse emulation |
| Platform Support | Windows 2000/XP/Vista, Linux, Mac, OS X, Sun |
| Computer Selection | Front panel pushbuttons, hotkeys, multilingual OSD menu |
| Security | Two-level password protection, up to 4 user profiles plus administrator |
| Features | Auto Scan, Auto PS/2 and USB detection, Hot-pluggable, Video DynaSync, Buzzer control, Firmware upgradeable |
| Software Required | No software installation required |
| Warranty | 12 months |
| Compatible Cable Types | 2L-5201P, 2L-5202P, 2L-5203P, 2L-5206P, 2L-5202U, 2L-5203U, 2L-5205U |
Key Features
Ideal For
FAQs
Can I cascade multiple Aten CS1308 switches together?
Yes, the CS1308 supports cascading up to 2 levels, which allows you to control up to 64 computers in total. Cascading requires USB KVM cable set connections. Standard PS/2 connections do not support the cascade function.
Does the KVM switch work with both PS/2 and USB keyboards and mice?
Yes, the CS1308 features dual interface support and automatically detects whether your console peripherals are PS/2 or USB. It also supports USB keyboard emulation for PC, Mac, and Sun platforms.
What is Video DynaSync and why does it matter?
Video DynaSync is Aten's exclusive technology that eliminates display problems during boot-up and when switching between ports. It automatically optimises video resolution for each computer, ensuring consistent and reliable video output without manual adjustment.
Can I add or remove computers without powering down the switch?
Yes, the CS1308 is hot-pluggable, which means you can connect or disconnect computers without shutting down the switch or disrupting other connected systems.
What operating systems does the Aten CS1308 support?
The switch is multiplatform compatible and supports Windows 2000/XP/Vista, Linux, Mac, OS X, and Sun workstations. No software installation is required on any platform.
Does the CS1308 include security features?
Yes, the switch includes two-level password security with support for up to 4 user profiles plus a separate administrator profile. Only authorised users can view and control connected computers.
What cable types are compatible with the CS1308?
Compatible cables include 2L-5201P, 2L-5202P, 2L-5203P, 2L-5206P (PS/2), and 2L-5202U, 2L-5203U, 2L-5205U (USB). The switch comes with one custom KVM cable included.
Is software installation required to use the CS1308?
No, the CS1308 is plug-and-play and requires no software installation. Computers boot normally even when console focus is elsewhere, thanks to keyboard and mouse emulation.
