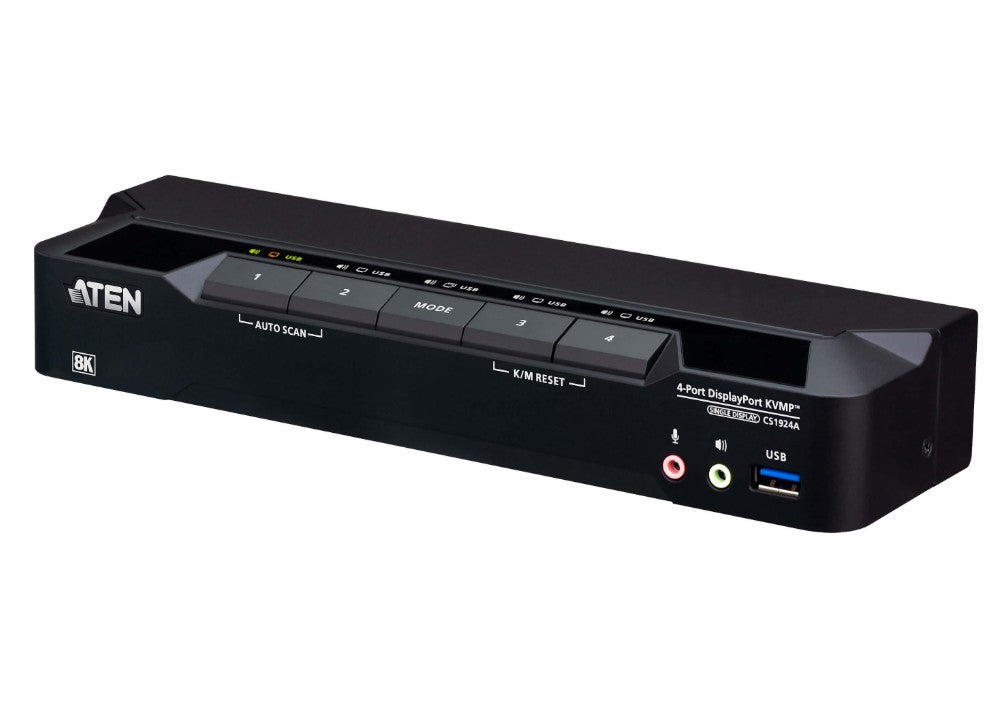

Aten CS1924A 4-Port USB 3.0 8K DisplayPort KVM Switch
Aten CS1924A 4-Port USB 3.0 8K DisplayPort KVM Switch
SKU:KVA-CS-CS1924A
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | Aten |
|---|---|
| Category | KVM Switch & Video |
| SKU | KVA-CS-CS1924A |
| Availability | In Stock |
Overview
- The Aten CS1924A is a professional-grade desktop KVM switch that consolidates control of up to four computers into a single keyboard, mouse, and monitor setup. Designed for power users who require ultra-high-resolution video output, it supports resolutions up to 8K, making it ideal for content creators, engineers, and financial professionals who depend on detailed visual work.
This KVM switch simplifies workspace management by eliminating the need for multiple keyboards, mice, and monitors. USB 3.0 peripheral sharing allows seamless switching of printers, external drives, and other devices between computers without physical reconnection. The included cables and power adapter ensure you can be productive immediately upon installation.
Flexibility is built into the design with multiple control options: pushbutton selection on the unit itself, a dedicated remote port selector, keyboard hotkeys, mouse-based selection, and RS-232 command support for automation and integration into larger IT environments. For users requiring dual-monitor setups, two CS1924A units can be daisy-chained together for expanded multi-display control through a single connection point.
Specifications
| brand | Aten |
|---|---|
| model | CS1924A |
| product_type | Desktop KVM Switch |
| ports | 4 computers |
| video_interface | DisplayPort |
| keyboard_mouse_interface | USB 3.0 |
| maximum_resolution | 7680 × 4320 @ 60 Hz |
| supported_resolutions | 7680 × 4320 @ 60 Hz5120 × 2880 @ 60 Hz4096 × 2160 @ 120 Hz |
| daisy_chain | Supported (dual-display setups) |
| usb_peripheral_sharing | Yes |
| computer_selection_methods | PushbuttonsRemote port selectorKeyboard hotkeysMouse controlRS-232 commands |
| included_accessories | DisplayPort cablesUSB cablesPower adapter |
| warranty | 24 months |
Key Features
Ideal For
FAQs
Can I control more than four computers with the CS1924A?
The CS1924A is a 4-port switch controlling up to four computers. For larger environments, you can daisy-chain two units together to expand capabilities whilst maintaining control through a single connection.
What resolutions does the CS1924A support?
The CS1924A supports up to 8K resolution (7680 × 4320 @ 60 Hz), as well as 5120 × 2880 @ 60 Hz and 4096 × 2160 @ 120 Hz, making it suitable for ultra-high-definition applications.
Are cables included with this KVM switch?
Yes, all DisplayPort and USB cables plus the power adapter are included, allowing you to set up and start using the switch immediately.
Can I share USB peripherals like printers and external drives?
Yes, the CS1924A features USB 3.0 peripheral sharing, allowing you to connect devices like printers, external drives, and other USB peripherals that can be accessed from any selected computer.
What are the different ways to switch between computers?
You can switch computers using pushbuttons on the unit, a remote port selector, keyboard hotkeys, mouse control, or RS-232 commands for automation integration.
Is this suitable for dual-monitor setups?
Yes, the CS1924A supports daisy-chaining with a second unit to enable dual-display control through a single connection, ideal for advanced multi-monitor workflows.
What is the warranty on the CS1924A?
The Aten CS1924A comes with a 24-month manufacturer warranty.
