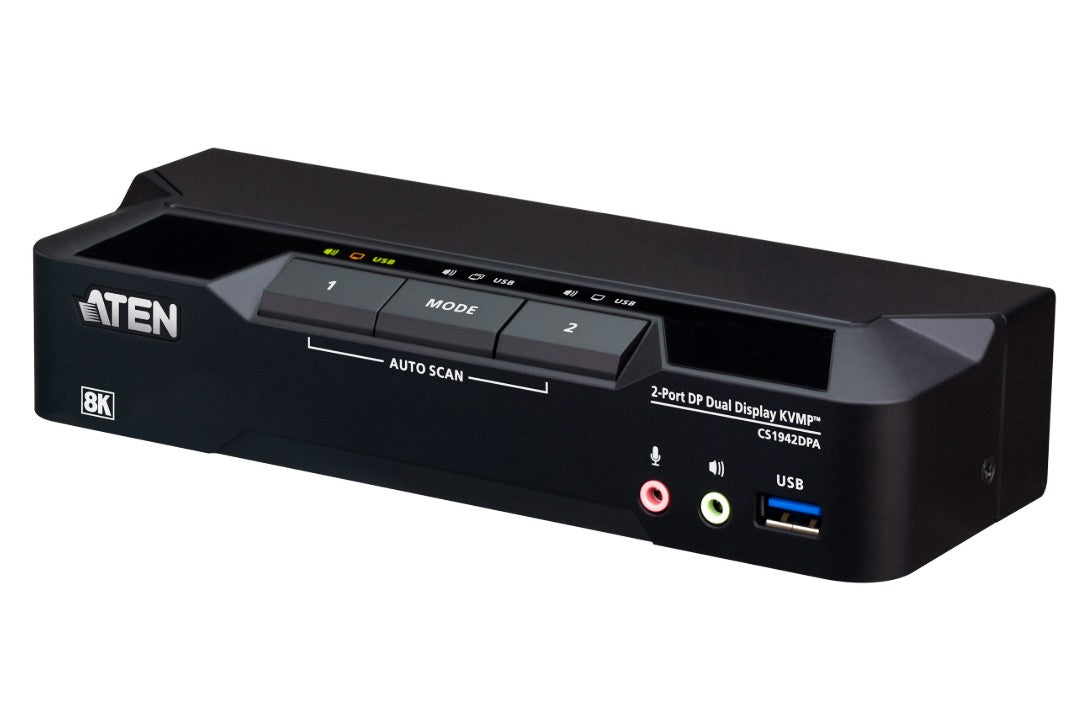

Aten CS1942DPA 2-Port USB 3.0 8K DisplayPort KVM Switch
Aten CS1942DPA 2-Port USB 3.0 8K DisplayPort KVM Switch
SKU:KVA-CS1942DPA-AT-U
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | Aten |
|---|---|
| Category | KVM Switch & Video |
| SKU | KVA-CS1942DPA-AT-U |
| Availability | In Stock |
Overview
- The Aten CS1942DPA is a professional-grade 2-port desktop KVM switch designed to streamline multi-computer, multi-display workflows. It supports up to 8K resolution through DisplayPort 1.4 and enables dual-display output per connected source, allowing operators to control two computers from a single keyboard, mouse, and audio setup.
Key business benefits include eliminating desk clutter by consolidating multiple keyboards and mice, reducing cable management complexity, and enabling seamless switching between computers via pushbuttons, hotkeys, or remote control. Independent switching of KVM, USB, and audio provides flexibility in how peripherals and content are routed.
The switch supports Windows, macOS, and Linux environments with multilingual keyboard mapping, making it suitable for global teams. All necessary cables—DisplayPort, USB 3.0, microphone, and speaker—are included, ensuring plug-and-play installation without additional purchases.
With firmware upgrade capability, the device is future-proofed against emerging display standards and compatibility requirements.
Specifications
| Ports | 2 × DisplayPort input |
|---|---|
| Display Output | Dual-display per computer |
| Maximum Resolution | 7680 × 4320 @ 60 Hz; 5120 × 2880 @ 60 Hz; 4096 × 2160 @ 240 Hz |
| DisplayPort Version | 1.4 compliant |
| USB Ports | 2 × USB 3.1 Gen 1 (SuperSpeed 5 Gbps) |
| USB Cables | 2 × USB 3.0-A to USB 3.0-B (1.8 m) |
| DisplayPort Cables | 4 × DisplayPort (1.5 m) |
| Audio Connections | Microphone and speaker cables included (1.8 m each) |
| Video Features | DP++ (Dual-Mode) support; Multi-Stream Transport (MST); HDCP compliant; HDR 10+ support; HD audio support |
| Switching Methods | Pushbuttons, hotkeys, remote port selector (included), RS-232 commands, mouse emulation |
| Independent Switching | KVM, USB, and audio |
| Keyboard Support | English, Japanese, French, German (multilingual keyboard mapping) |
| Platform Support | Windows, macOS, Linux |
| Power Supply | External power adapter (included) |
| Hot-Plugging | Supported |
| Firmware | Upgradable |
| Warranty | 24 months |
Key Features
Ideal For
FAQs
What resolutions does the Aten CS1942DPA support?
The switch supports up to 8K resolution at 7680 × 4320 @ 60 Hz, 5120 × 2880 @ 60 Hz, and 4096 × 2160 @ 240 Hz, depending on your display and graphics source capabilities.
Can I use this KVM switch with Mac and Windows computers together?
Yes, the CS1942DPA supports Windows, macOS, and Linux multiplatform environments. It includes multilingual keyboard mapping and can emulate Mac keyboards when needed.
What cables are included in the package?
The package includes 4 × DisplayPort cables (1.5 m), 2 × USB 3.0 Type-A to Type-B cables (1.8 m), 2 × microphone cables (1.8 m), 2 × speaker cables (1.8 m), a remote port selector, and a power adapter.
Does the switch support dual-display output?
Yes, the CS1942DPA supports dual-display output per connected computer using DisplayPort Multi-Stream Transport (MST). Monitors must be DisplayPort 1.4 daisy-chaining capable or used with a powered MST hub.
Can I switch the KVM, USB, and audio independently?
Yes, the switch supports independent switching of KVM, USB, and audio, allowing you to route different peripherals and audio sources separately if needed.
Is the firmware upgradable?
Yes, the firmware is upgradable, allowing for performance optimisation and compatibility improvements as standards and requirements evolve.
What is the USB speed specification?
The switch features two USB 3.1 Gen 1 ports with SuperSpeed 5 Gbps transfer rates, enabling fast data transfer between connected devices.
What warranty does the Aten CS1942DPA come with?
The switch includes a 24-month manufacturer's warranty covering defects in materials and workmanship.
